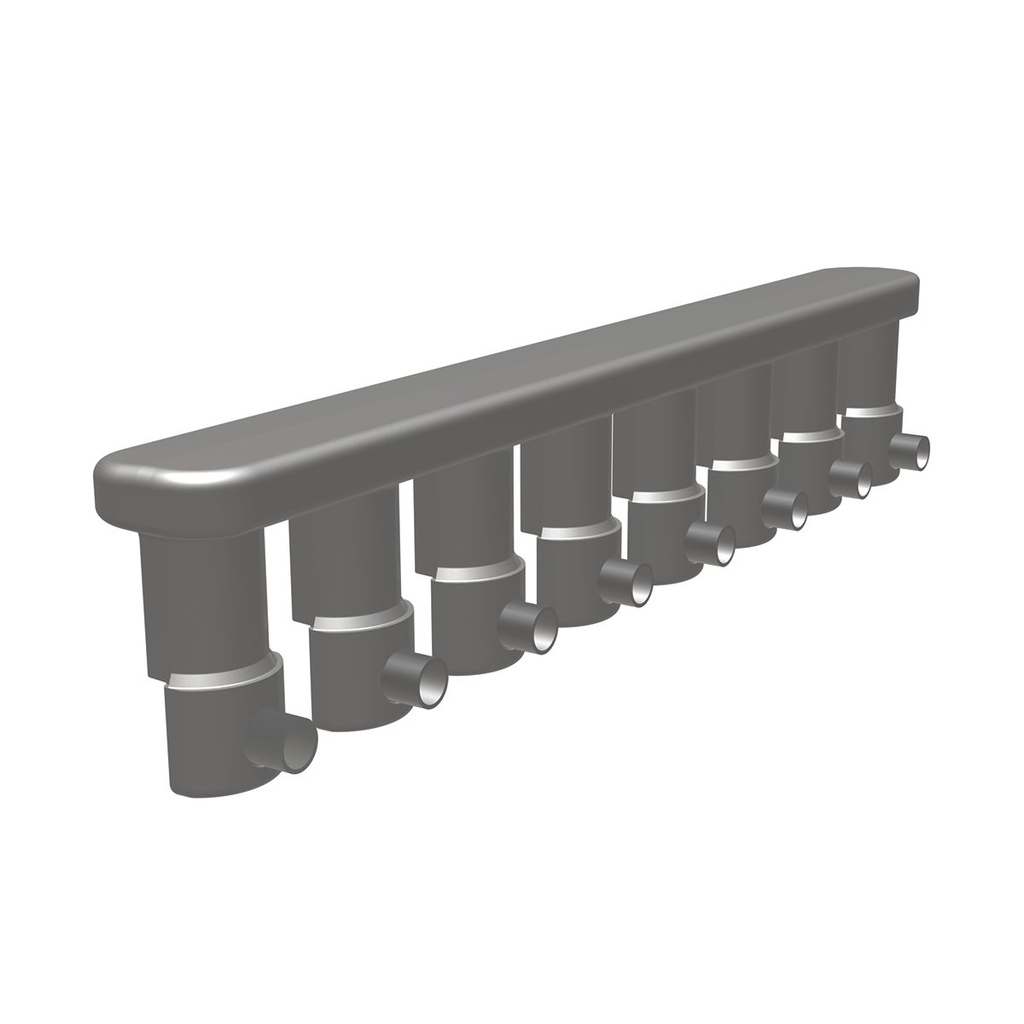

Product image for Burndy RDM428 URD Mole, #4 Str - 250 kcmil Al or Cu 300 kcmil - 350 kcmil , 600 Volt Rating, 581 in L
Image thumbnail 0
Image thumbnail 1
Email

Burndy RDM428 URD Mole, #4 Str - 250 kcmil Al or Cu 300 kcmil - 350 kcmil , 600 Volt Rating, 581 in L

Manufacturer: Burndy | Catalog # RDM428 | Cooper Electric Part # 532253
$155.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
URD Mole, #4 Str. - 250 kcmil Al or Cu 300 kcmil - 350 kcmil , 600 Volt Rating, 5.81 in L.

Technical Information

Applications
Aluminum and Copper, Direct Burial or use in Enclosures
Conductor Size
4 AWG-250 kcmil
Connection Type
Tap
Insulation Type
Rubber
Material
Aluminum
Number of Ports
4
Type
RDM-28

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810180006
GTiN
00781810180006
Product UPC
78181018000

Dimensions

Height
12 Inch
Length
5.81 Inch
Overall Length
5.81 in
Width
9 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • Type RDM-28 MOLE connectors are an economical, insulated, submersible service junction suitable for direct burial or for use in enclosures
  • Disconnectable Joints allow additions of new services without disturbing previous installations
  • Taping is eliminated, Heat Shrink or Force-Fit Rubber Sleeves insulated each joint, Rubber is used to insulate the MOLE body
  • Removable sealing covers are supplied on all outlets but two
  • REA Listed Tap Kits, including HYLUG, Hardware and Sleeve are ordered separately
