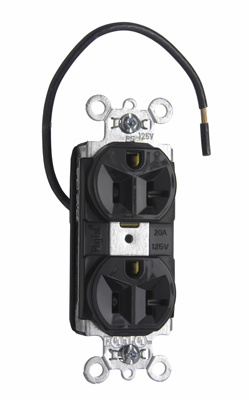

Product image for P&S PT5362SC 20A/125V SPLT CIRC DUP
Image thumbnail 0
Image thumbnail 1
Email

P&S PT5362SC 20A/125V SPLT CIRC DUP

Manufacturer: Pass & Seymour / Legrand | Catalog # PT5362SC | Cooper Electric Part # 528385
$18.36/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
PlugTail® Split Circuit Spec Grade Receptacles, 20A, 125A

Technical Information

Amperage
20 Amp
Applications
For Commercial Applications
Capacity
Duplex
Conductor Size
12 AWG
Contact Material
Brass
Dielectric Strength
2000 V
Grade
Federal Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.5 L x .625 W x 3.281 H In
Temperature Rating
-40 degrees C
Type
Split Circuit
Voltage
125 Volt
Wire Length
6 in
Wire Size
12 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007000214
Color
Brown
GTiN
00785007000214
Product Series
PlugTail
Product UPC
78500700021
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
