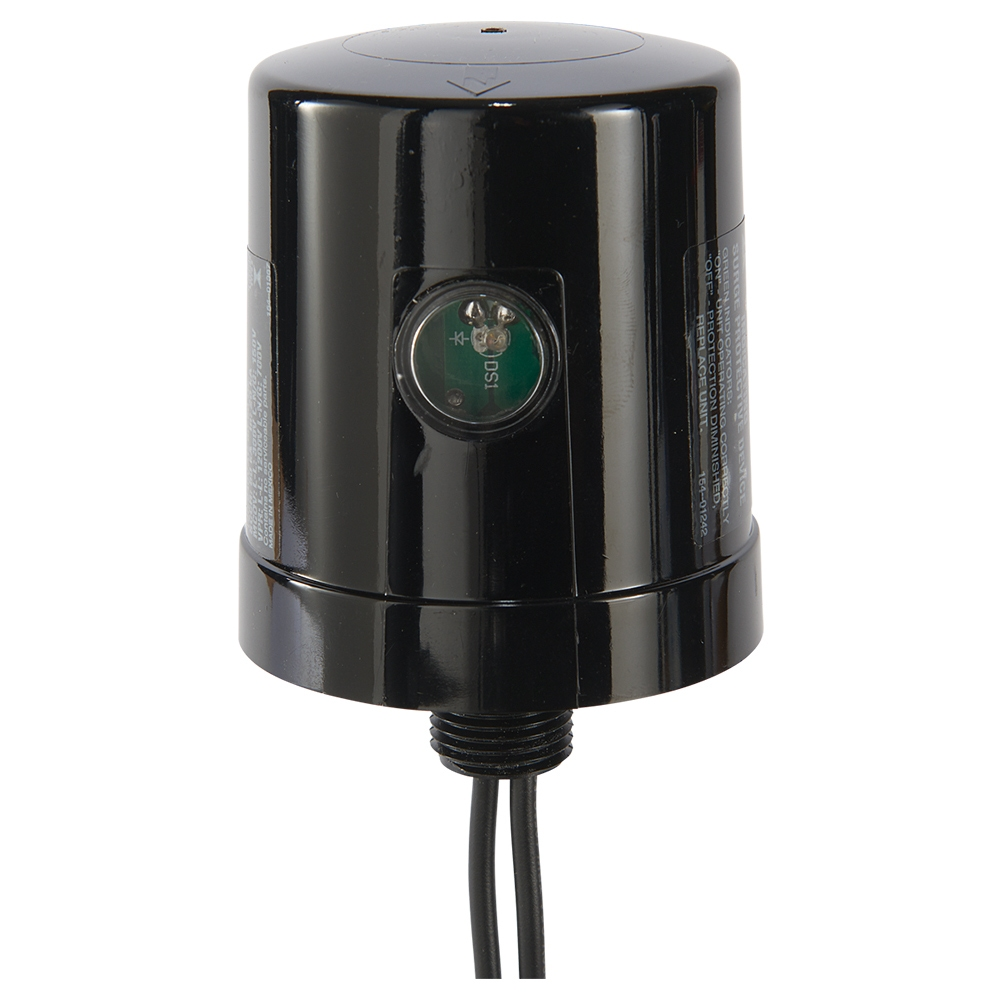

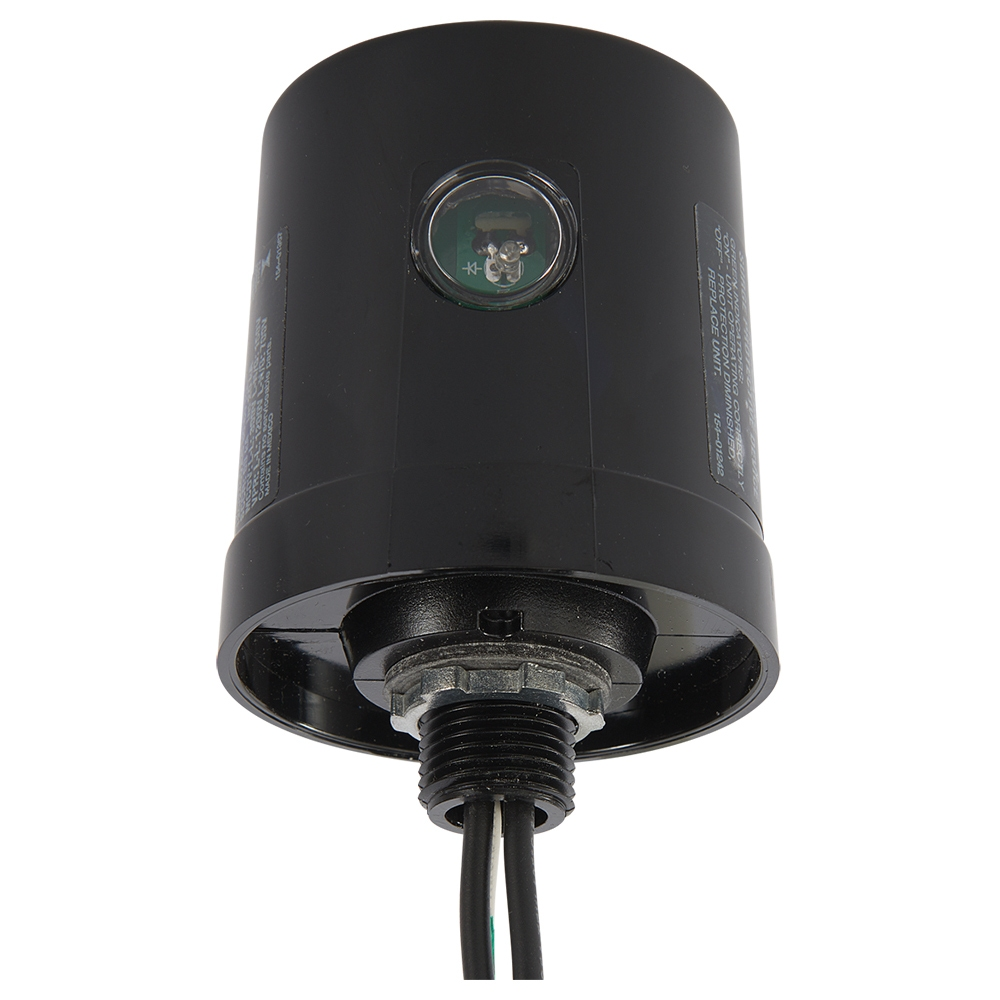

Product image for Intermatic AG6503C3 347/600 VAC 3-Pole Surge Protective Device
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Intermatic AG6503C3 347/600 VAC 3-Pole Surge Protective Device

Manufacturer: Intermatic, Inc | Catalog # AG6503C3 | Cooper Electric Part # 528197
$273.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.

Technical Information

Applications
Outdoor - Irrigation Equipment, Farm Equipment, Pumps, Lighting Fixtures, Traffic Signaling Devices, HVACR Controls, Motors
Connection Type
18 IN Lead
Enclosure Rating
4
Enclosure Type
Type 4
Input Voltage
347/600 V
Material
PolyCarbonate
Max Operating Temperature
185 degrees F
Min Operating Temperature
-31 degrees F
Nominal Discharge Current
20 kA
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
-13 to 140 degrees F
Size
1/2 IN, 12.7 MM
Standard
CSA - UL 1449 3rd Edtion
TC Connection
18 in Lead
Type
3-Pole, 3-Phase
Voltage
347/600 Volt
Wire Length
457.2 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275124493
Color
Black
GTiN
00078275124493
Housing Material
Polycarbonate
Product Series
AG
Product UPC
07827512449

Dimensions

Height
4.188 Inch
Warranty Length
1 yr

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Six modes of protection
  • TPMOV® surge protection technology
  • Green LED protection indicator
  • Type 4X watertight, plastic enclosure for outdoor installations
  • UV-resistant polycarbonate housing
  • 1?2\" threaded nipple for 7?8\" nominal conduit knockout
  • 1-year product warranty
  • UL Listed to ANSI/UL 1449 5th edition
  • NA
