Square D ABE7R16T210 16-Channel Output Sub Base

Manufacturer: Square-D / Schneider | Catalog # ABE7R16T210 | Cooper Electric Part # 527874
$914.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

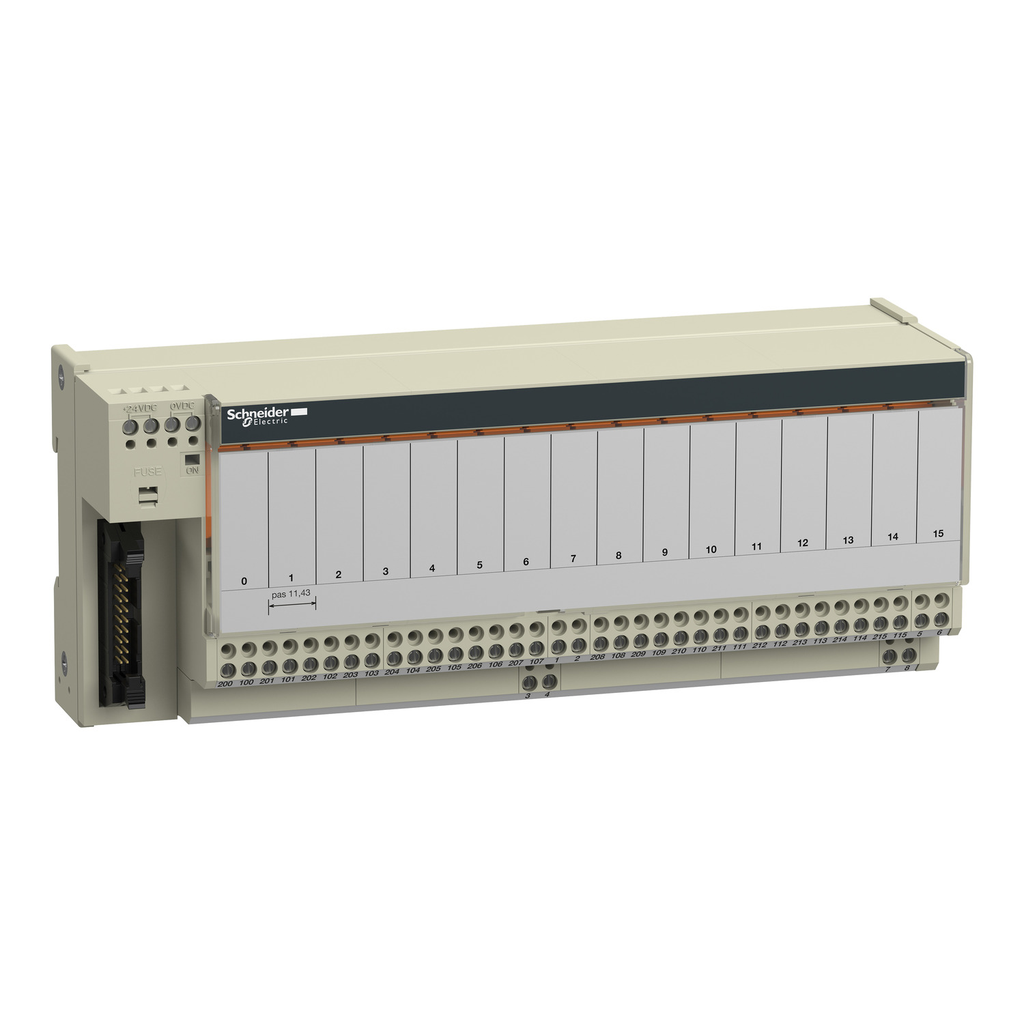

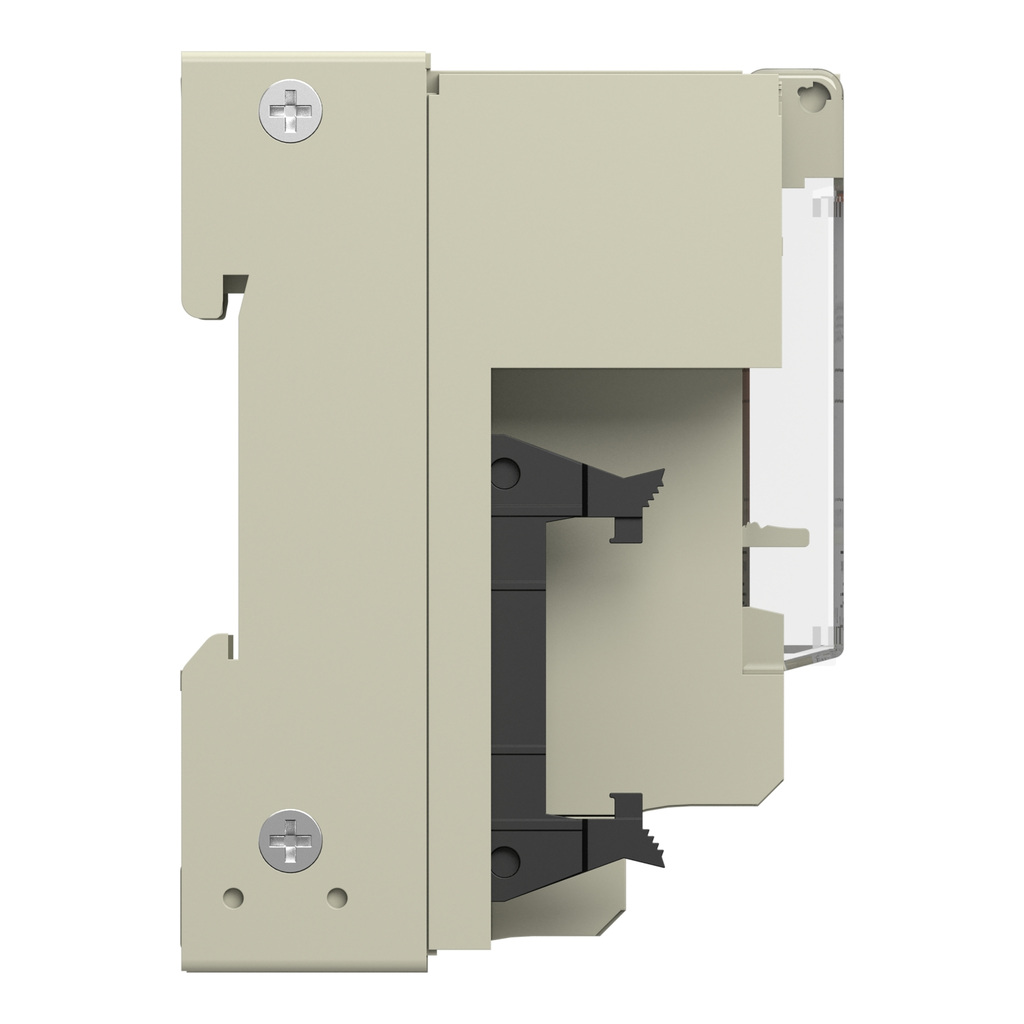

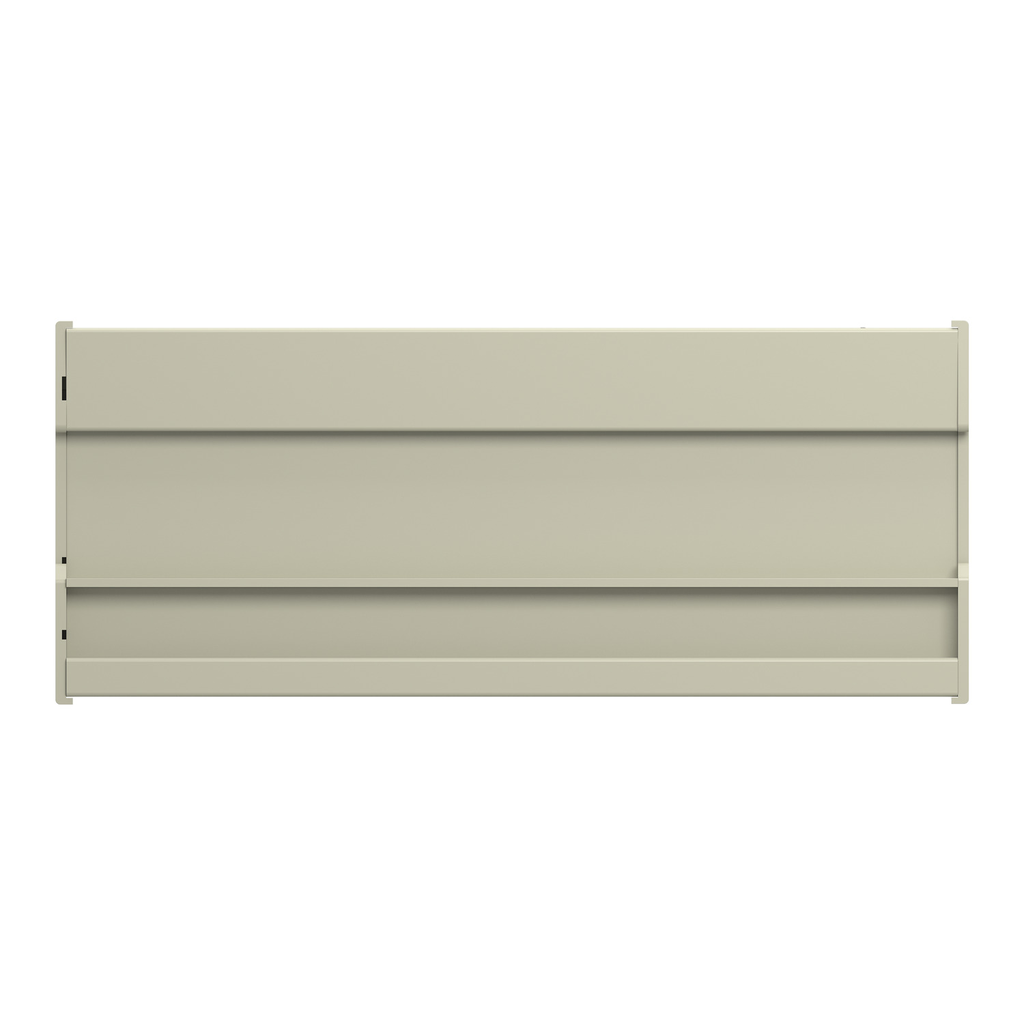

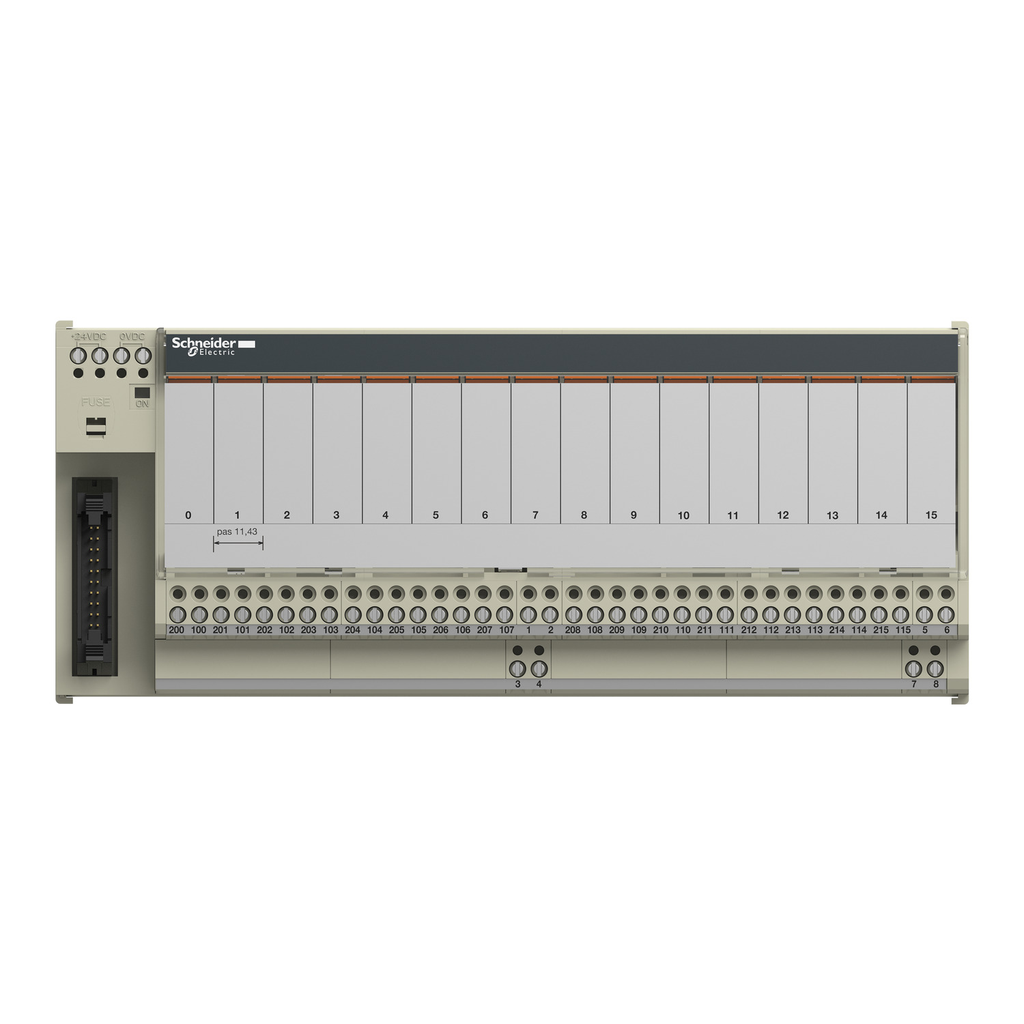

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has normally opened contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 0.735kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S21 plug-in relay. The fixing is done by clips (35mm DIN rail) and screws (surface mount with kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Technical Information

Applications
ABR7S21
Capacity
16 CHANNELS
Enclosure
IP2X CONFORMING TO IEC 60529
Net Weight
0.735 kg
Number of Channels
16
Operating Temperature
-5-60 degrees C IEC 61131-2
Power Supply
DC
Storage Temperature
-40-80 degrees C IEC 61131-2
Temperature Rating
23 to 140 F
Type
Sub-base with plug-in electromechanical relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ADVANTYS

General Product Info

12-Digit UPC
389110644633
GTiN
03389110644630
Product UPC
78590116486
Weight
0.735 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,DNV,EAC,GL,UL
Country of Origin
Latvia
Ambient Air Temperature For Storage
  • -40-80 °C IEC 61131-2
US Rated Supply Voltage
  • 19...30 V IEC 61131-2
IP Degree Of Protection
  • IP2X conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Resistance To Radiated Fields
  • 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Installation Category
  • II IEC 60664-1
Carbon Footprint Of The Installation Phase A5
  • 0.0088444746
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.2 kg CO2 eq.
  • 0.1809713449
Status Led
  • 1 LED per channel (Green) channel status
  • 1 LED (Green) power ON
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 6 kg CO2 eq.
  • 6.2077876863
UI Rated Insulation Voltage
  • 2000 V terminals/mounting rails
  • 300 V coil circuit/contact circuits IEC 60947-1
Fixing Mode
  • by clips (35 mm symmetrical DIN rail)
  • by screws (solid plate with fixing kit)
Vibration Resistance
  • 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 1 034 kg CO2 eq.
  • 1034.4
Resistance To Fast Transients
  • 2 kV level 3 IEC 61000-4-4
Resistance To Electrostatic Discharge
  • 4 kV contact) level 3 IEC 61000-4-2
  • 8 kV air) level 3 IEC 61000-4-2
  • 8 kV air) leve
Carbon Footprint Of The Distribution Phase A4
  • 0.0905746092
  • 0.1 kg CO2 eq.
Tightening Torque
  • 0.6 N.m flat Ø 3.5 mm
Short Circuit Protection
  • 1 A internal fuse, 5 x 20 mm, fast blow PLC end)
Shock Resistance
  • 15 gn 11 ms IEC 60068-2-27
Resistance To Incandescent Wire
  • 750 °C IEC 60695-2-11
Ambient Air Temperature For Operation
  • -5-60 °C IEC 61131-2
