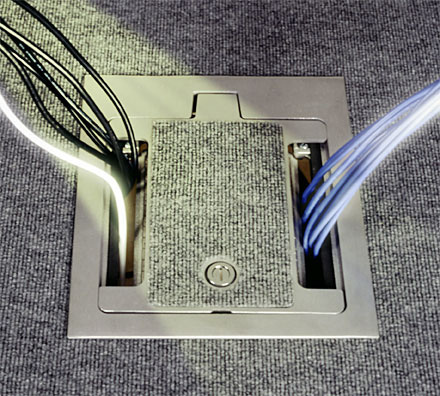

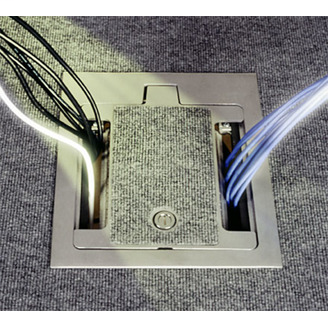

Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

Wiremold RFB9 14-3/4 x 12-5/8 x 4-1/8" 9-Gang Steel Rectangular Recessed Floor Box

Manufacturer: The Wiremold Co | Catalog # RFB9 | Cooper Electric Part # 52132

$354.37/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
The RFB9 Series Floor Boxes are excellent solutions for providing power, communications, and audio/video services to above grade and on-grade floors, in open space areas. The RFB9 cover assemblies are UL Listed to U.S. and Canadian safety standards for tile, terrazzo, carpet and wood covered concrete floors. Also through the use of the RFB119-PAN assembly, the RFB9 series floor boxes can be installed in polished concrete and terrazzo floor applications. The RFB9 Series have many unique applications, some of which are schools, auditoriums, convention center ballrooms, exhibition halls, and institutional facilities.

Technical Information

Applications
Commercial
Cable Entry
knockouts
Capacity
Nine-gang
Material
Steel
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776030044
Construction
Assembled
GTiN
00786776030044
Product Series
RFB9 AV Floor Box
Product UPC
78677603004

Certifications and Compliance

Certifications
CULUS,NAFTA,ROHS
Country of Origin
Mexico
Features
  • Integral design component that prevents water, dirt, and debris from entering power and communication compartments.
  • UL Listed to U.S. and Canadian safety standards for tile, terrazzo, carpet, and wood covered concrete floors. RFB9 cover assemblies meet UL requirements under UL514A for scrub water exclusion.
  • Heavy Duty Cover Assembly will accept loads up to 3,000 lbs. Provides added protection for most applications.
  • RFB9 has 9 gangs to accept both power, communication and audio/video devices. Reduces installation cost by eliminating the need for multiple floor boxes to provide the necessary services to one location.
  • Lightweight slab on-grade version. Special fusion bonded epoxy corrosion resistant coating allows the box to be installed on-grade without the weight of cast iron.
  • Accepts standard industry sized device plates and industry standard sectional device plates. Allows for quick and flexible installation of both power and communication devices.
  • Multiple trade size knockouts from 3/4'' to 1 1/4''. Allows for most conduit schemes which saves time and money during installation.
  • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use.
  • Accepts a wide variety of Extron Architectural Series video and audio products including computer video interfaces, twisted pair transceivers, and modular A/V connector plates.
  • Whenever you see the TopGuard protection icon on any Wiremold product, youll know it meets and exceeds UL scrub water exclusion requirements for tile and carpet floors.
  • Extron Electronics is a leading manufacturer of audio visual system integration products. For additional information on Extron products, please contact your local Extron Dealer.
Certifications
  • cULus Listed
  • RoHS Compliant
  • NAFTA Compliant
