Square D 9001KR16H13 30 mm 240 VAC Maintained 1NO 1NC Red Lens Plastic Bezel Turn-to-Release Push Button

Manufacturer: Square-D / Schneider | Catalog # 9001KR16H13 | Cooper Electric Part # 517873
$189.63/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
1 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

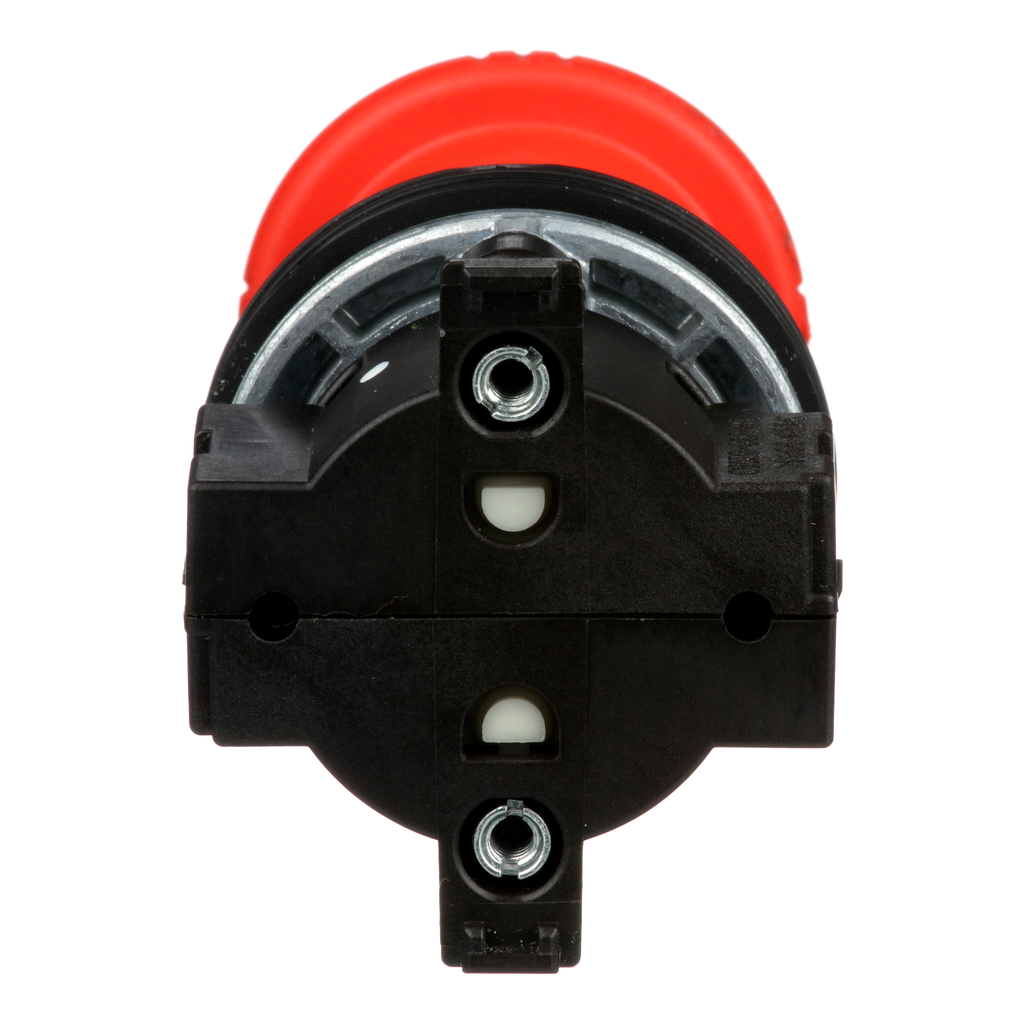

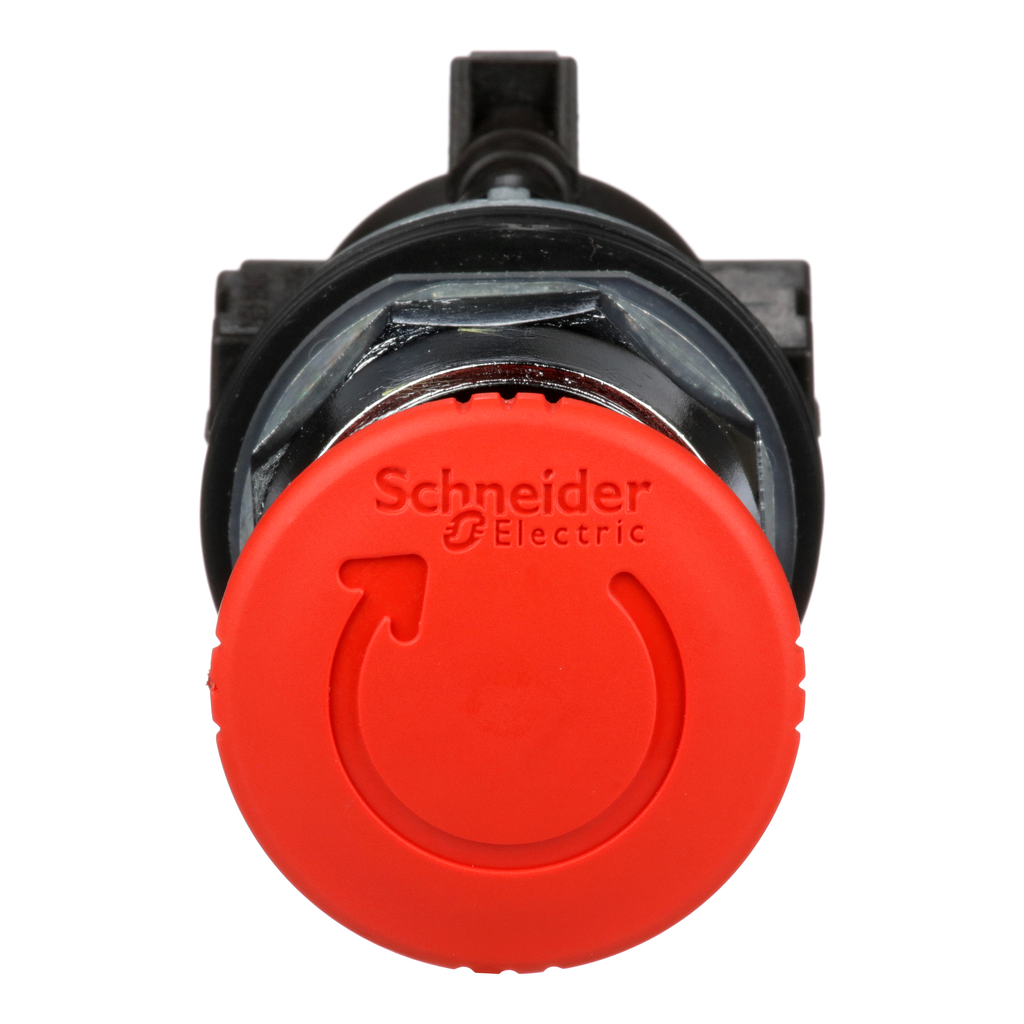

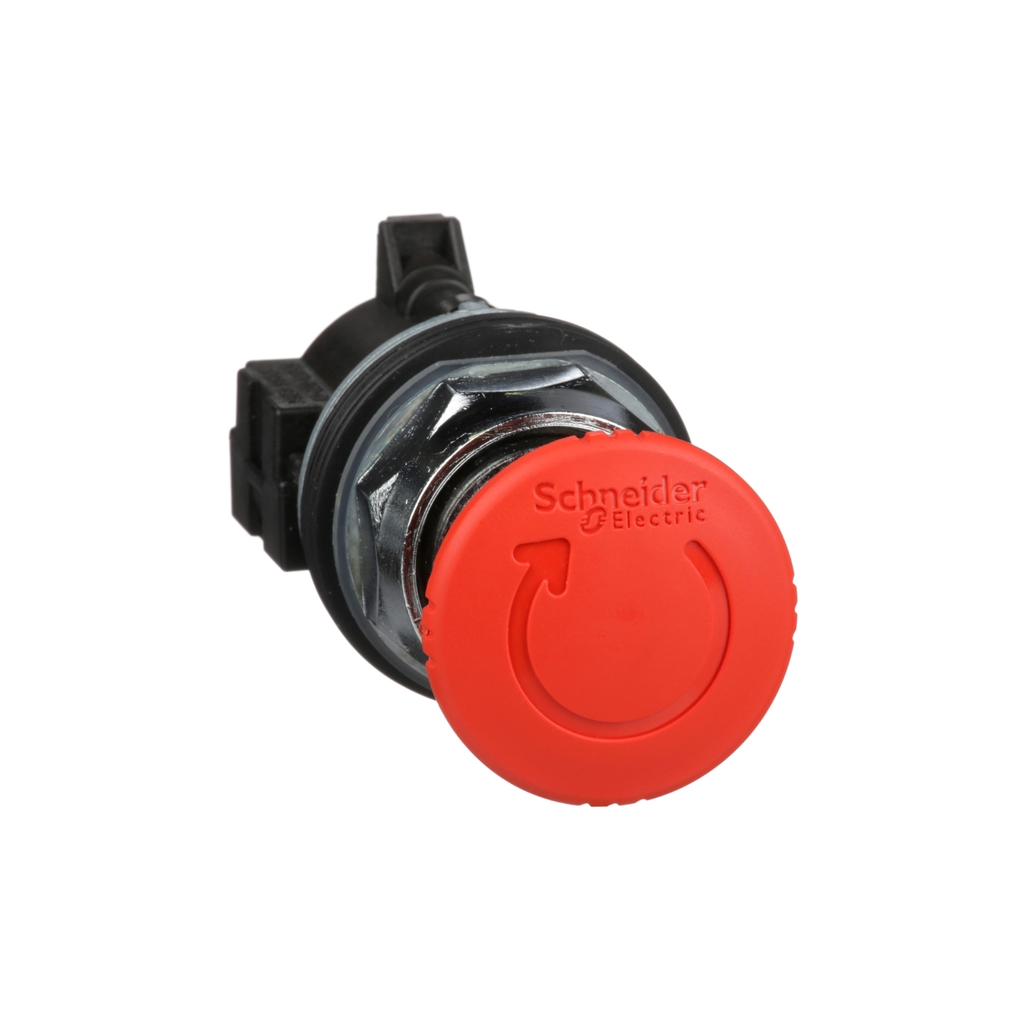

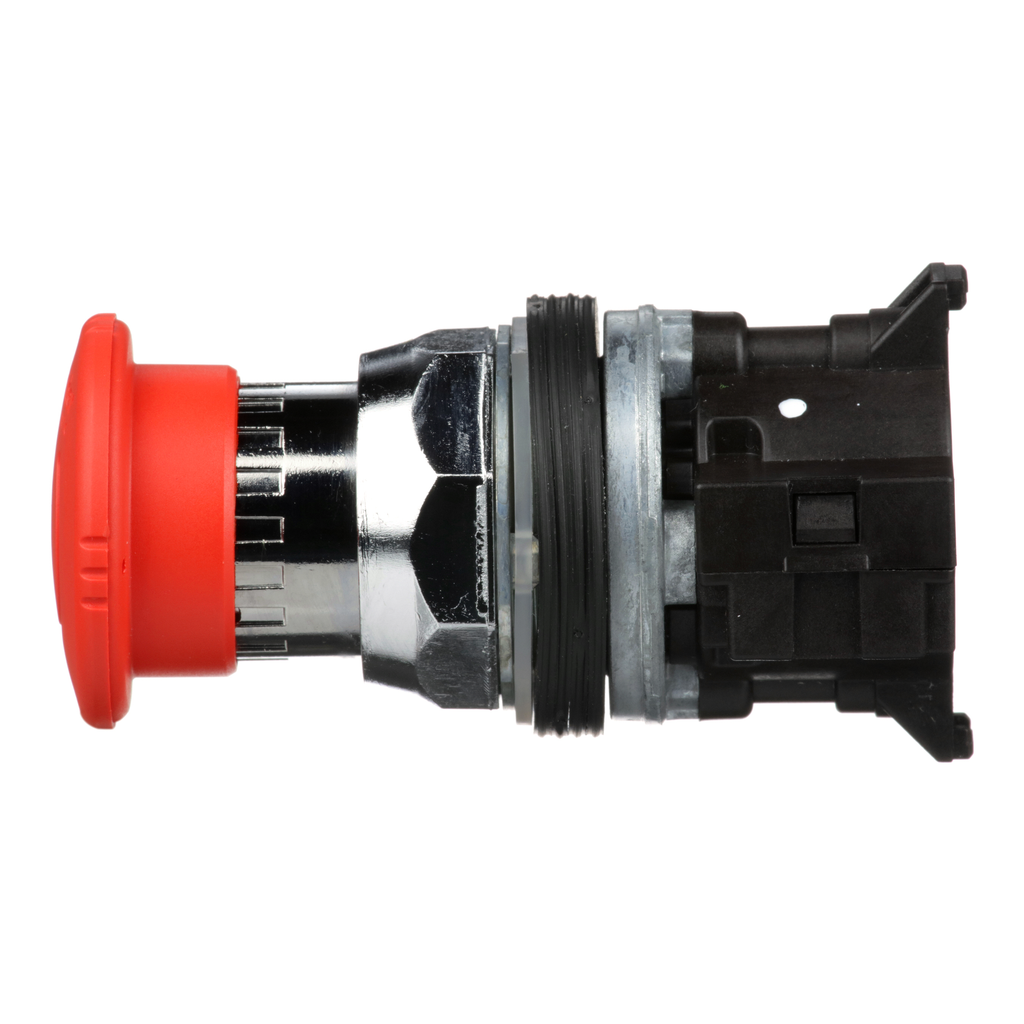

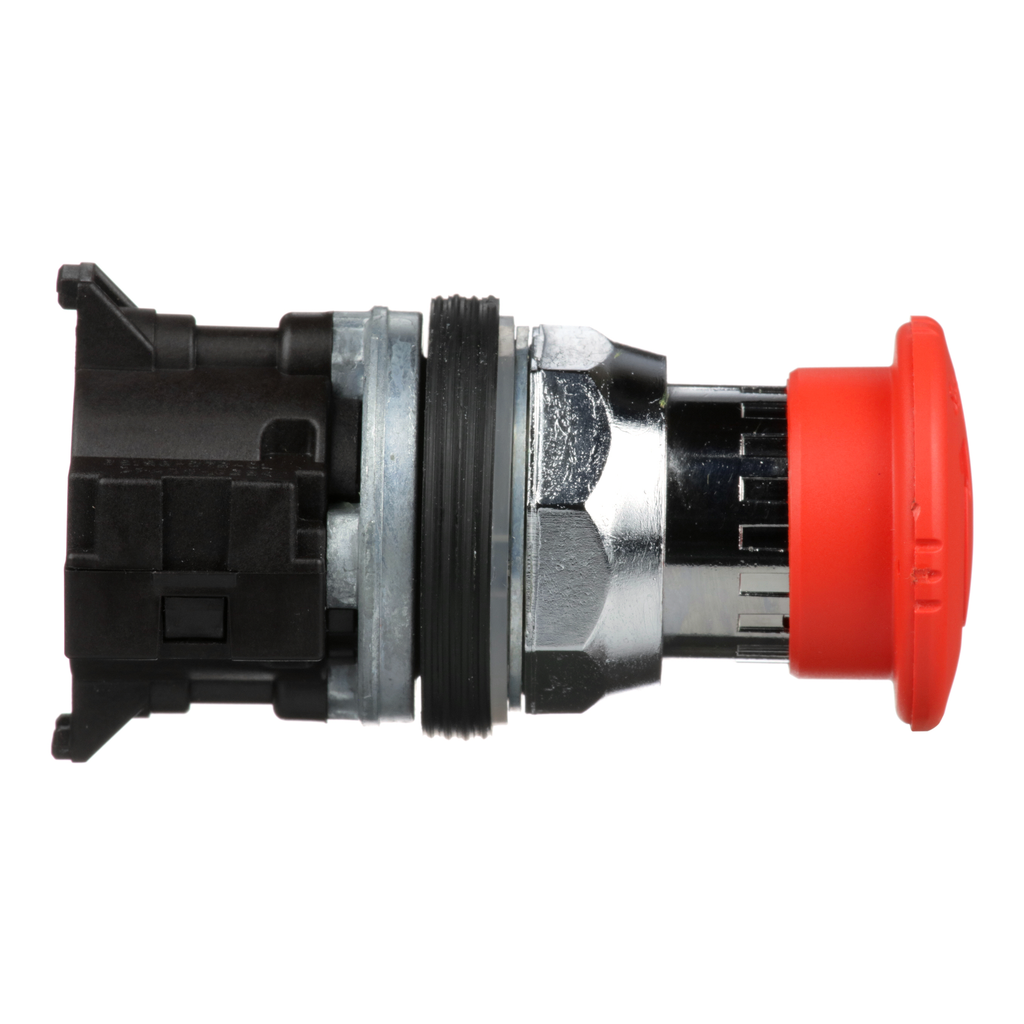

This Harmony 9001K, emergency stop / shutdown 30mm mushroom head modular red push button has 2 positions, operates with a latched turn to release mechanism. It has a chromium-plated metal bezel, has a chromium-plated metal bezel, has 1 x NO + 1 x NC contacts and uses screw-clamp terminals. This emergency stop / shutdown button is also called EMS (Emergency Machine Stop) and EMO (Emergency Off). It is easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Technical Information

Action
MAINTAINED - TRIGGER ACTION - TURN-TO-RELEASE
Actuator
2 positions
Amperage
10 Amp
Bezel Material
Metal
Contact Configuration
1 NC + 1 NO
Contact Material
Silver Alloy
Enclosure
NEMA 1/2/3/3R/4/6/12/13
Indicator
RED
Net Weight
0.141 kg
Operating Temperature
-25-70 Adegrees C
Size
30 mm
Standard
CSA C22.2 No 14,IEC 60204-1, For Emergency Stop Devices If Used With Emergency Stop Legend Plate Type 9001KN,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,ISO 13850, For Emergency Stop Devices If Used With Emergency Stop Legend Plate Type 9001KN,JIS C 4520,JIS C 852,UL 60947-5-5
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Emergency stop push-button
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001K

General Product Info

12-Digit UPC
785901578819
Color
Red
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901578819
Product UPC
78590157881
Weight
0.141 kg

Dimensions

Height
40 mm
Warranty Length
18 mth
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
Type Of Operator
  • turn to release trigger action
Connections Terminals
  • screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Overvoltage Category
  • class II conforming to IEC 61140
Uimp Rated Impulse Withstand Voltage
  • 2.5 kV IEC 60947-1
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards
  • IEC 60204-1, for emergency stop devices if used with emergency stop legend plate type 9001KN
  • ISO 13850, for emergency stop devices if used with emergency stop le
Ui Rated Insulation Voltage
  • 250 V 3)IEC 60947-1
Icm Rated Short Circuit Making Capacity
  • 12 kA 120 V AC-15, 7200 VA
  • 0.1 kA 600 V DC-13
  • 0.27 kA 250 V DC-13
  • 0.55 kA 125 V DC-13
  • 0.55 kA 1
Ip Degree Of Protection
  • IP66 IEC 60529
Nema Degree Of Protection
  • NEMA 1
  • NEMA 12
  • NEMA 13
  • NEMA 2
  • NEMA 3
  • NEMA 3R
  • NEMA 4
  • NEMA 6
Accessories
  • 9001KN201
  • 9001KN202
Vibration Resistance
  • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Accessory Products
  • 9001KN201
  • 9001KN202
Tightening Torque
  • 0.8-0.8 N.m IEC 60947-1
Short Circuit Protection
  • 10 A cartridge fuse IEC 60947-5-1
Ie Rated Operational Current
  • 3 A 240 V, AC-15, A600-Q600 NEMA
  • 0.55 A 125 V, DC-13, A600-Q600 NEMA
  • 0.55 A 125 V, DC-
Operator Profile
  • red mushroom Ø 40 mm, unmarked
Shock Resistance
  • 50 gn IEC 60068-2-27
Rated Breaking Capacity
  • 3 kA 240 V AC-15, 720 VA
  • 6 kA 120 V AC-15, 720 VA
  • 1.2 kA 600 V AC-15, 720 VA
Product Certifications
  • NEMA
  • UL 508
