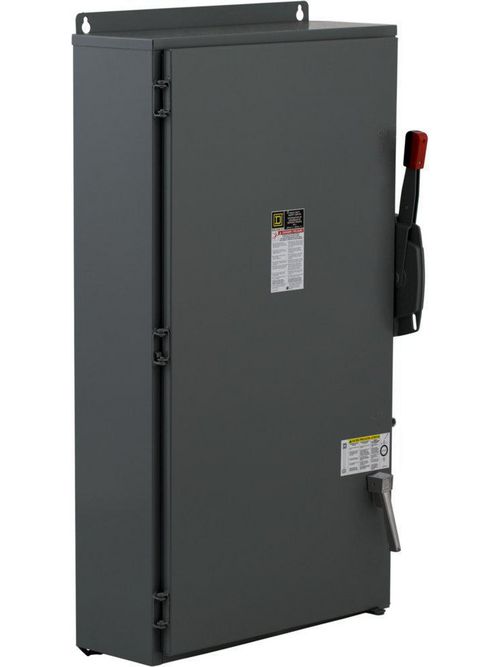

Product image for Square D H266AWK 600 VAC 600 Amp 2-Pole Class R Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D H266AWK 600 VAC 600 Amp 2-Pole Class R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H266AWK | Cooper Electric Part # 511239
$9,713.62/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Play a crucial role in today.s commercial and industrial settings, isolate power in daily activities, provide an effective way to interrupt power in an emergency, provide lockout on sight disconnect.

Technical Information

Amperage
600 Amp
Applications
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Contact Configuration
2
Contact Rating
Y
Enclosure
NEMA 3R/12
Line Rated Current
600 A
Mounting Type
Surface
Number of Poles
2 Pole
Short Circuit Current
10 kA
Size
10.13 IN,26.25 IN,46.25 IN
TC Connection
AWG 3/0...500 KCMIL COPPER OR ALUMINIUM,LUGS
Type
SAFETY SWITCH
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901259466
GTiN
00785901259466
Product UPC
78590125946

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Certifications
UL,UL
Country of Origin
USA
  • Galvanized Steel with E-Coat on all NEMA 3R Enclosure
  • Two tone color handle clearly shows switch's status
  • More current carrying copper
  • Factory or field installed Insulated, bonded solid neutral and equipment ground assemblies
  • Black \"OFF\
  • Red \"ON\
  • Field installable rainproof B Hubs
  • Generous wire bending space
  • Wire terminations suitable for aluminum or copper conductors
  • Mechanical endurance of F series is guaranteed to exceed three times the NEMA requirements
  • Result -- switches operate cooler
  • The switches includes an oversized arc suppressor, a key feature in the ability of the switch to break the load by effectively attenuating the arc for a clean interruption
  • Field installable watertight H Hub
  • Tangential knockouts, where provided, lessen the need for conduit offset bends
  • Enclosed operating mechanism design reduces the amount of dust and other contaminants that shorten the mechanisms operating life.
  • Cooler temperatures -- longer life
  • Meets or exceeds NEMA KS1
  • Dual Cover Interlock
  • Mining and Mineral
  • From live parts
  • During maintenance of loads
  • Educational Campuses
  • Healthcare Facilities
  • Short circuit or high fault protection
  • Commercial Buildings
  • Arcing during switching
  • Industrial Buildings
  • Service entrance equipment
  • Point of load
  • Manufacturing
  • Water Wastewater
  • Overload or thermal protection
