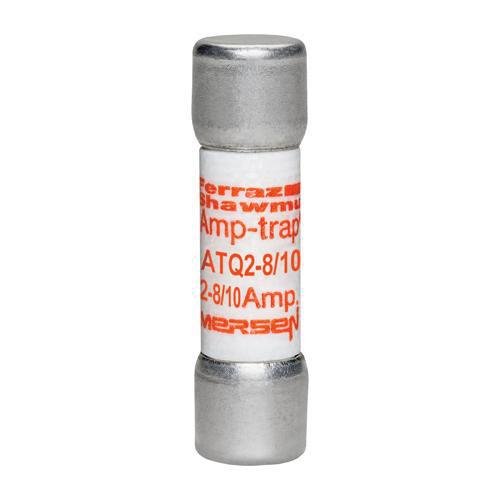

Product image for Mersen ATQ2-8/10 500V 2-8/10A TD MI
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Mersen ATQ2-8/10 500V 2-8/10A TD MI

Manufacturer: Mersen | Catalog # ATQ2-8/10 | Cooper Electric Part # 509628
$33.03/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)

Technical Information

Amperage
2.8 Amp
Applications
Supplemental protection of lighting, solenoid, motor, and transformer circuits
Contact Material
Tin-Plated Copper
Fuse Class
Class M
Insulation Material
GMG
Interrupt Rating
10 kAIC
Mounting Type
Clip
Rated Voltage AC
500 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Midget, Time Delay
Voltage
500 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001906054
Class
M
Construction
GMG
GTiN
30782001906055
Product UPC
78200190605
Weight
0.012 lb

Dimensions

Diameter
0.41 Inch
Length
1-1/2 Inch
Applications
  • Supplemental protection of lighting, solenoid, motor and transformer circuits
Features
  • Numerous ratings for a wide variety of applications up to 500VAC
  • Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current

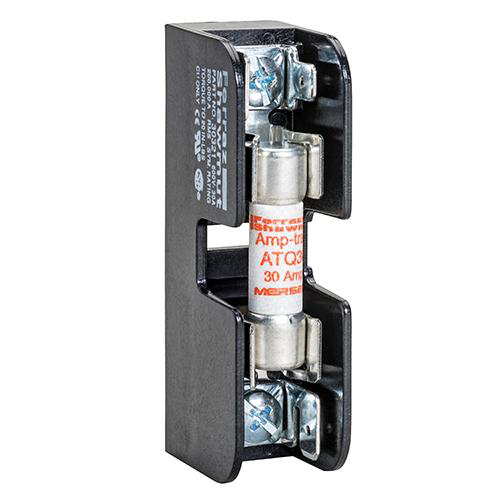

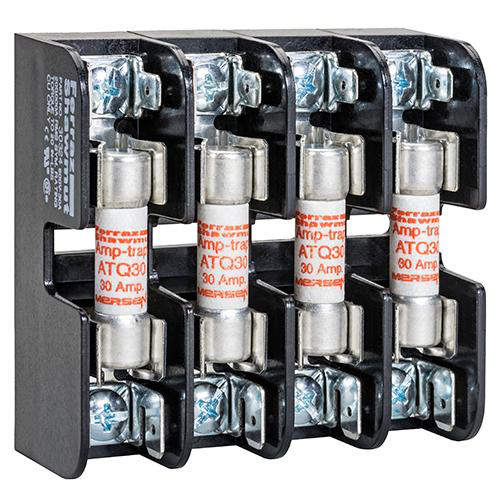

  • Can be used with UltraSafe™ Fuse holders
  • 1 1/2\" x 13/32\" (10 mm x 38 mm) dimensions
Approvals & Standards
  • UL listed to standard 248-14 File E33925
  • CSA Certified to Standard C22.2 No. 248.14
