Burndy YGHP58C2W2 High Conductivity Cu Compression Ground Tap Connector, 1/2" - 5/8" Rod Dia, #6 - #2 Sol(Tap)

Manufacturer: Burndy | Catalog # YGHP58C2W2 | Cooper Electric Part # 509504
$89.12/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
High Conductivity Cu Compression Ground Tap Connector, 1/2" - 5/8" Rod Dia, #6 - #2 Sol(Tap).

Technical Information

Applications
For Ground Rod, Direct Burial In Earth And Concrete
Conductor Size
2 AWG
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size

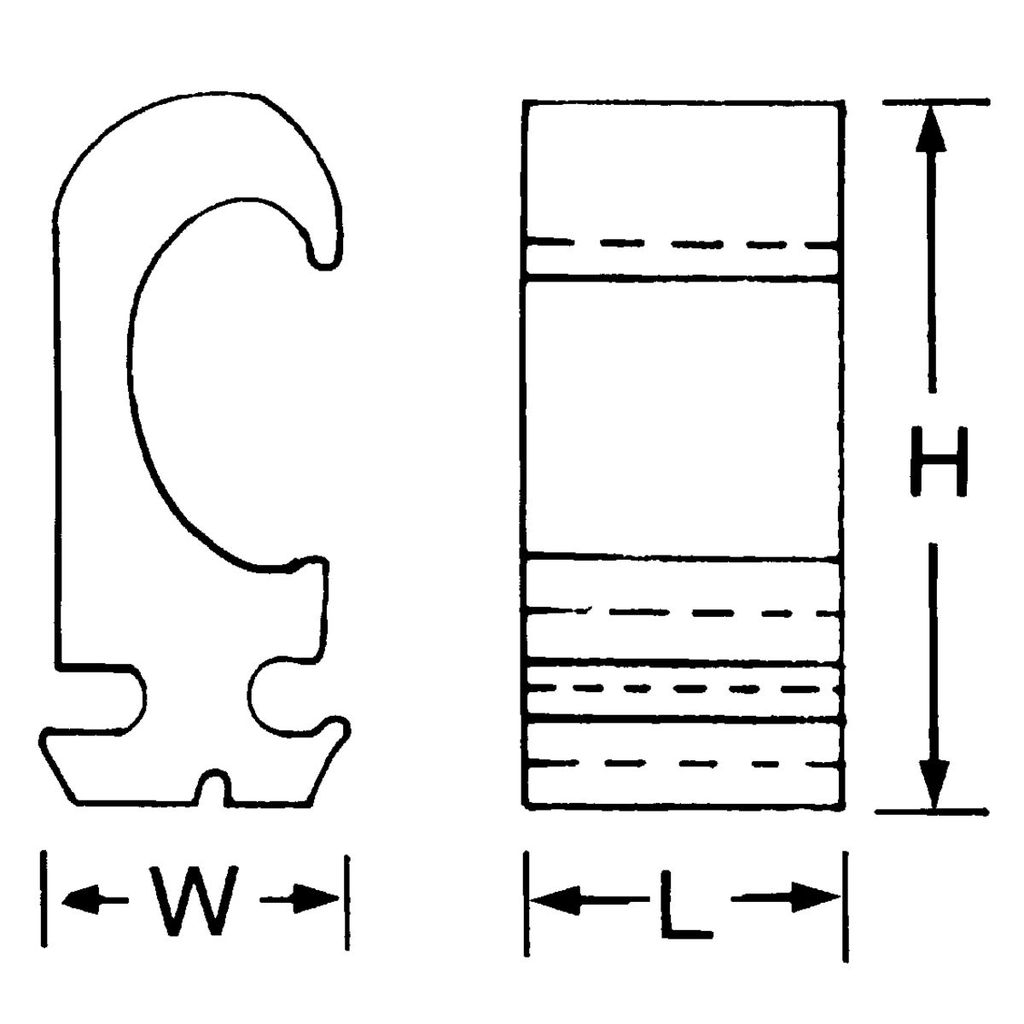

1.90 IN Height X 0.94 IN Width X 0.75 Length
Tap Size
6 - 2 AWG Solid Copper
Type
Taps

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810002186
GTiN
00781810002186
Product UPC
78181000218

Dimensions

Height
1.9 Inch
Length
3/4 Inch
Width
0.94 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Tap A accepts a continuous run on tap conductor
  • Tap B accepts a tap conductor only
  • One connector style can be used for many applications reducing number of connectors needed in inventory
  • High conductivity wrought copper extrusion, idential material to the conductor, minimizes resistance and voltage drop
  • UL467 Listed
  • Acceptable for direct burial in earth and concrete
  • Prefilled with PENETROX™ compound and strip sealed
