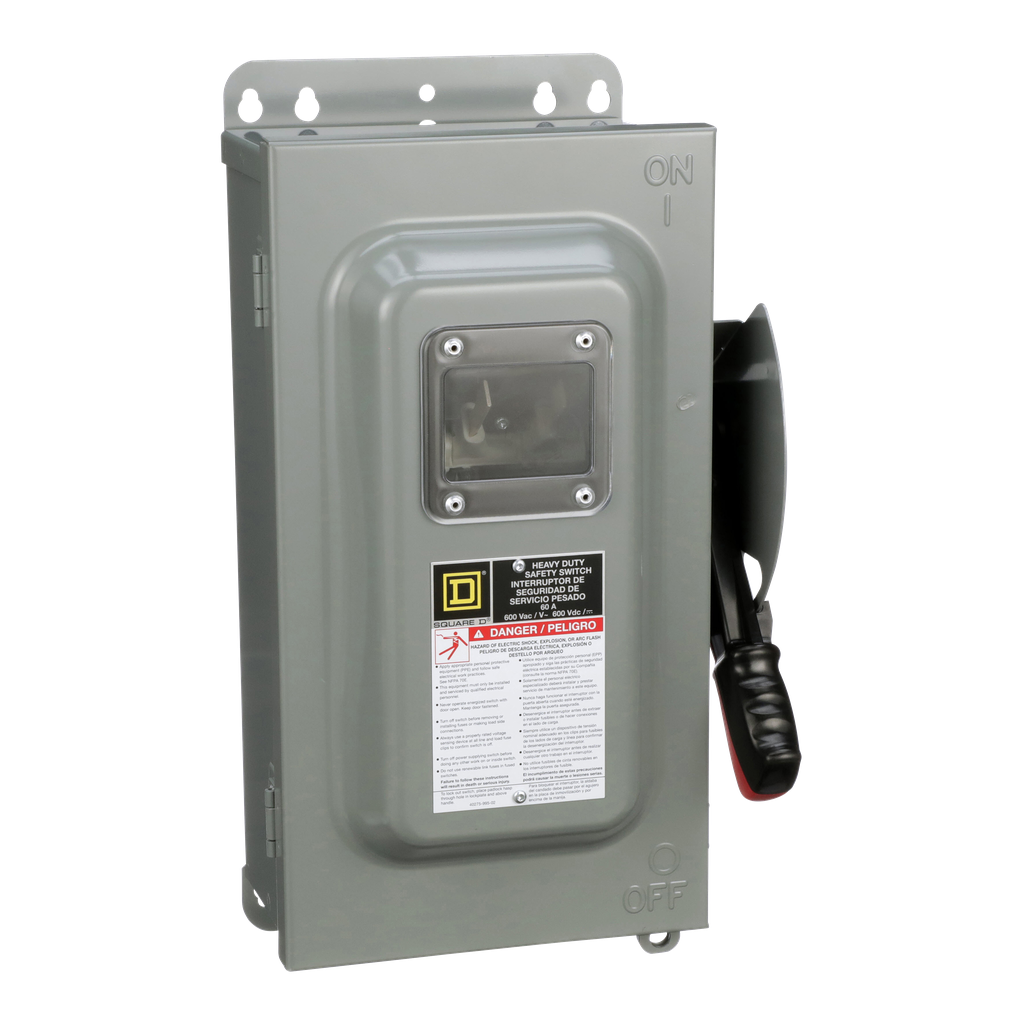

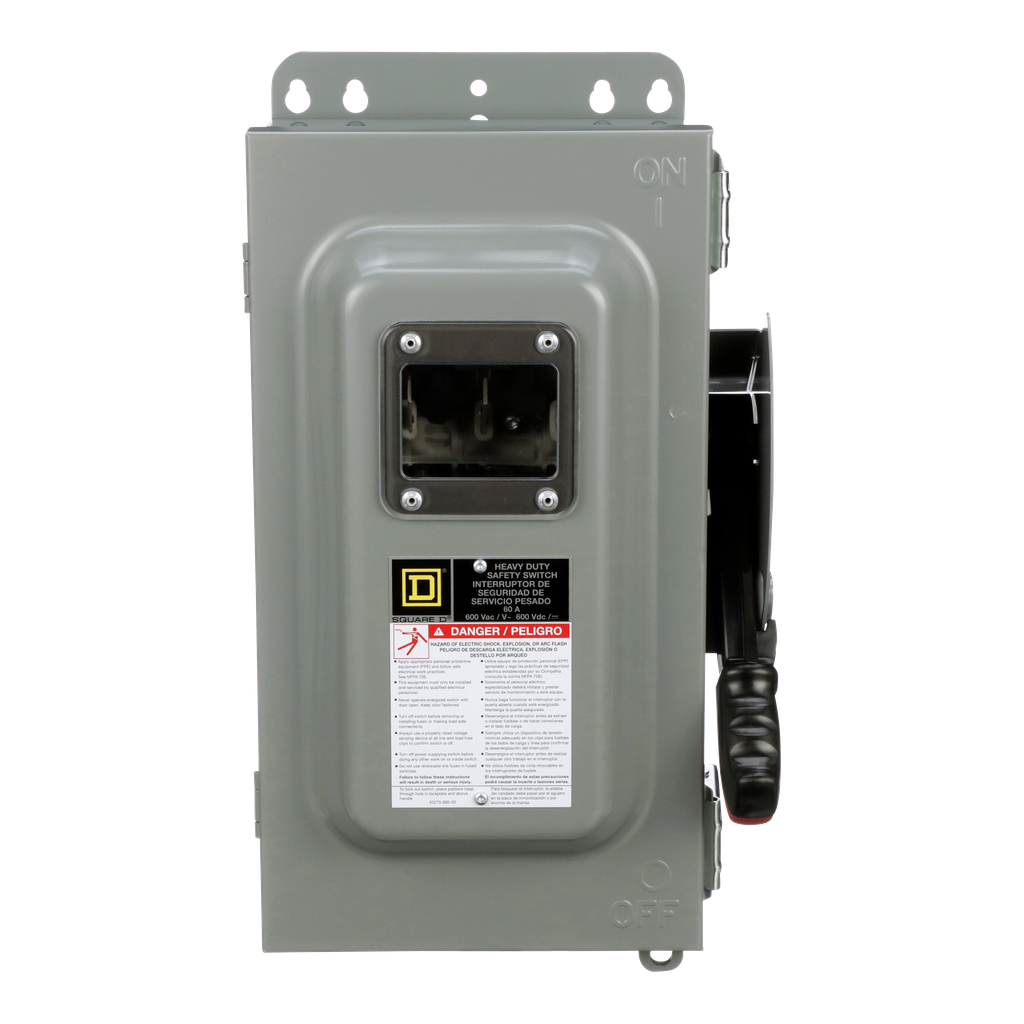

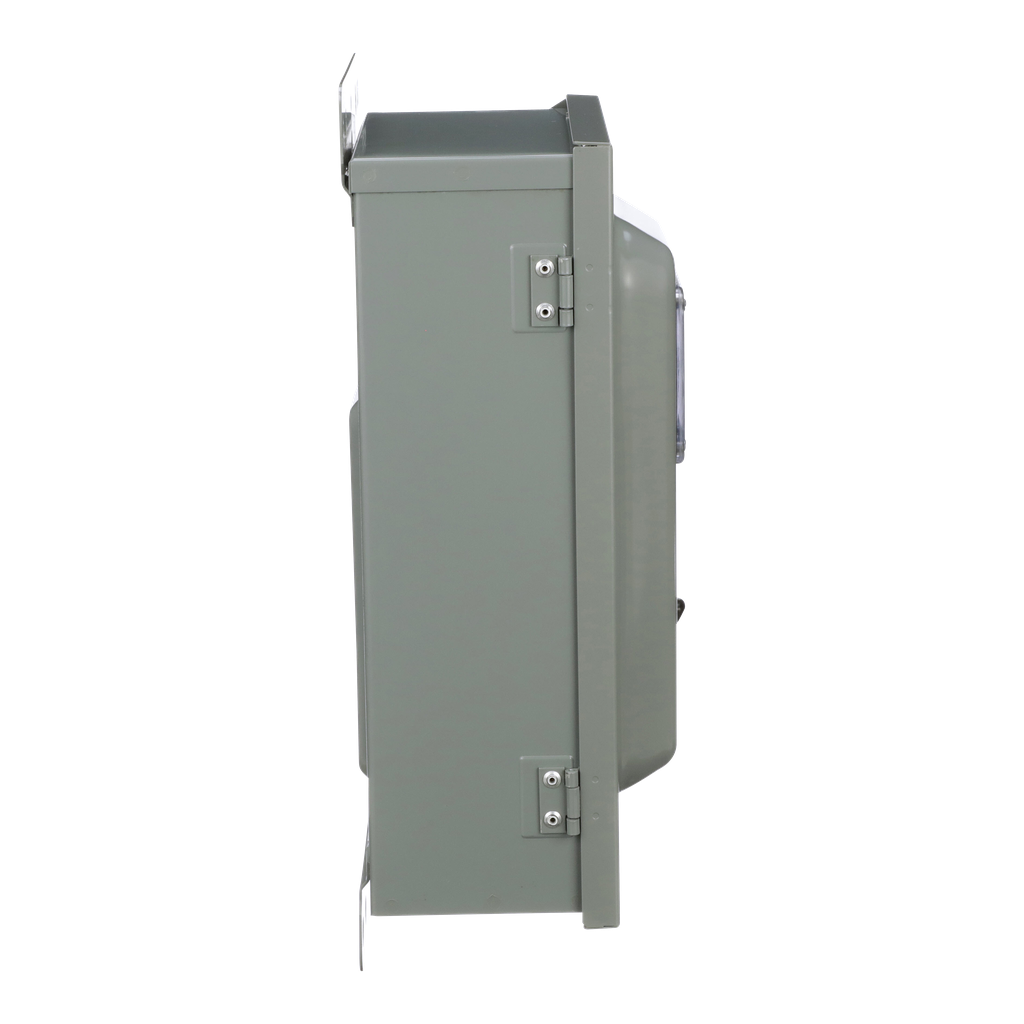

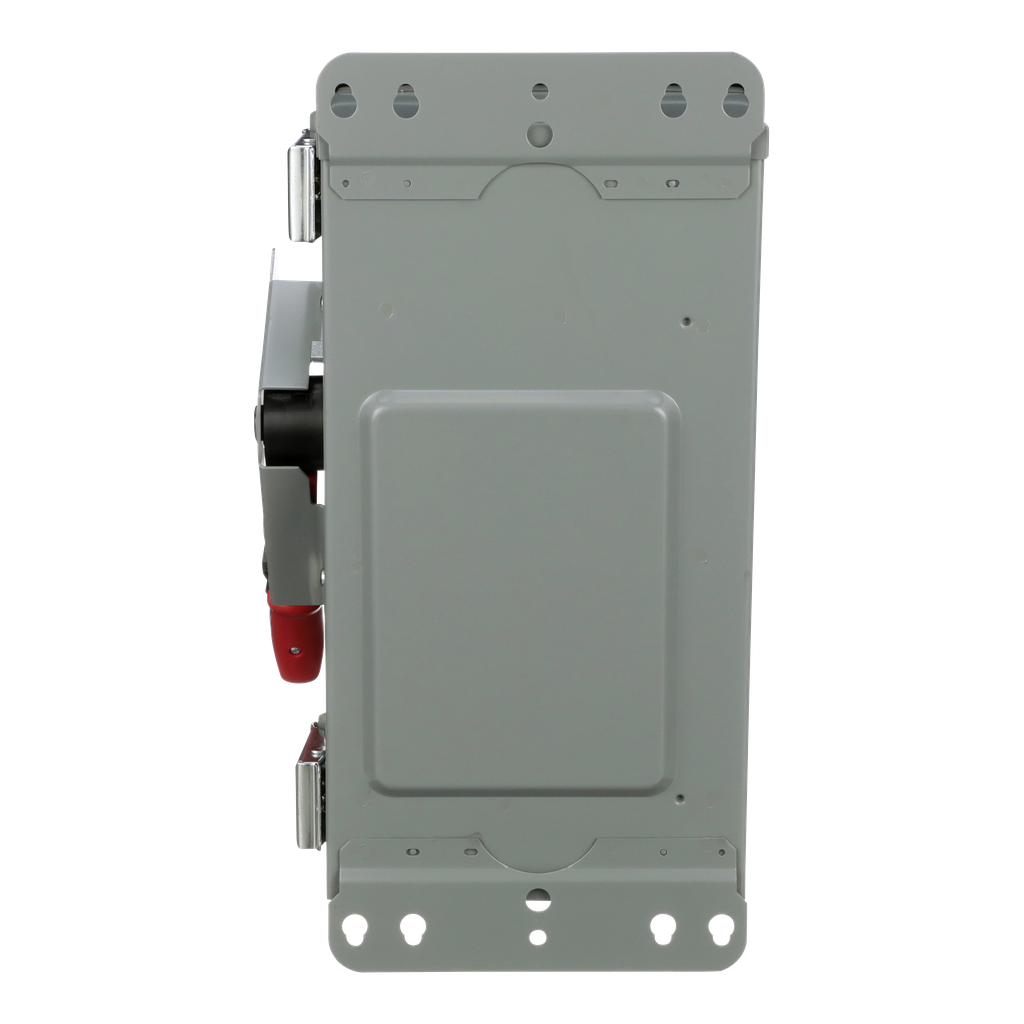

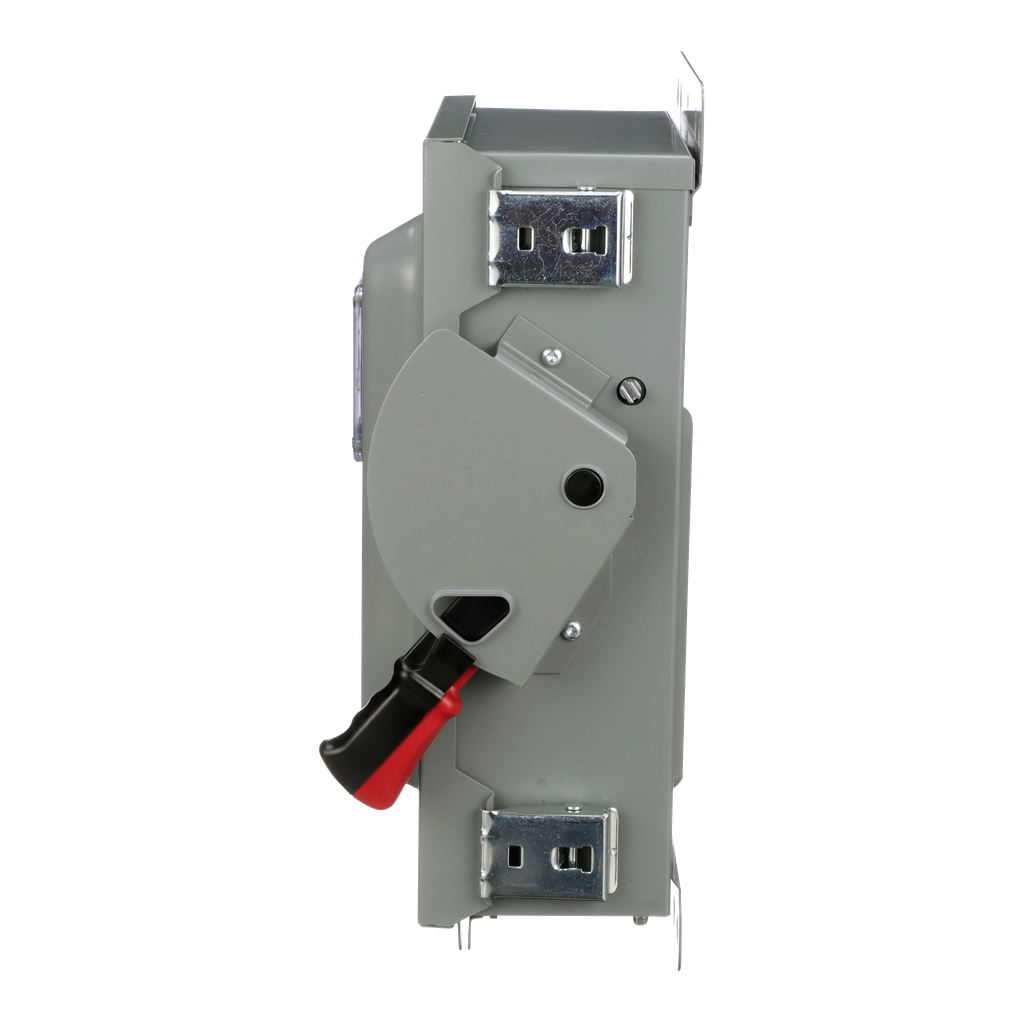

Square D HU362AWKVW 600 VAC 60 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU362AWKVW | Cooper Electric Part # 509194
$870.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet CAD Drawing #1
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three time

Technical Information

Amperage
60 Amp
Applications
HEAVY DUTY
Conductor Size
12-3 AWG (AL)/14-3 AWG (CU)
Contact Configuration
WITHOUT
Current
60 Amp
Duty Rating
Heavy duty
Enclosure
12,3R
Enclosure Material
Stainless Steel
Enclosure Rating
3R, 12
Line Rated Current
60 A
Material
Steel
Mounting Type
Surface
NEMA Size
12,3R
Net Weight
8 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Size
7 in
TC Connection
LUGS
Type
Non-fusible disconnect;Single Throw Safety Switch
Voltage
600 Volt
Wire Size
AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium
Wire Type
AWG 14...AWG 3 COPPER-AWG 12...AWG 3 ALUMINIUM

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901208877
Environmental Conditions
RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR)
GTiN
00785901208877
Product UPC
78590120887
Weight
17.64 lb

Dimensions

Depth
7 Inch
Height
16-1/2 Inch
Warranty Length
18 mth
Width
10.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
Motor Power Hp
  • 10 hp at 240 V AC 50-60 Hz for 1 phase motors
  • 20 hp at 240 V AC 50-60
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.8279707865548794
  • 0.8 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 18 kg CO2 eq.
  • 18.20618814160905
Ue Rated Operational Voltage
  • 600 V AC/DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 43 kg CO2 eq.
  • 43.17664448073482
Accessories
  • EIK1
  • EIK2
  • LOGK2
  • GTK0610
  • GTK0610C
  • SN0610
  • SN0610C
  • CL0306F
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 13 kg CO2 eq.
  • 12.992332388513393
Accessory Products
  • EIK1
  • EIK2
  • LOGK2
  • GTK0610
  • GTK0610C
  • SN0610
  • SN0610C
  • CL0306F
Carbon Footprint Of The Distribution Phase A4
  • 2.3549121234602555
  • 2 kg CO2 eq.
Tightening Torque
  • 50-50 lbf.in (AWG 3)
  • 45-45 lbf.in (AWG 6...AWG 4)
  • 40-40 lbf.in 8.367-8.367 mm² (AWG 8)
  • 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 1
AWG Gauge
  • AWG 14...AWG 3 copper
  • AWG 12...AWG 3 aluminium
