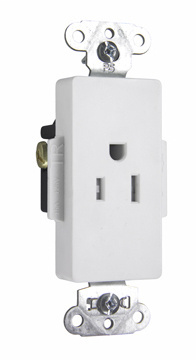

Product image for Pass & Seymour TR26261-W 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Nylon Face Tamper-Resistant Single Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour TR26261-W 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Nylon Face Tamper-Resistant Single Receptacle

Manufacturer: Pass & Seymour / Legrand | Catalog # TR26261W | Cooper Electric Part # 508186
$32.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Tamper-Resistant Heavy-Duty Decorator Spec Grade Single Receptacle, Back and Side-Wire, 15A, 125A

Technical Information

Amperage
15 Amp
Applications
For Commercial Applications
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x 1.188 W x 3.813 H In
Style
Decorator
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Tamper-Resistant, Decorator, Heavy Duty
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007004885
Color
White
GTiN
00785007004885
Product UPC
78500700488
UNSPSC
39121406

Dimensions

Depth
1.188 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for additional wiring flexibility.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
  • .032 inch thick brass triple-wipe power contacts.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
