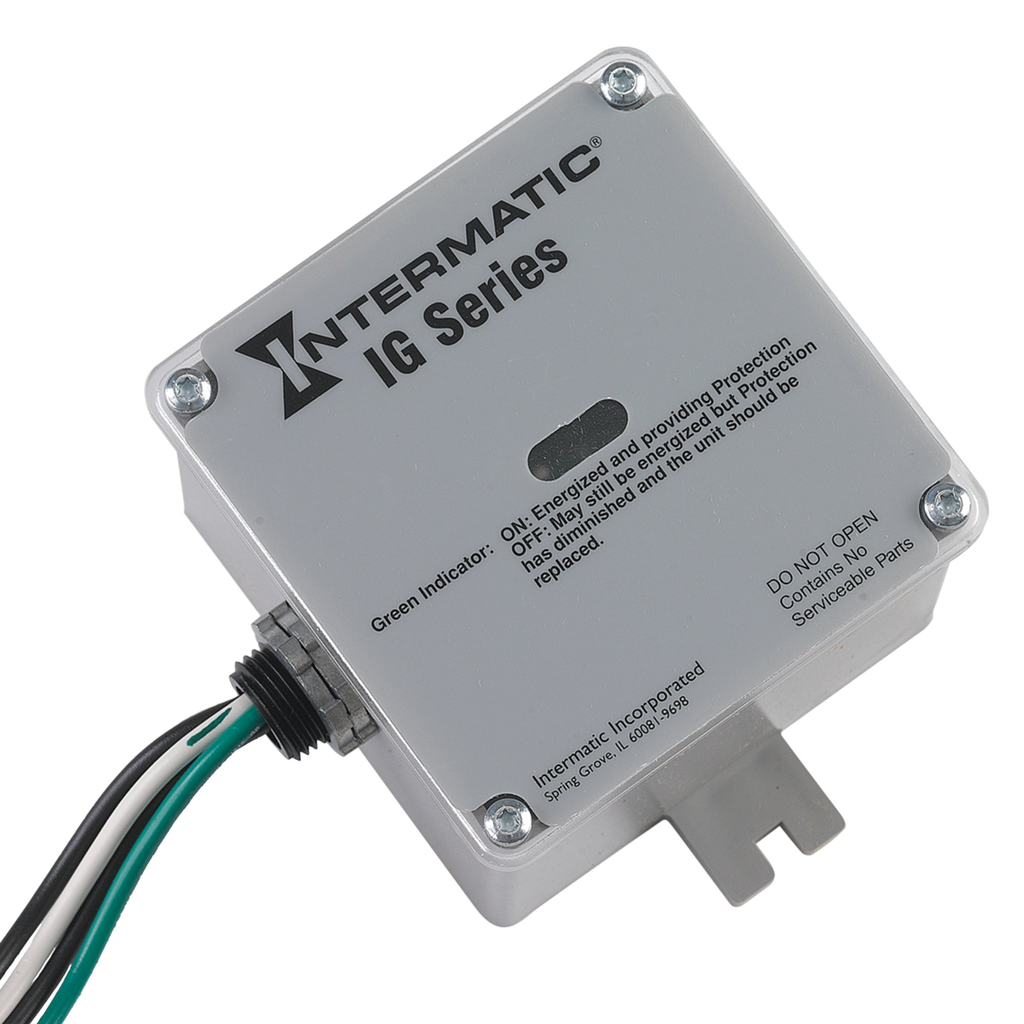

Intermatic IG1240RC3 Surge Protective Device, 6-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor Plastic, Connected Equipment Warranty 5 yr $10,000

Manufacturer: Intermatic, Inc | Catalog # IG1240RC3 | Cooper Electric Part # 506073
$402.27/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
6 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The IG Series Surge Protective Devices (SPD) are designed for a variety of applications. A green LED indicator provides status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA certified to ANSI/UL 1449, 3rd Edition.

Technical Information

Applications
For Residential, Light Commercial
Input Voltage
120/240 V
Material
Plastic
Max Operating Temperature
185 degrees F
Min Operating Temperature
-31 degrees F
Mounting Configuration
Mount to panelboard or enclosure
Mounting Type
Surface with Brackets
Number of Phases
2 Phase
Number of Wires
4 Wire
Size
4.20 HEIGHT X 4.20 WIDTH X 3.33 DEPTH IN, 107 HEIGHT X 107 WIDTH X 85 DEPTH MM
Standard
ANSI/UL1449 3rd Edition,CSA
Temperature Rating
85.0 degrees C
Type
Type I or II, Varistor
Voltage
240 Volt
Wire Count
4
Wire Length
762 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275124394
Class
Surge Protection
Color
Gray
Environmental Conditions
Outdoor
Finish
Plastic
GTiN
00078275124394
Product Category
Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords
Product Type
Home Improvement & Commercial Supplies - Powerstrips, Surge Protectors & Extension Cords
Product UPC
07827512439
Used With
HVAC, electronics

Dimensions

Depth
3.438 Inch
Height
4.188 Inch
Warranty Length
5 yr
Width
4.188 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Six modes of surge protection
  • TPMOV® surge protection technology
  • Green LED indicator provides status of protection
  • Type 3R rainproof enclosure for indoor/outdoor applications in plastic
  • 5-year product warranty
  • $10,000 connected equipment warranty on appliances and electronics
  • UL Listed to ANSI/UL 1449 5th edition
  • NA
