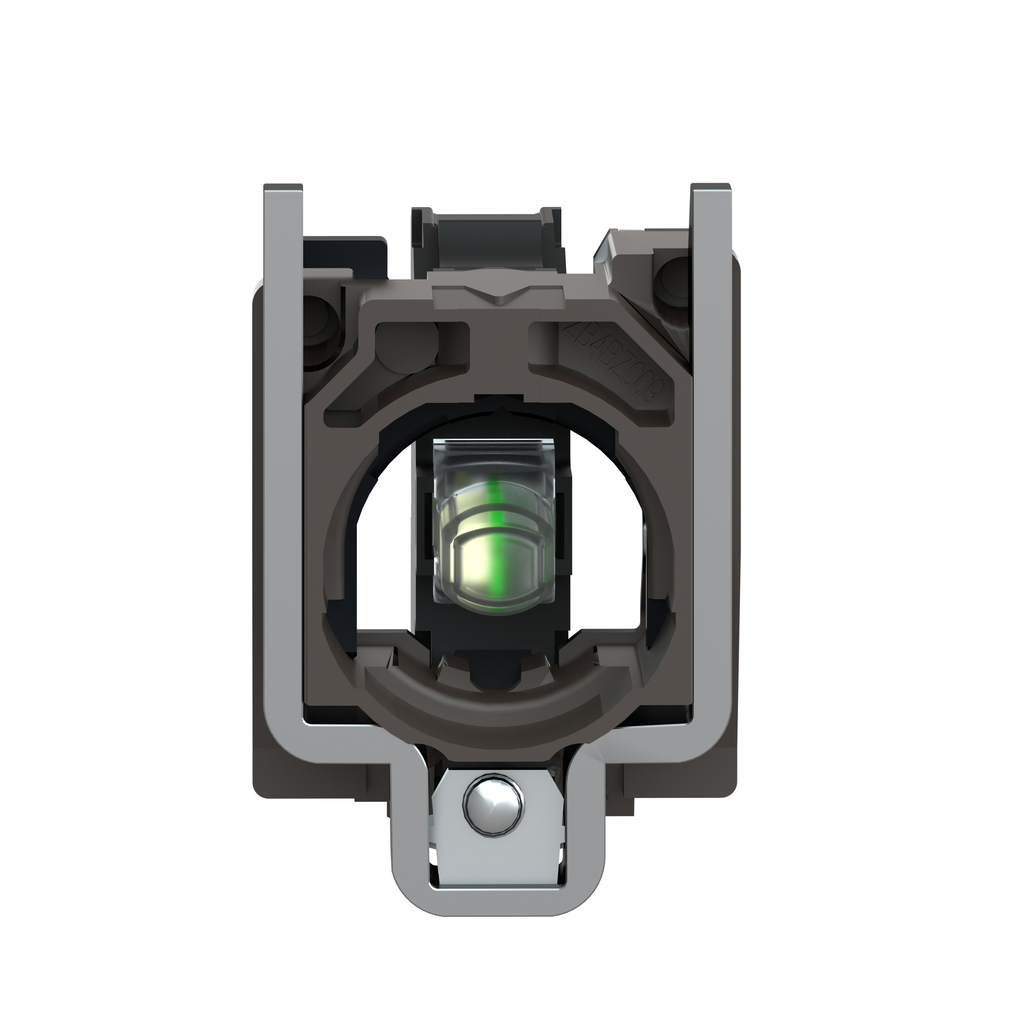

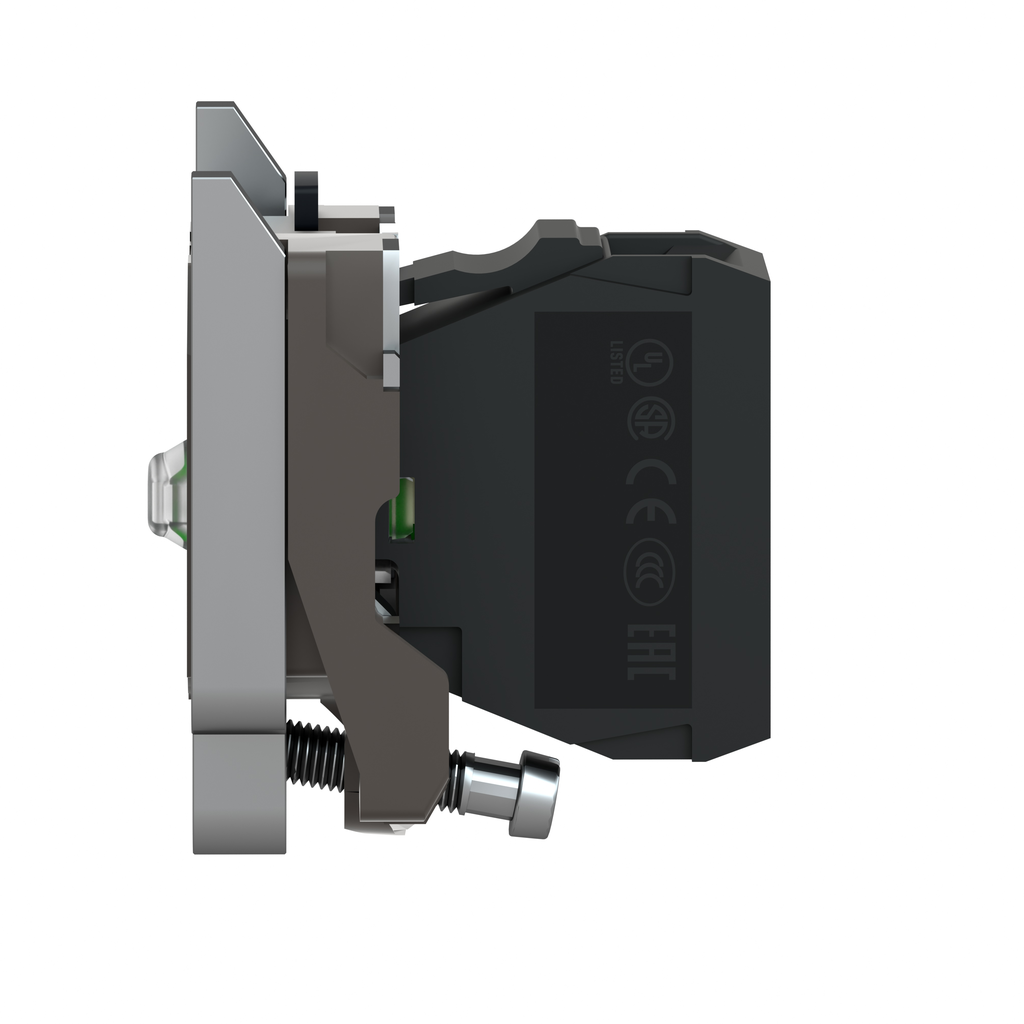

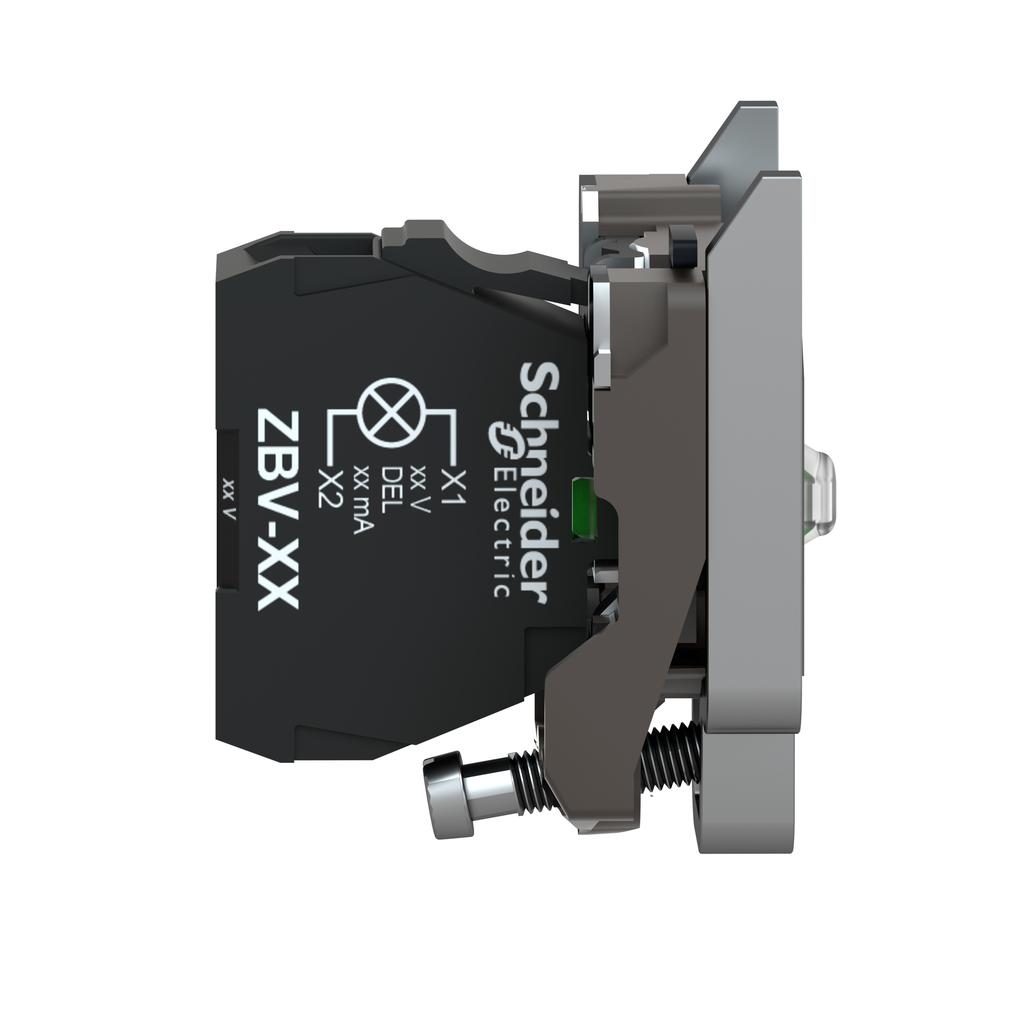

SQUARED ZB4BV18B4 Flashing light bl

Manufacturer: Square-D / Schneider | Catalog # ZB4BV18B4 | Cooper Electric Part # 506070
$66.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This light block allows fast and easy replacement and configuration of your signaling units It enables visual distinction of signaling units via illumination by BA9s base Integral LED It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections

Technical Information

Current
18 mA
Indicator
INTEGRAL LED,PROTECTED LED,RED
Net Weight
0.054 kg
Operating Temperature
-40-70 Adegrees C
Size
30 MM,37 MM,47 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END
Type
Complete body/light block assembly
Voltage
24 Volt AC/DC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB4

General Product Info

12-Digit UPC
785901704669
Color
Red
GTiN
03389110215182
Product UPC
78590170466
Weight
0.12 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
