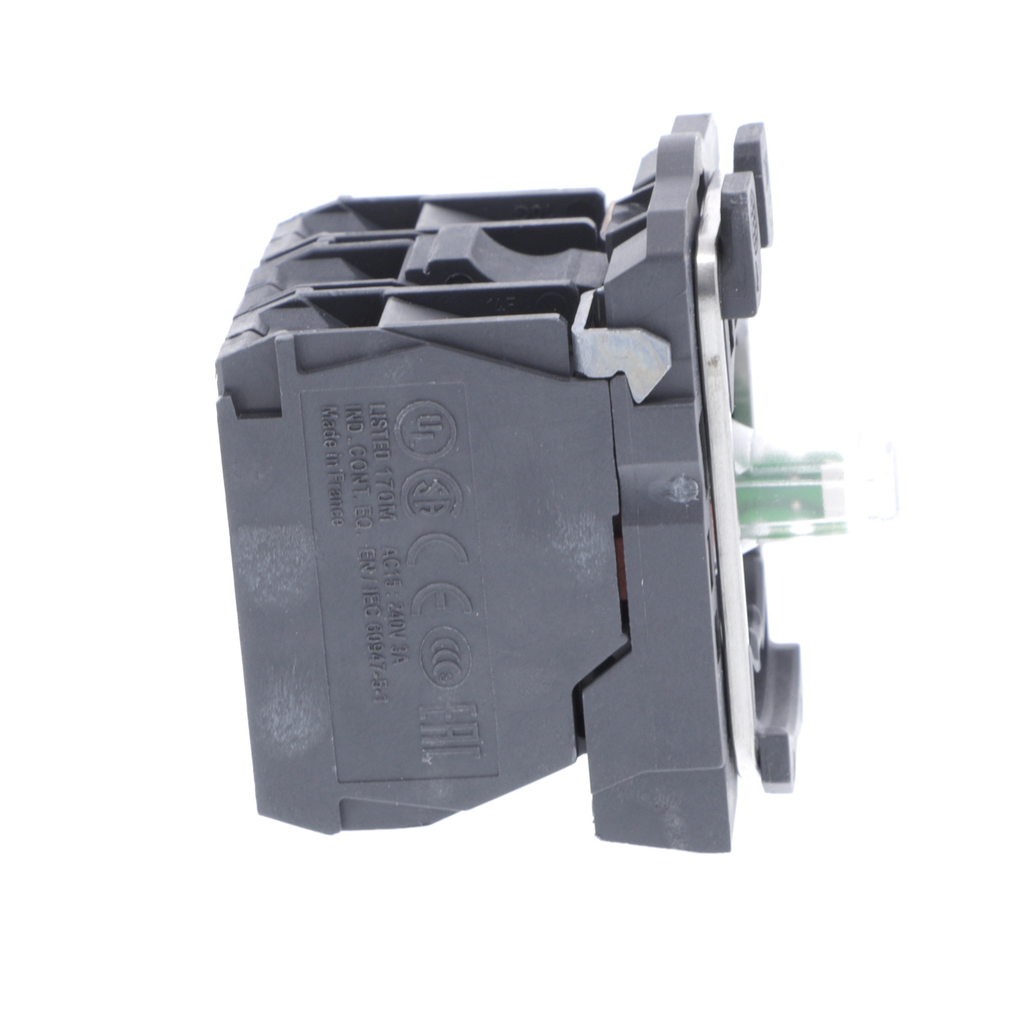

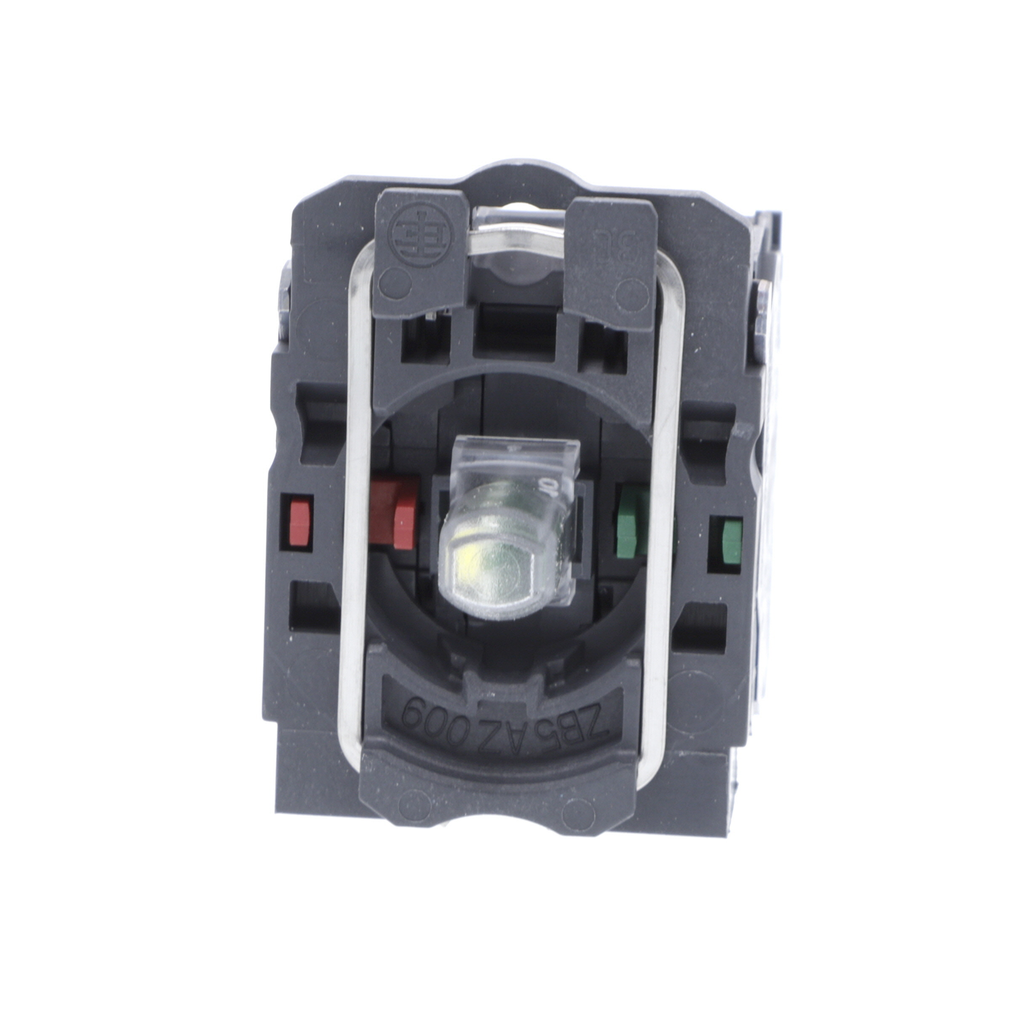

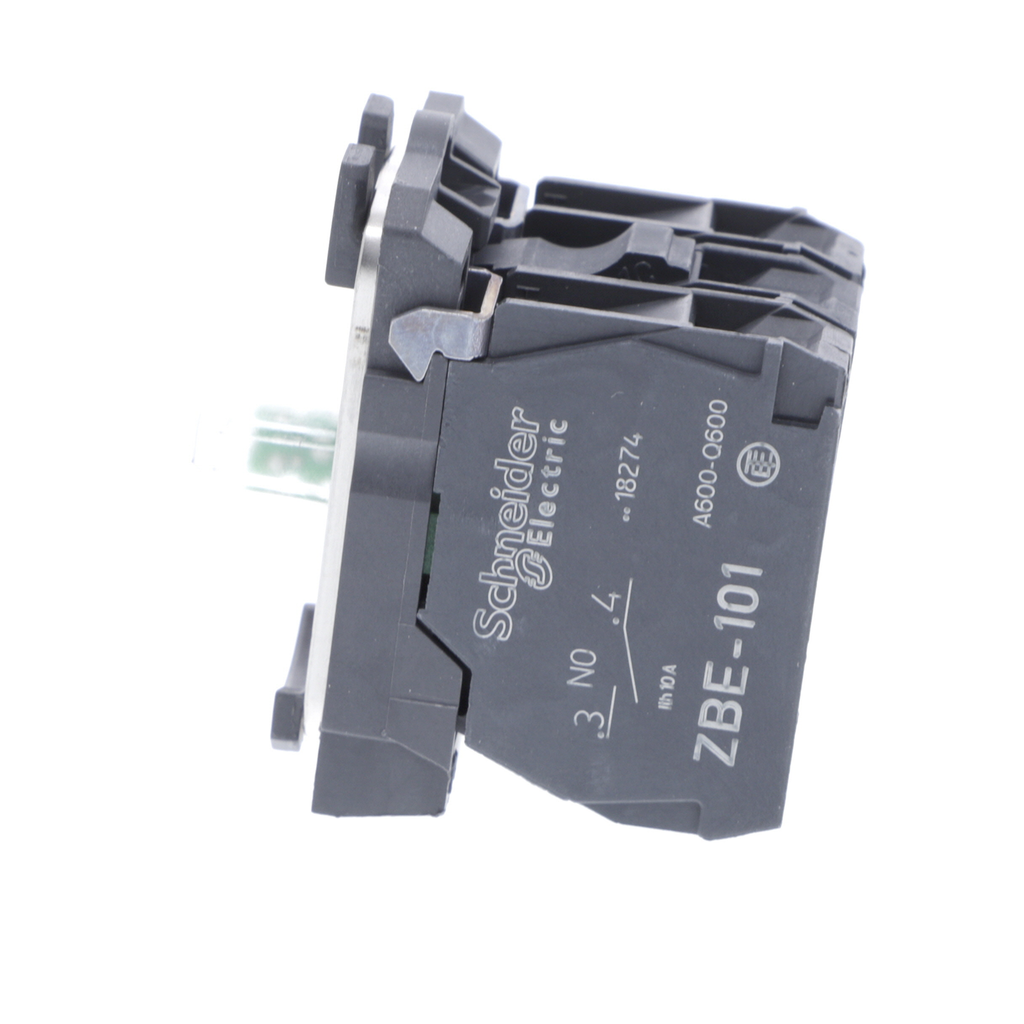

Square D ZB5AW0B45 22 mm 24 VAC/VDC 1NO 1NC Single Contact Block Light Module with LED

Manufacturer: Square-D / Schneider | Catalog # ZB5AW0B45 | Cooper Electric Part # 503554
$90.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical Information

Action
Slow-break
Amperage
10 Amp
Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Contact Rating
A600 - Q600
Current
18 mA
Head Type
Standard
Indicator
INTEGRAL LED,PROTECTED LED,RED
Net Weight
0.042 kg
Operating Temperature
-40-70 Adegrees C
Size
30 MM,32 MM,42 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Complete body/contact assembly and light block
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
785901387848
Color
Red
GTiN
03389110908558
Product UPC
78590138784
Weight
0.09 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
