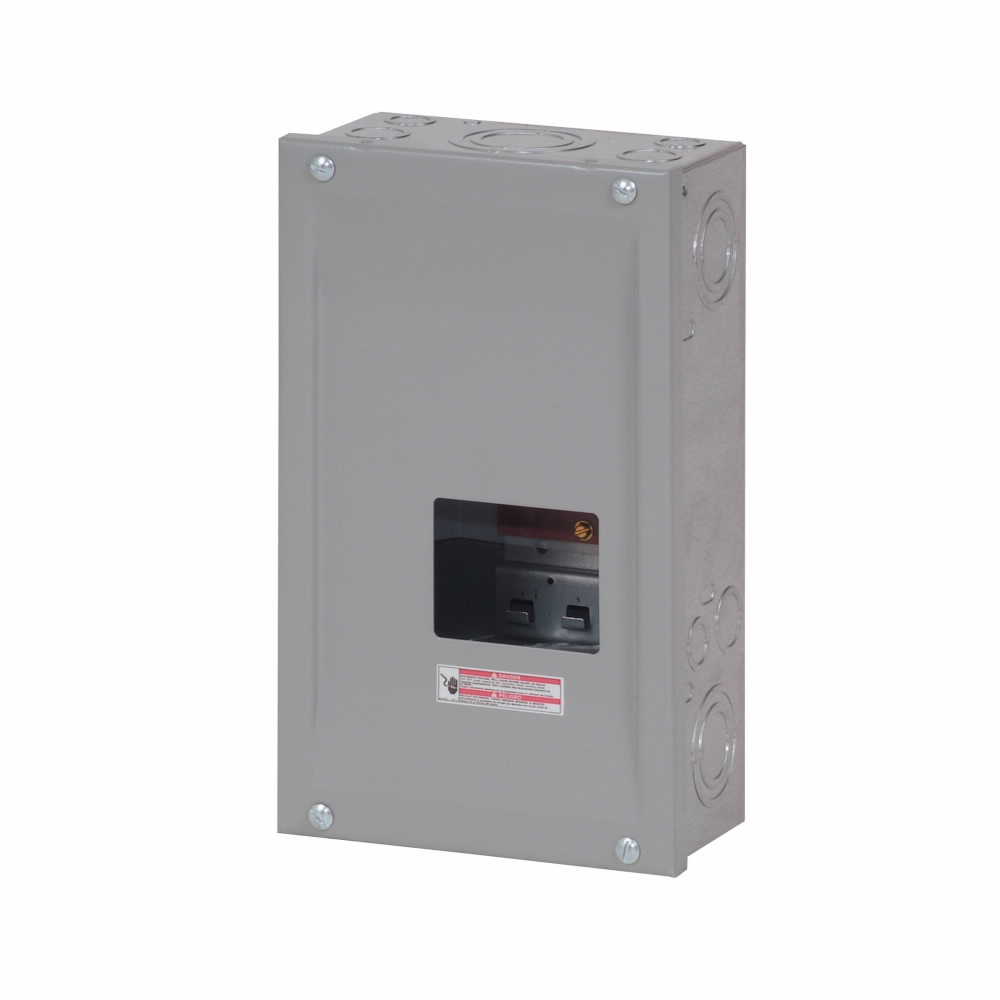

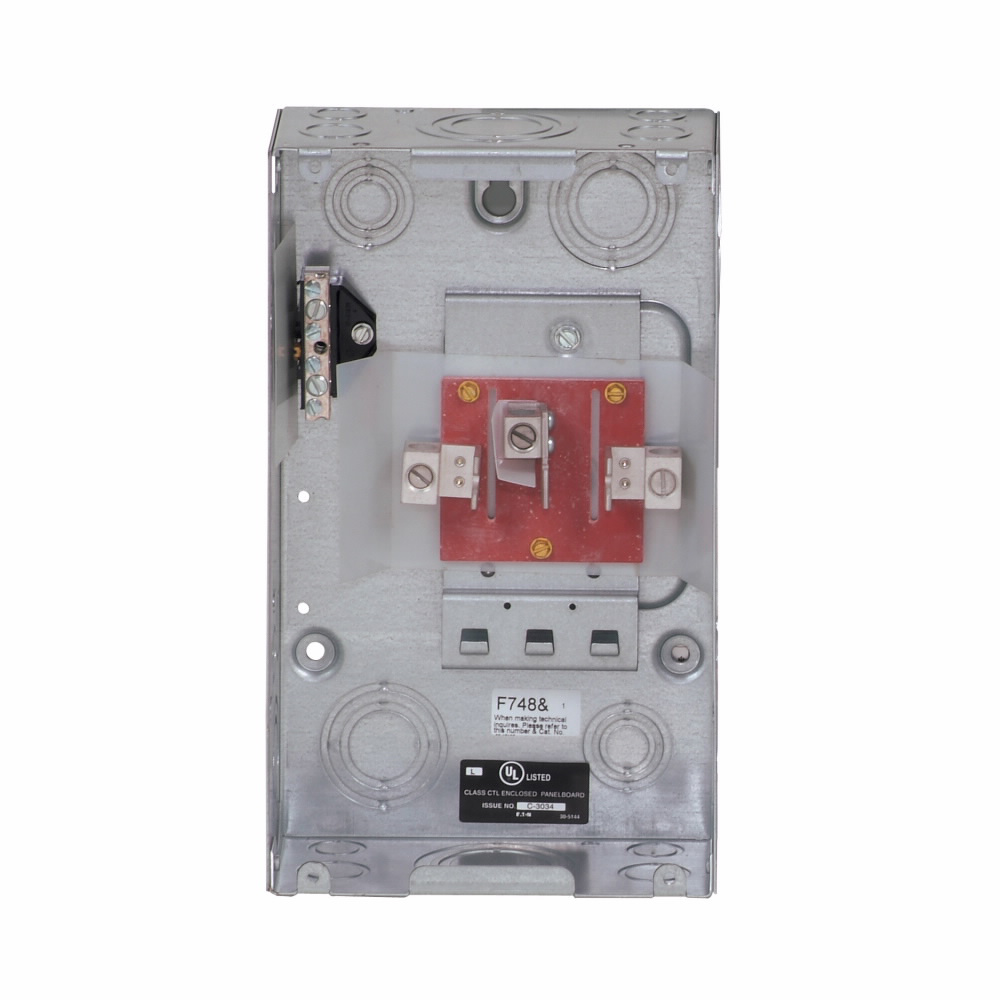

Eaton Electrical 3BR3L100S 208 Star/120/240 VAC 100 Amp 3 Circuit 3-Phase 4-Wire 1 Inch Main Lug Load Center

Manufacturer: Cutler-Hammer / Eaton | Catalog # 3BR3L100S | Cooper Electric Part # 502821
$99.97/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
1 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
Eaton BR main lug loadcenter,No feed-thru lugs,Main lug,100 A,9,Aluminum,Cover included,NEMA 1,Metallic,10 kAIC,BR,Surface,3 Circuits,Three-pole,3 Spaces,Four-wire,Three-phase,Type BR 1-inch breakers,208 Y/120, 240 V,#14-1/0 AWG Cu/Al

Technical Information

Actuator
Lever
Amperage
100 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Bus Material
Aluminum
Conductor Size
14-1/0 AWG
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
10 kAIC
Mounting Type
Surface
NEMA
1
Number of Circuits
3
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Spaces
3
Number of Wires
4 Wire
Size
9
Standard
UL 67,UL 50
Type
Main Lug
Voltage
240 Volt
Wattage
Three-pole
Wire Size
14-0 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782114886366
Color
Black
GTiN
00782114886366
Product UPC
78211488636
Weight
5.3 lb

Dimensions

Height
3.8 Inch
Length
12.6 Inch
Width
6.88 in
