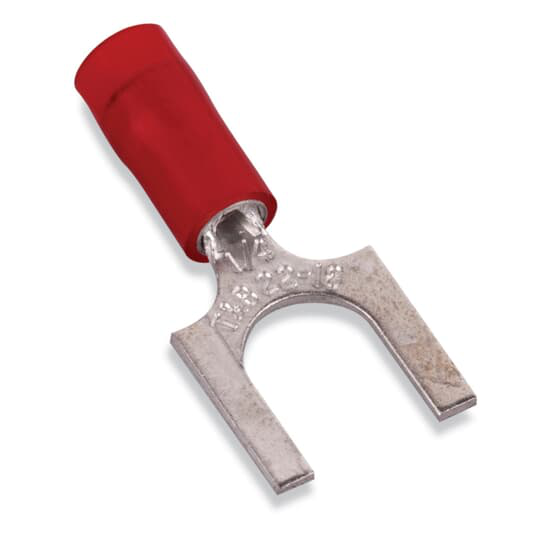

Product image for Thomas & Betts RA1123 #8 Bolt Hole 22-16 AWG Wire Range Red Insulated Nylon Fork Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts RA1123 #8 Bolt Hole 22-16 AWG Wire Range Red Insulated Nylon Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # RA1123 | Cooper Electric Part # 502458
$87.42/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

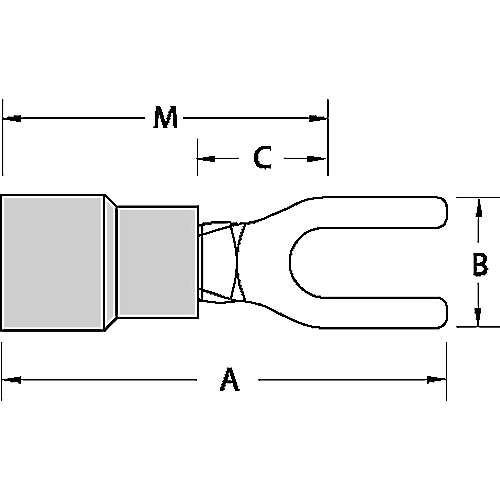

Nylon Insulated Fork Terminal, Length .83 Inches, Width .25 Inches, Maximum Insulation .136, Bolt Hole #8, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210817590
Color
Red
Finish
Electro Tin Plated
GTiN
00786210817590
Product UPC
78621081759
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
