Square D LC1F115M7 600 VAC 115 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1F115M7 | Cooper Electric Part # 498155
$557.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

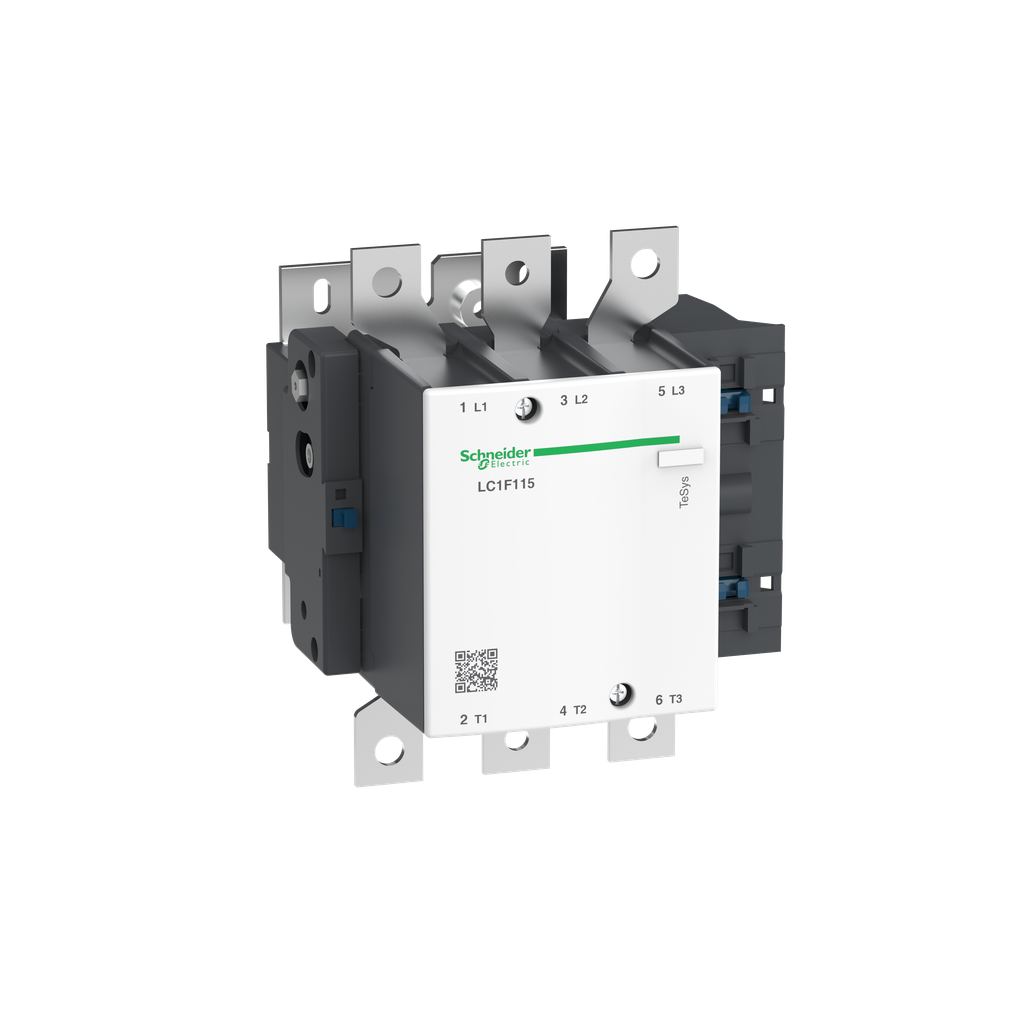

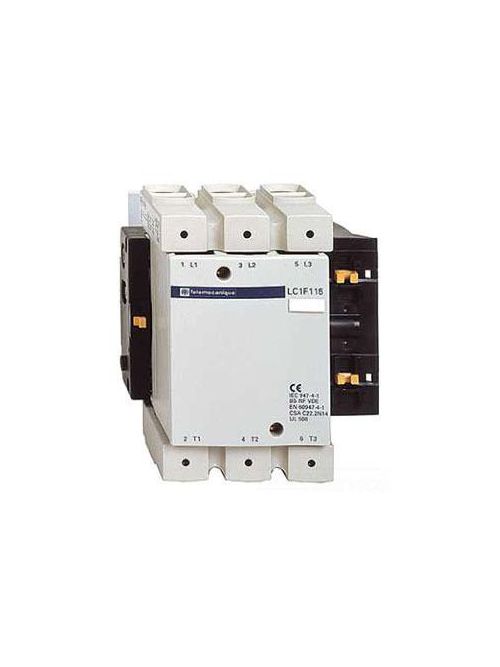

TeSys F contactor, 3 poles (3NO), 115A/690V AC-3, for motor applications up to 55kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55.C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
RESISTIVE LOAD-MOTOR CONTROL
Coil Voltage
220 V AC 40...400 HZ,<= 690 V AC 50/60 HZ
Contact Configuration
3 NO
Contact Rating
200 A 40 AC
Impedance
0.37 MOhm - Ith 200 A 50 Hz
IP Rating
IP2x
Net Weight
3.43 kg
Operating Cycles
2400 cyc/h 131 F (55 C)
Operating Temperature
-40-70 Adegrees C,-5-55 Adegrees C
Range
TeSys
Rated Insulation Voltage
1000 V
Size
162 MM,163.3 MM,171 MM
Standard
EN 60947-1,EN 60947-4-1,IEC 60947-1,IEC 60947-4-1,JIS C8201-4-1
Storage Temperature
-60-80 degrees C
TC Connection
POWER CIRCUIT BAR 2 20 X 3 MM-POWER CIRCUIT LUGS-RING TERMINALS 1 95-95 MMA-POWER CIRCUIT CONNECTOR 1 95-95 MMA-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT BOLTED CONNECTION
Type
Contactor
Voltage
690 Volt
Wattage
15 Watt AC-1 - 5 Watt AC-3

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS F

General Product Info

12-Digit UPC
785901400950
GTiN
03389110350876
Product UPC
78590140095
Weight
7.56 lb

Dimensions

Depth
171 mm
Height
162 mm
Warranty Length
18 mth
Width
163.3 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,BV,CB,CCC,DNV,LROS (Lloyds Register Of Shipping),RINA,RMRoS,UKCA,UL
Country of Origin
Czech Republic
