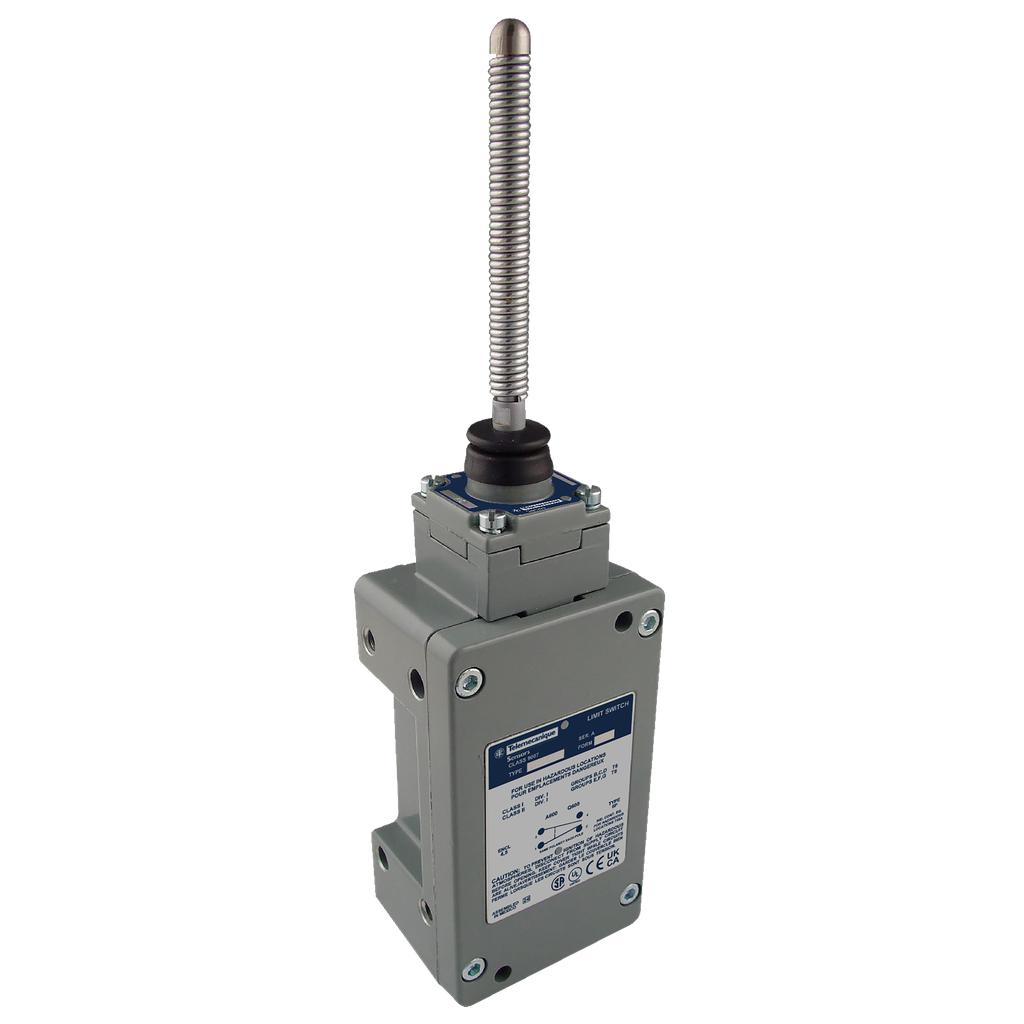

TES 9007CR61KC Limit switch, 9007, 9007CR 2 NO/NC, wobble head, coil spring

Manufacturer: TES Electric | Catalog # 9007CR61KC | Cooper Electric Part # 495149
$601.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Limit switch, 9007, 9007CR 2 NO/NC, wobble head, coil spring

Technical Information

Action
Snap action;By any moving part
Actuator
STEEL SPRING RETURN WOBBLE STICK COIL SPRING EXTENSION)
Amperage
10 Amp
Applications
Hazardous location box
Body Material
Aluminium
Body Type
Fixed NULL
Cable Entry
1 entry for 1/2" - 14 NPT ANSI B1.20.1
Contact Configuration
2(NC-NO)
Contact Material
Silver
Contact Rating
NEMA A600/R300
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Multi-directional head NULL
Material
Metal
Net Weight
2.5 lb
Number of Poles
2 Pole
Operating Cycles
1M
Operating Temperature
-20-185 Adegrees F HAZARDOUS LOCATION
Size
2.08 in
Storage Temperature
-20-185 degrees F
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Type
Limit switch
Voltage
1.2 A 600 Volt AC, A600 NEMA-1.5 A 480 Volt AC, A600 NEMA-3 A 240 Volt AC, A600 NEMA-6 A 120 Volt AC, A600 NEMA-0.11 A 250 Volt DC, R300 NEMA-0.55 A 125 Volt DC, R300 NEMA

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007CR

General Product Info

12-Digit UPC
785901637943
Environmental Conditions
STANDARD ENVIRONMENT
GTiN
00785901637943
Product UPC
78590163794
Weight
2.5 lb

Dimensions

Depth
2.08 Inch
Height
10.22-10.22 Inch
Warranty Length
18 mth
Width
2.72 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
