Thomas & Betts J971 Non-Insulated Large Tubular Ring Terminal - 1/0-2/0, 1/4"bolt (50/Pkg)

Manufacturer: ABB | Thomas & Betts | Catalog # J971 | Cooper Electric Part # 494778
$557.64/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

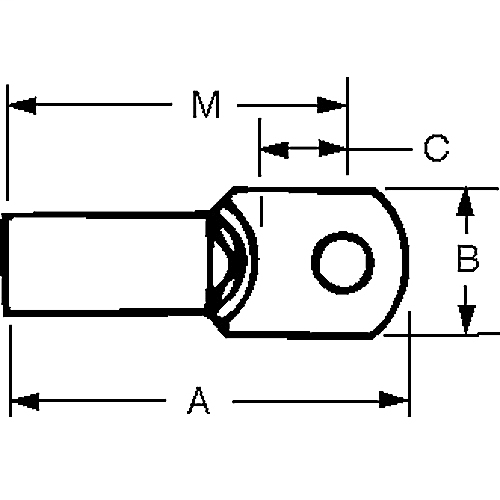

Non-Insulated Tubular Ring Terminal, Length 1.94 Inches, Width .84 Inches, Bolt Hole 1/4 Inch, Wire Range 1/0AN-2/0, Copper, Tin Plated, 50 Pack

Technical Information

Conductor Size
1/0-2/0 AWG
Insulation Type
Non-Insulated - Tubular
Material
Copper
Number of Holes
1 Hole
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
150 degrees C
Type
Tubular
Voltage
600 Volt
Wire Size
0-00 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210815657
Color
Metallic
Finish
Tin Plated
GTiN
05415022255072
Product UPC
78621081565
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
Notes
  • Not available on Mylar Tape.
