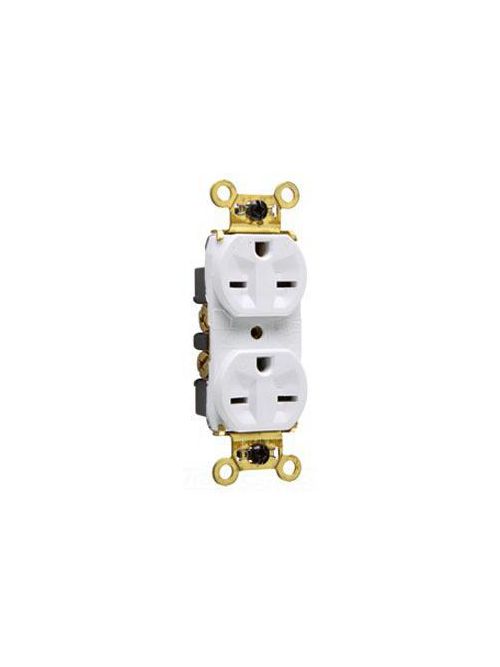

Product image for P&S WR5662-W 20A 250V RECEPTACLE
Image thumbnail 0
Image thumbnail 1
Email

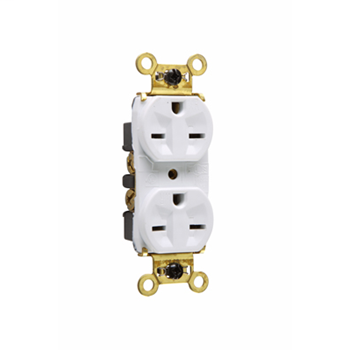

P&S WR5662-W 20A 250V RECEPTACLE

Manufacturer: Pass & Seymour / Legrand | Catalog # WR5662-W | Cooper Electric Part # 493976
$38.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Weather-Resistant Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 15amp 250volt White

Technical Information

Amperage
15 Amp
Capacity
Duplex
Duty Rating
Heavy Duty
Grade
Federal Specification
NEMA
6-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Style
Duplex
Type
Receptacles
Voltage
250 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007243178
Color
White
GTiN
00785007243178
Product UPC
78500724317
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • WR marking on face as required by UL Standard.
  • Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Tri-drive brass terminal screws.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for more wiring flexibility.
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • UV-resistant nylon face for longer life under adverse environmental conditions.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Eco-Benefit Information
  • RoHS Compliant
