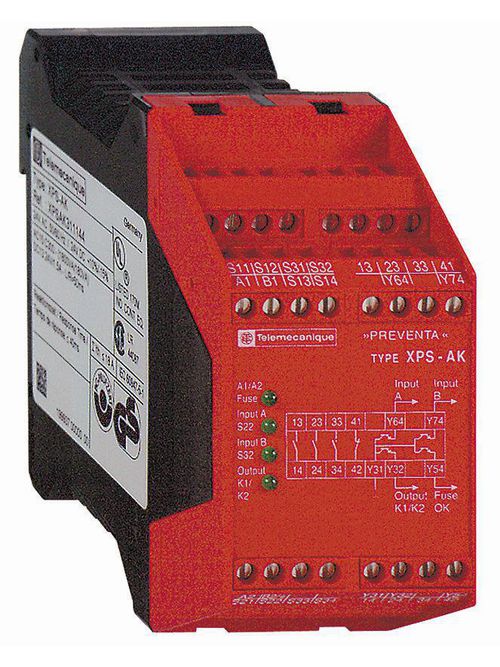

Product image for Square D XPSAK351144 120 VAC 3NO 4-LED Display Safety Relay Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

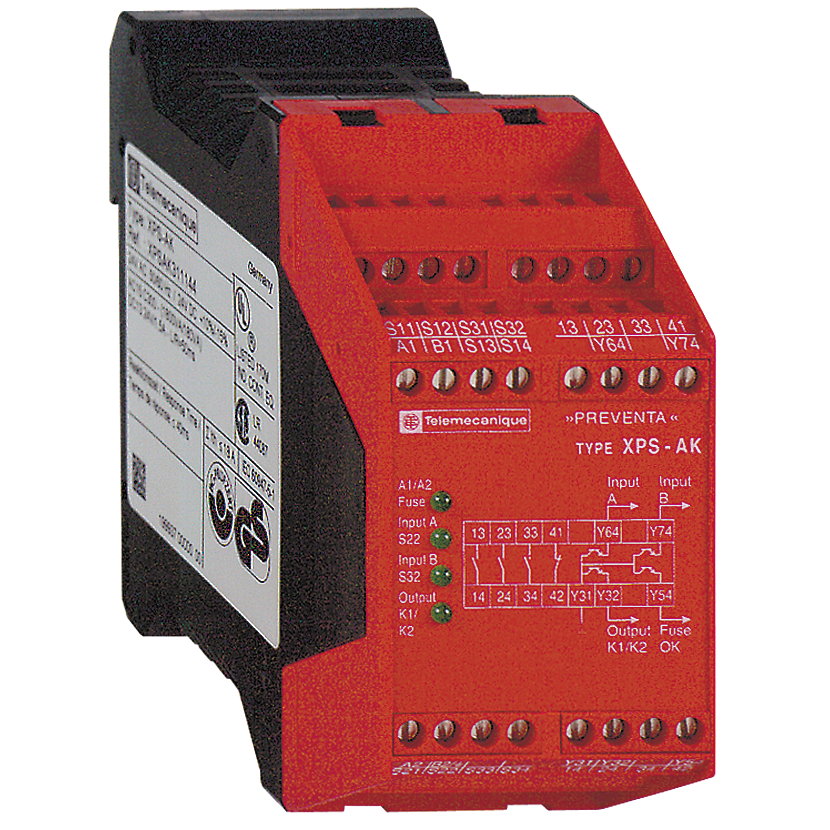

Square D XPSAK351144 120 VAC 3NO 4-LED Display Safety Relay Module

Manufacturer: Square-D / Schneider | Catalog # XPSAK351144 | Cooper Electric Part # 492428
$412.16/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This XPSAK safety module monitors emergency shutdown pushbuttons, limit switches, light curtains and safety mats/edges. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. It can also be used for electrical monitoring of switches activated by protection devices, with optional selection of synchronisation time between signals, monitoring of 4-wire sensing mats or edges. And monitoring of type 4 light curtains conforming to EN/IEC 61496-1 which have solid-state safety outputs with test function (light curtains XUSL). It is compatible with emergency push buttons, limit switches, safety light curtains and safety mats/edges, the 4 most common safety sensors in the industry. It has additional solid-state output for communication with PLCs about safety status of your process.

Technical Information

Applications
FOR EMERGENCY STOP, SWITCH, SENSING MAT/EDGES OR SAFETY LIGHT CURTAIN MONITORING,MONITORING OF A MOVABLE GUARD ASSOCIATED WITH 2 SWITCHES AND AUTOMATIC START-SENSING MAT AND EDGES MONITORING-PROXIMITY SENSOR MONITORING-MONITORING OF ELECTRO-SENSITIVE PROTECTION EQUIPMENT (ESPE)-MULTIPLE EMERGENCY STOP MONITORING 2-CHANNEL WIRING-MONITORING OF A MOVABLE GUARD-EMERGENCY STOP WITH 2 NC CONTACTS MONITORING 2-CHANNEL WIRING-EMERGENCY STOP MONITORING 1-CHANNEL WIRING
Contact Configuration
3 N.O. (INSTANTANEOUS) 1 N.C. - 4 SOLID STATE
Contact Rating
1.5 A 24 V DC-13)50 MS RELAY OUTPUT,180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT
Control Circuit Voltage
24 V
Current
24 V
IP Rating
IP20,IP40
Output
RELAY INSTANTANEOUS OPENING, 3 NO, VOLT-FREE
Power Supply
120 V AC - 15...10 -24 V DC - 15...10
Rated Insulation Voltage
300 V
Standard
EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 13850
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.14...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.14...1 X 2.5 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.25...1 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.14...2 X 0.75 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.14...2 X 0.75 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL
Type
PREVENTA SAFETY MODULE

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Preventa
Sub Brand
PREVENTA

General Product Info

12-Digit UPC
785901291695
GTiN
03389110291698
Product UPC
78590129169
Weight
0.88 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,CSA,TV,TV,UL,UL
Country of Origin
Indonesia
