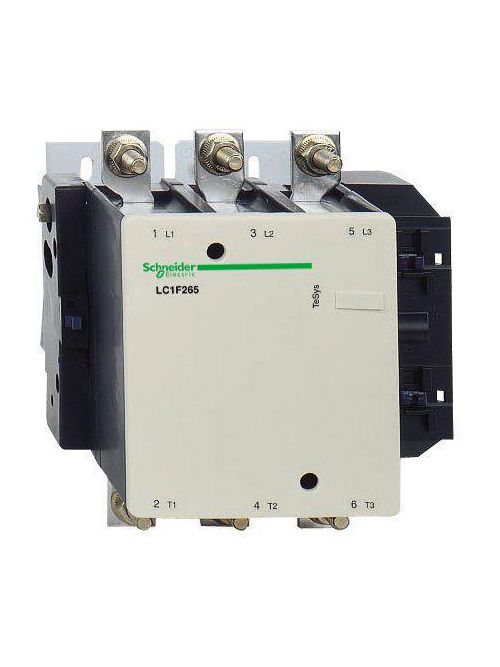

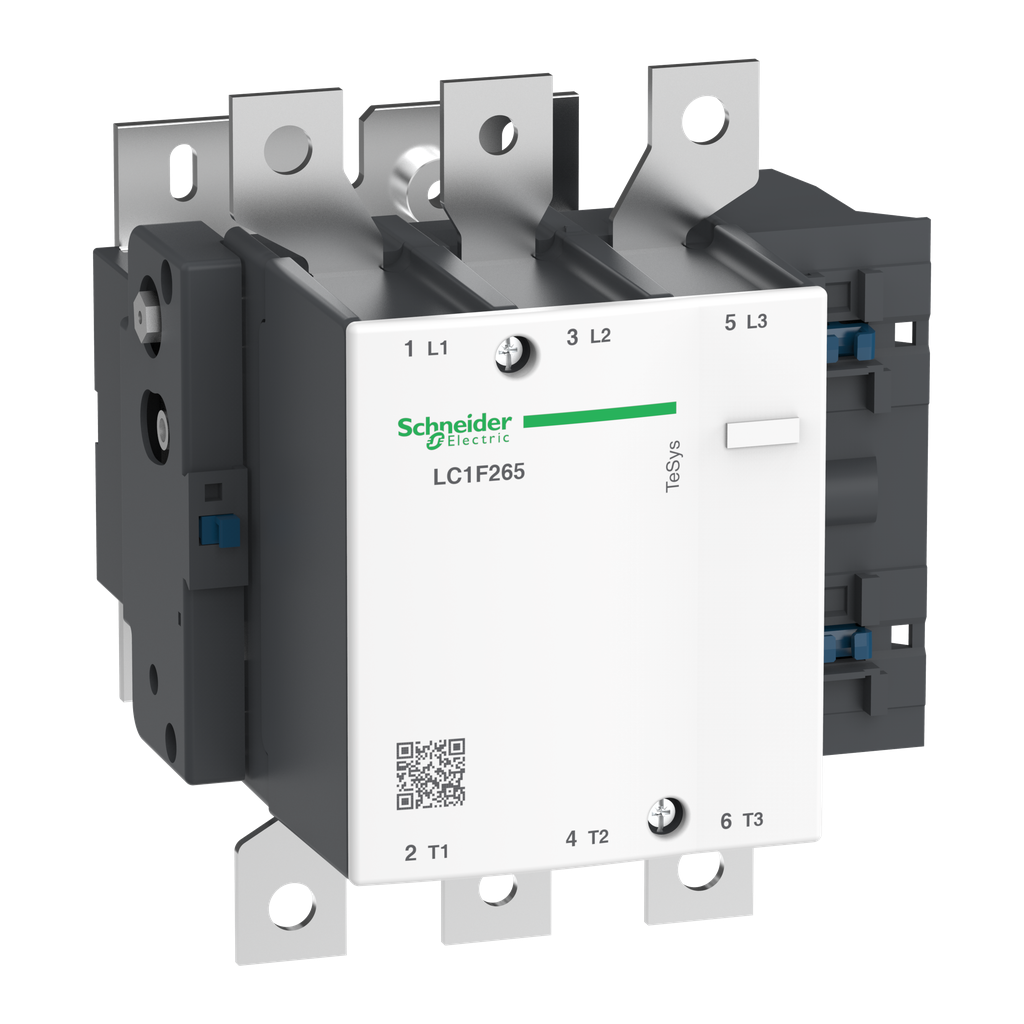

Product image for Square D LC1F265 600 VAC 265 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D LC1F265 600 VAC 265 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1F265 | Cooper Electric Part # 491844
$1,090.17/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys F contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55.C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
IEC CONTACTOR AND STARTER APPLICATIONS. BOTH INDUCTIVE AND RESISTIVE CURRENT VALUES
Coil Voltage
<= 1000 V AC 50/60 HZ- <= 460 V DC
Contact Configuration
3 NO
Contact Rating
UP TO 600VAC (UL), 265A INDUCTIVE, 350A RESISTIVE
Impedance
0.3 MOhm - Ith 350 A 50 Hz
Net Weight
8.54 kg
Operating Cycles
2400 cyc/h 131 F (55 C)
Operating Temperature
-5C TO 55C
Range
TeSys
Size
201.5 MM,203 MM,213 MM
Standard
EN 60947-1,EN 60947-4-1,IEC 60947-1,IEC 60947-4-1,JIS C8201-4-1
Storage Temperature
-60-80 degrees C
TC Connection
BOLT ON OR LUGS (SOLD SEPARATELY)
Type
Contactor
Voltage
1000 Volt
Wattage
37 Watt AC-1 - 21 Watt AC-3

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
389110122452
GTiN
03389110122459
Product UPC
78590113291
Weight
18.83 lb

Dimensions

Depth
213 mm
Height
203 mm
Warranty Length
18 mth
Width
201.5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,BV,CB,CSA,DNV,LROS (Lloyds Register Of Shipping),RINA,RMRoS,UKCA,UL
Country of Origin
Czech Republic
