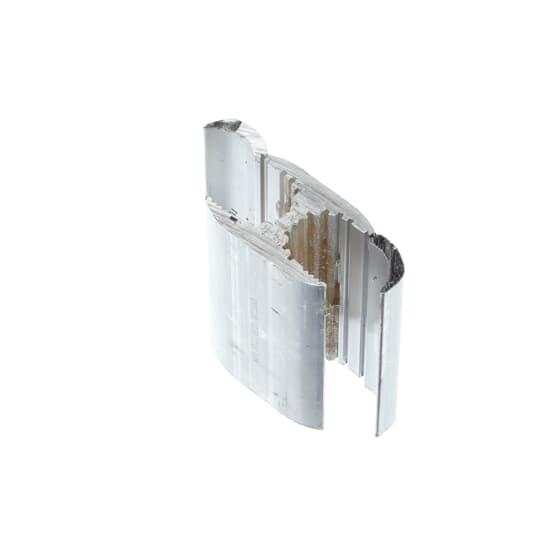

Image thumbnail 1

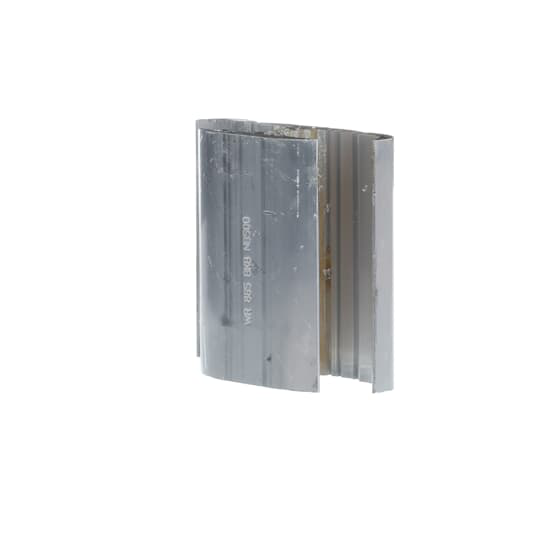

Image thumbnail 2

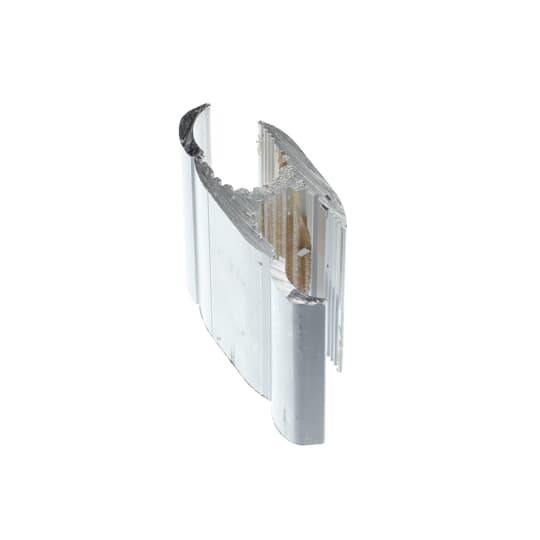

Image thumbnail 3
Email

Blackburn WR885 Compression Connector

Manufacturer: Blackburn / Thomas & Betts | Catalog # WR885 | Cooper Electric Part # 489688
$21.80 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens monday 7:00am et
28 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Brochure Product Catalog Page
Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-4/0 ACSR, 500-4/0 Str., Tap: 477 18/1-4/0 ACSR, 500-4/0 Str., Die: N 3 inches long

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Length 3 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Long Sleeve
Wire Size
Main: 477 (18/1)-4/0 ACSR or 500-4/0 STR AWG ; Tap: 477 (18/1)-4/0 ACSR or 500-4/0 STR AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786107186
Environmental Conditions
All Seasons / Conditions
Finish
Tin Plated
GTiN
00783786107186
Housing Material
Aluminum
Product UPC
78378610718
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
3 Inch
Features
  • Fold-in tabs provide positive tab interlock as tool closes.
  • Enables excellent connector contact without distorting the conductor's shape.
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • RUS accepted and complies with ANSI C119.4
Notes
  • Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.
  • Fig. 1
  • All die connectors are for use with hydraulic tools, 12-ton and greater.
