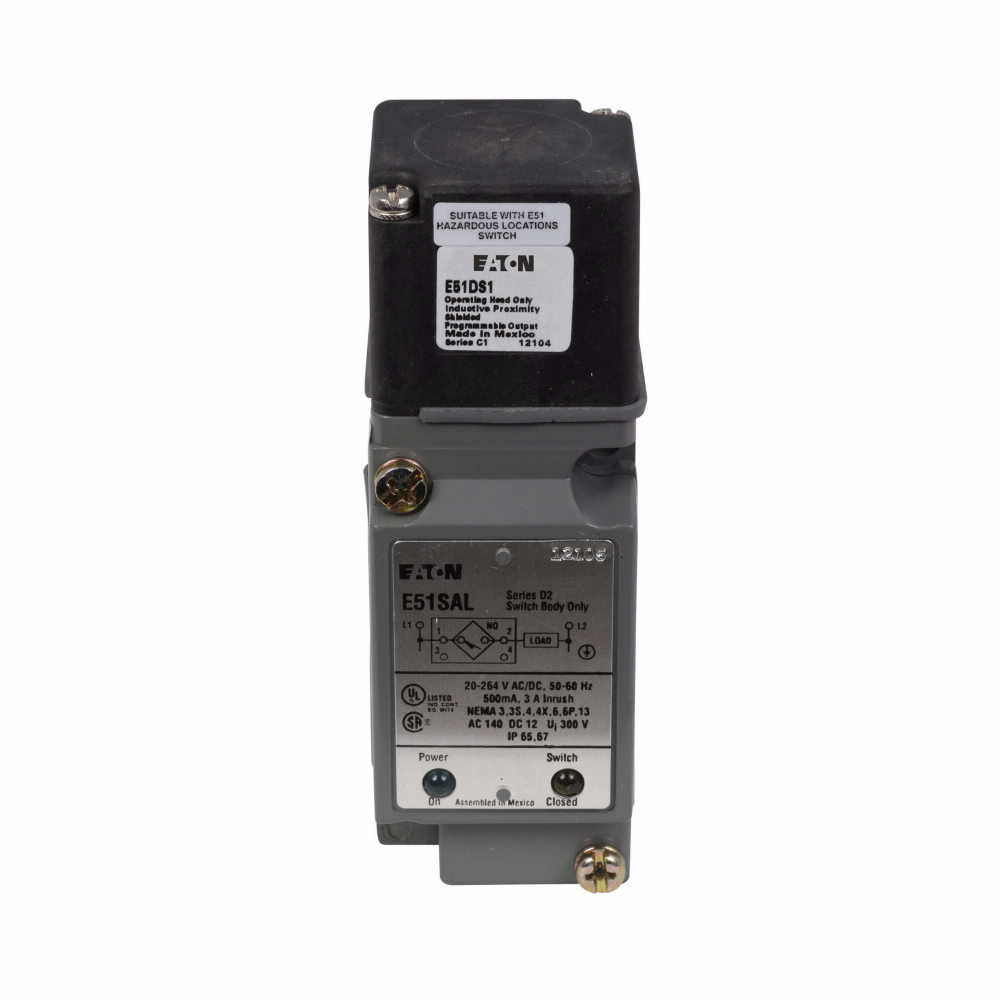

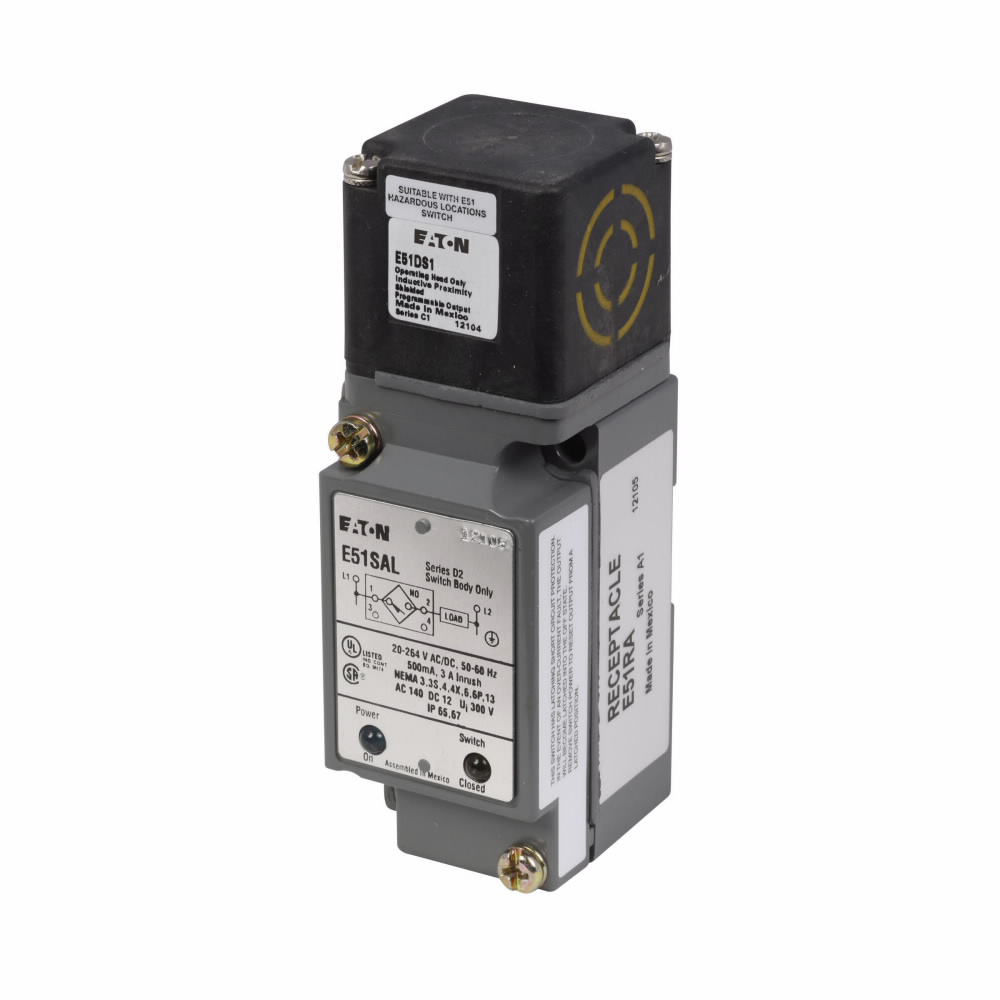

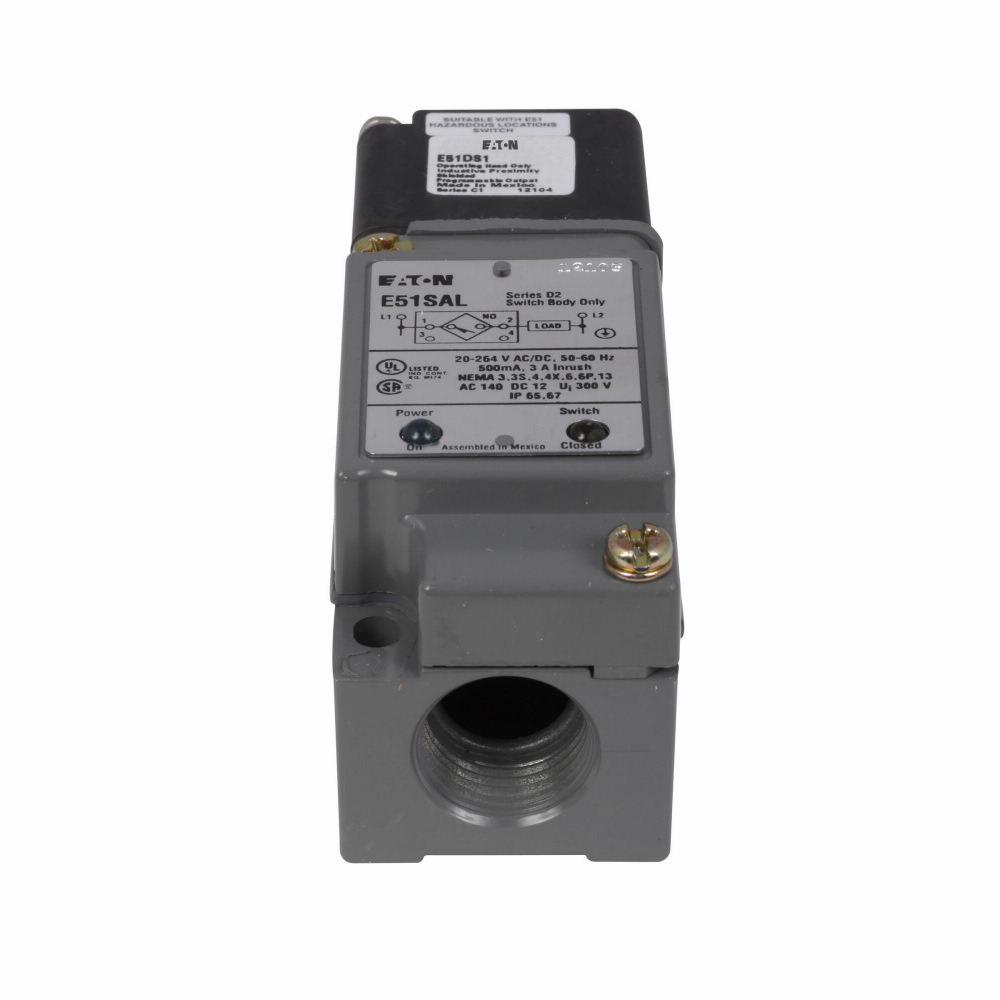

Eaton Electrical E51ALS1 20 to 264 VAC/VDC NO or NC Die-Cast Zinc 2-Wire Inductive Proximity Sensor

Manufacturer: Cutler-Hammer / Eaton | Catalog # E51ALS1 | Cooper Electric Part # 489024
$520.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Eaton E51 NEMA limit switch inductive proximity sensor, Inductive Proximity Sensor, E51 Modular, Right Angle, Shielded, Output ON (1 LED per output), Screw Terminals, 500 mA AC/DC solid state output, NO or NC, 20-264 Vac/dc

Technical Information

Applications
Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory
Connection Type
Screw Terminal
Contact Configuration
NO/NC
Enclosure Material
Zinc Die Cast
Input Voltage
20 V
Material
Zinc Die Cast
Maximum Load Current
500 mA AC/DC
Mounting Type
DIN Rail
Operating Frequency
15 - 50 Hz
Operating Temperature
-13 To 158 degrees F
Output
1 NO - 1 NC
TC Connection
Screw Terminals
Temperature Rating
-13 to 158 degrees F
Type
Limit Switch Modular Style, Shielded, Right Angle/Single/Side Sensing
Voltage
20-264 VAC/VDC

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113312736
Environmental Conditions
95% Non-Condensing Relative Humidity
GTiN
00782113312736
Product UPC
78211331273
Weight
1.05 lb

Dimensions

Height
1.78 Inch
Length
4.53 Inch
Width
1.54 in
