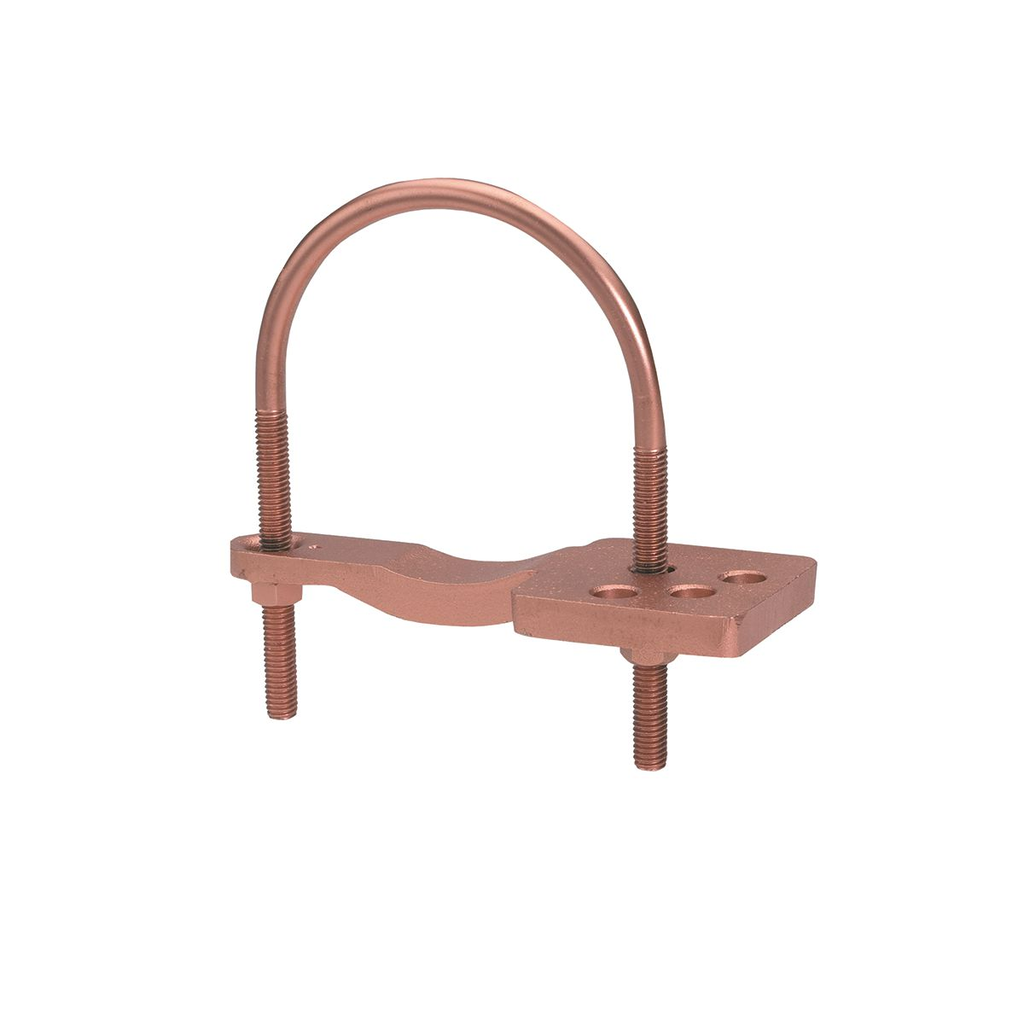

Product image for Burndy GAR3902TC Mechanical Grounding Connector, For 2 Hole Lug to Water Pipe or Rod, 1/2" - 1" Pipe, 3/8" Stud
Image thumbnail 0
Image thumbnail 1
Email

Burndy GAR3902TC Mechanical Grounding Connector, For 2 Hole Lug to Water Pipe or Rod, 1/2" - 1" Pipe, 3/8" Stud

Manufacturer: Burndy | Catalog # GAR3902TC | Cooper Electric Part # 485788
$156.01 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Mechanical Grounding Connector, For 2 Hole Lug to Water Pipe or Rod, 1/2" - 1" Pipe, 3/8" Stud.

Technical Information

Applications
For Direct Burial, Water Pipe As Well As Structural And Reinforcing Rod Shapes
Bolt Size
3/8-16
Material
Copper
Plated?
No
Plating Type
Unplated
Type
Rod or Tube Clamp with Mounting Pad

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810241103
GTiN
00781810241103
Product UPC
78181024110

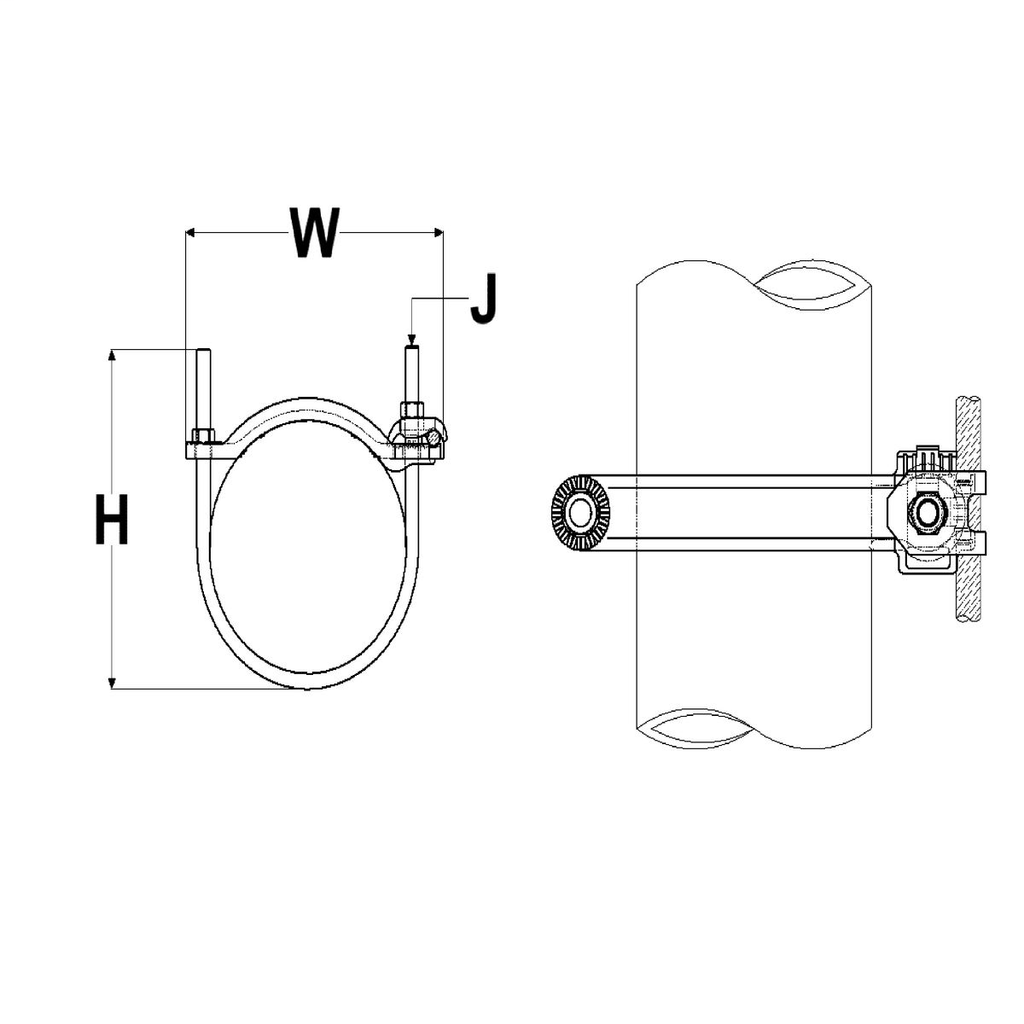

Dimensions

Height
3-1/2 Inch
Length
2-1/2 Inch
Overall Length
2.50 in
Width
2.5 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
CSA
No
Features
  • Large, smooth connector contact area between pipe and ground clamp to maximize contact area between connector and pipe
  • Pre-drilled pad for 2-3/8\" bolts on 1\" centers to allow for direct mounting of 2-hole compression terminals up to 750 kcmil to pipe
  • One-wrench installation
  • UL467 Listed for the US and Canadian Markets
