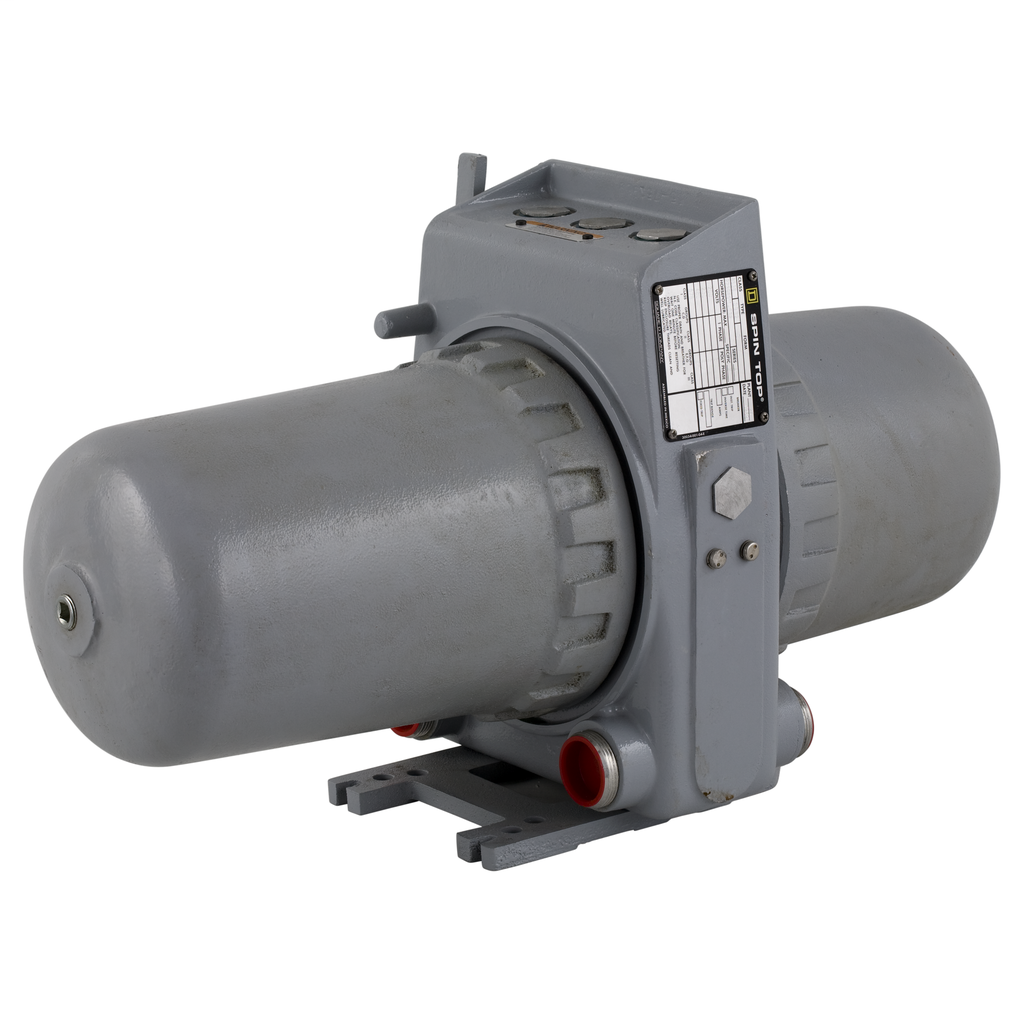

Product image for SQD 8536SBR2V02S STARTER 600VAC 18A
Image thumbnail 0
Image thumbnail 1
Email

SQD 8536SBR2V02S STARTER 600VAC 18A

Manufacturer: Square-D / Schneider | Catalog # 8536SBR2V02S | Cooper Electric Part # 485419
$2,453.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Used for full voltage starting and stopping AC squirrel cage motors

Technical Information

Amperage
18 Amp
Applications
USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Control Circuit Voltage
110 V
Enclosure
NEMA 7/9 CAST ALUMINIUM TYPE: SPIN TOP
Line Rated Current
18 A
NEMA Size
0
Number of Phases
3 Phase
Number of Poles
3 Pole
Power Supply
120VAC@60HZ - 110VAC@50HZ
Rated Power
3 hp
Reset Type
MELTING ALLOY 3 THERMAL UNITS
Size
0
TC Connection
SCREW CLAMP TERMINALS
Type
NO CONTROL UNITS,STARTER
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901904489
GTiN
00785901904489
Product UPC
78590190448

Dimensions

Warranty Length
1.5 yr

Certifications and Compliance

Certifications
CSA,NEMA,UL
Country of Origin
Mexico
  • Flexible with four overload relays: Motor Logic™ solid state, TeSys™ T communication solid state, Adapted Bimetal, and melting alloy types
  • Simple catalog number for easy and fast ordering
  • Serviceable by replacing contacts and coils rather than replacing the entire product; simply service the part that is worn out.
  • Customizable with hundreds of combinations of contactors, starters, combination starters, pump panels, two-speed starters, reduced- voltage starters, enclosure options, and accessories
  • Robust design and reliable build for long mechanical life and electrical endurance
  • Irrigation
  • Commercial Office Buildings
  • Construction
  • Building Automation
  • Industrial Markets
  • Infrastructure
