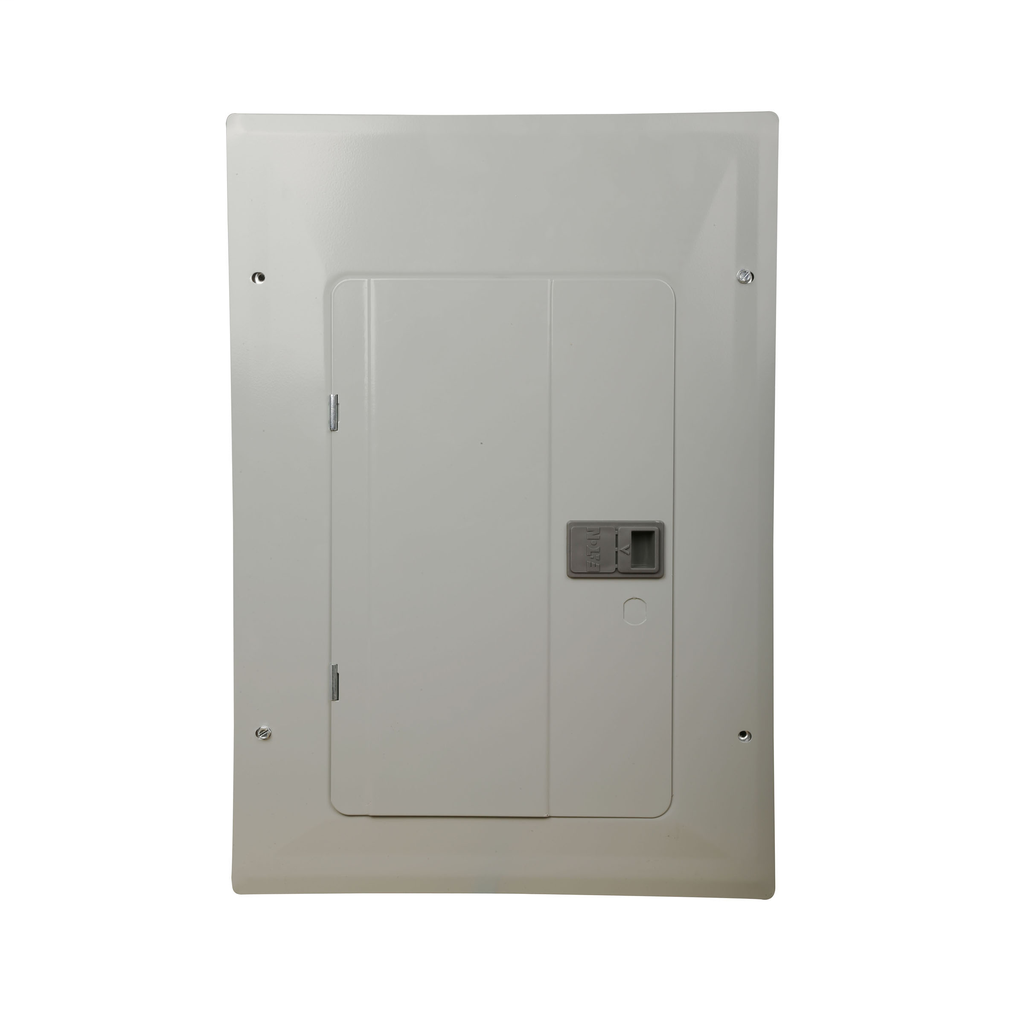

Eaton Electrical BR1620B100 120/240 VAC 100 Amp 1-Phase 3-Wire 1 Inch Main Breaker Load Center

Manufacturer: Cutler-Hammer / Eaton | Catalog # BR1620B100 | Cooper Electric Part # 485139
$468.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
BR style 1-inch loadcenter, main circuit breaker, no feed-thru lugs, 100A, single-phase, 20-pole, 20 circuits, 16 spaces, 120/240V, #4-1/0 AWG Cu/Al at 60.C or 75.C wire, NEMA 1 enclosure, c1 box size

Technical Information

Amperage
100 Amp
Bus Material
Aluminum
Conductor Size
4-1/0 AWG
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
10 kAIC
Mounting Type
Combination
NEMA Size
1
Number of Circuits
20
Number of Phases
1 Phase
Number of Spaces
16
Number of Wires
3 Wire
Size
C1
Standard
UL 50,UL 50,UL 67,UL 67
Type
Main Circuit Breaker
Voltage
120/240 Volt
Wire Size
4-0 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786676444002
GTiN
00786676444002
Product UPC
78667644400

Dimensions

Height
47 Inch
Length
4-1/2 Inch
Width
15.5 in
Certifications
  • UL 50
  • UL 67
Warranties
  • 10 year
