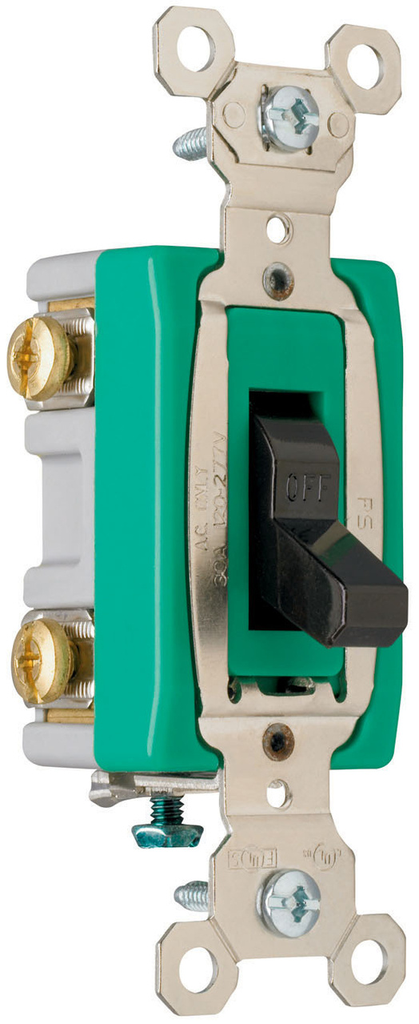

Product image for Pass & Seymour PS30AC2-HP 30 Amp 120/277 VAC 2-Pole 1-Phase AC Manual Motor Starting Switch
Email

Pass & Seymour PS30AC2-HP 30 Amp 120/277 VAC 2-Pole 1-Phase AC Manual Motor Starting Switch

Manufacturer: Pass & Seymour / Legrand | Catalog # PS30AC2HP | Cooper Electric Part # 48301
$74.08/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Double-Pole, Single Phase Switch, Back and Side-Wire, HP Rated. 30A, 277V.

Technical Information

Action
On/Off
Actuator
Toggle
Amperage
30 Amp
Applications
Industrial
Contact Rating
120 V
Grade
Industrial
Number of Poles
2 Pole
Size
3.3"
Type
2 Position
Voltage
120 Volt
Wattage
2 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007195972
Color
Brown
Finish
Matte
GTiN
00785007195972
Product UPC
78500719597

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • High horsepower rating, up to 3HP for heavy-duty applications. Compact design provides ease of installation. Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life.
  • Made in USA. Box lug terminals. Wire pockets and thick wall arc barriers. Cold-rolled steel NEMA 3R enclosure with polyester urethane finish conforms to OSHA lockout requirements.
  • Type 3R enclosure has 2-1/2 inch, 3/4 inch, and 1 inch concentric knockouts on bottom. Accepts #4 AWG. cULus listed.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
