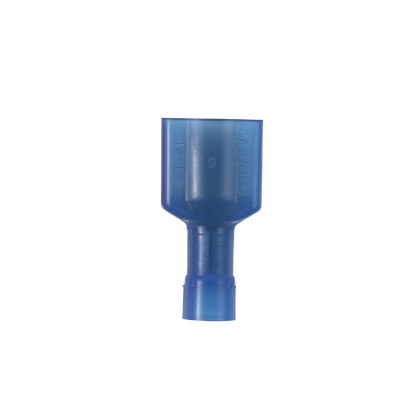

Product image for Panduit DNF14-250FIMB-Q Loose Piece Disconnect
Email

Panduit DNF14-250FIMB-Q Loose Piece Disconnect

Manufacturer: Panduit Corp | Catalog # DNF14-250FIMB-Q | Cooper Electric Part # 482046
$195.37 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Engineering Drawing Product Spec Sheet
The vibration resistant male tab disconnect is made of brass and is nickel-plated. It is fully insulated in a blue, oversized nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.91" (23.1 mm) long and 0.45" (11.4 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bottles of 25.

Technical Information

Barrel Type
Butted Seam
Color Coding
Blue
Conductor Size
14 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Standard
Temperature Rating
221 degrees F
Type
Disconnect
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983120352
Color
Blue
Finish
Plated
GTiN
00074983120352
Product UPC
07498312035
UNSPSC
39121409

Dimensions

Height
0.36 Inch
Overall Length
0.91 in
Width
0.45 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
