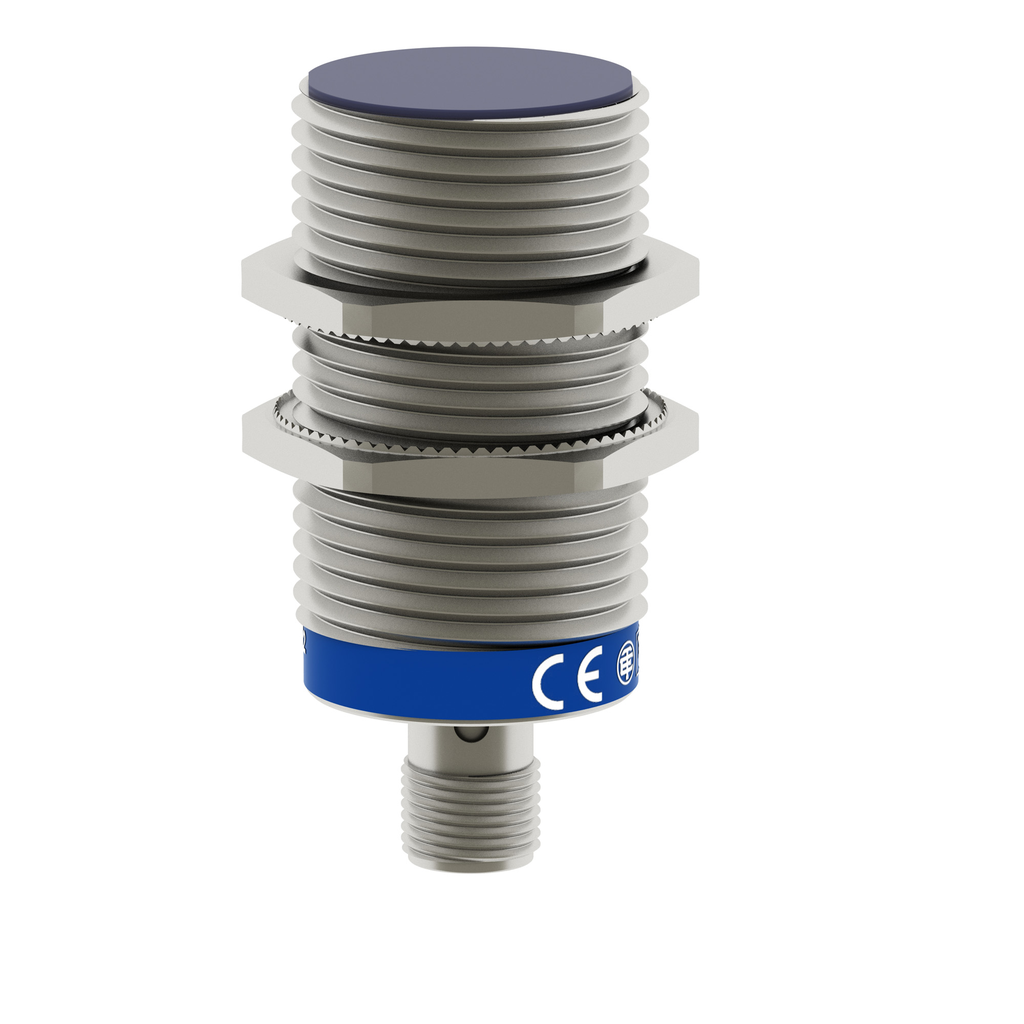

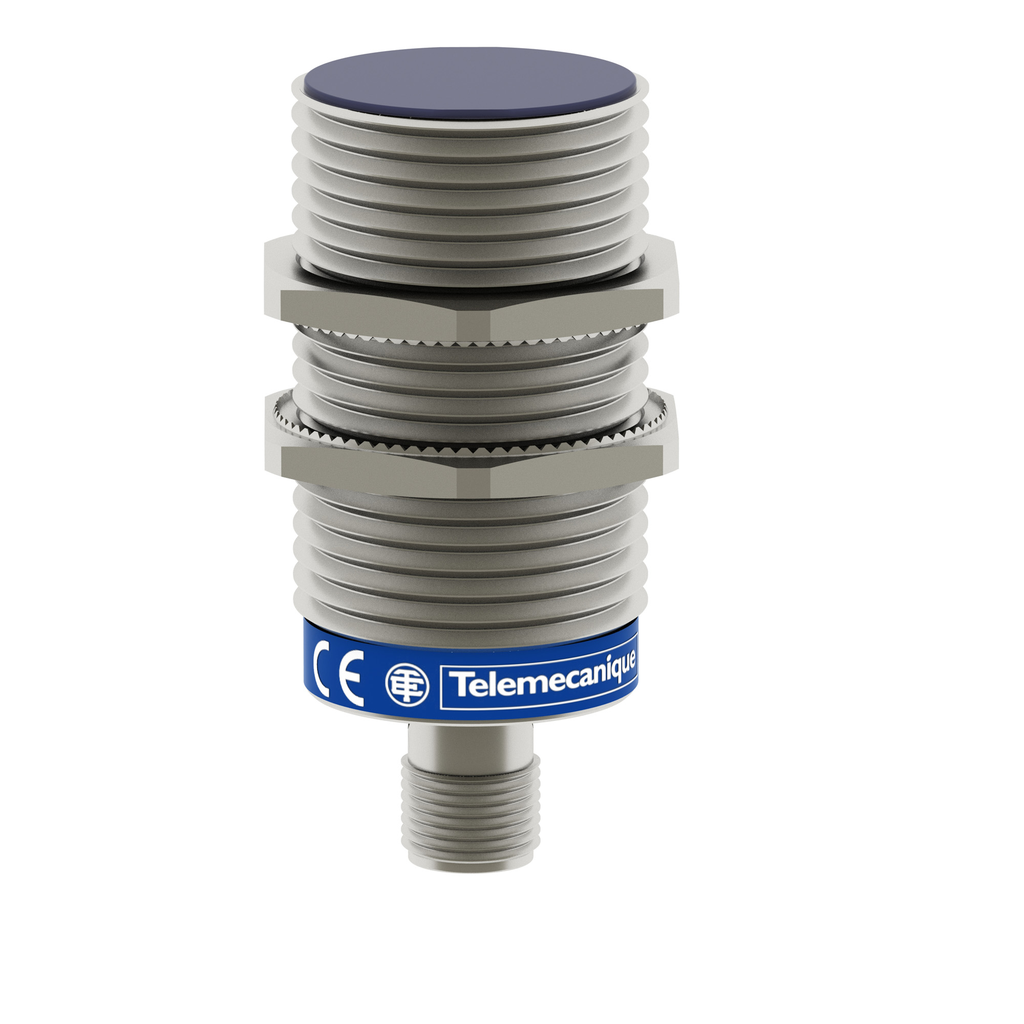

Product image for TES XS630B1MAU20 Inductive proximity sensors XS, inductive sensor XS6 M30, L73mm, brass, Sn15mm, 24...240VAC/DC, 1/2"
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

TES XS630B1MAU20 Inductive proximity sensors XS, inductive sensor XS6 M30, L73mm, brass, Sn15mm, 24...240VAC/DC, 1/2"

Manufacturer: TES Electric | Catalog # XS630B1MAU20 | Cooper Electric Part # 480827
$161.84/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
10 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 24V to 240V AC/DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP67 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+70.C). It is CSA, UL certified.

Technical Information

Applications
-
Body Type
Fixed
Enclosure
NICKEL PLATED BRASS
Enclosure Material
Brass
Indicator
OUTPUT STATE 1 LED YELLOW)
Material
Metal
Net Weight
0.165 kg
Operating Temperature
-25-70 Adegrees C
Sensing Range
> 0.31...0.59 in (> 8...15 mm)
Sensor Type
Inductive proximity sensor
Size
73 mm
Storage Temperature
-40-85 degrees C
Thread Type
M30 X 1.5
Type
CYLINDRICAL M30,INDUCTIVE PROXIMITY SENSOR

Manufacturer Information

Brand
Telemecanique
Sub Brand
XS6

General Product Info

12-Digit UPC
389110147646
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT, CORROSION RESISTANT AND SUBMERSIBLE (INDOOR/OUTDOOR)
GTiN
03389110147643
Product UPC
78590150530
Weight
0.36 lb

Dimensions

Length
73 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
Indonesia
