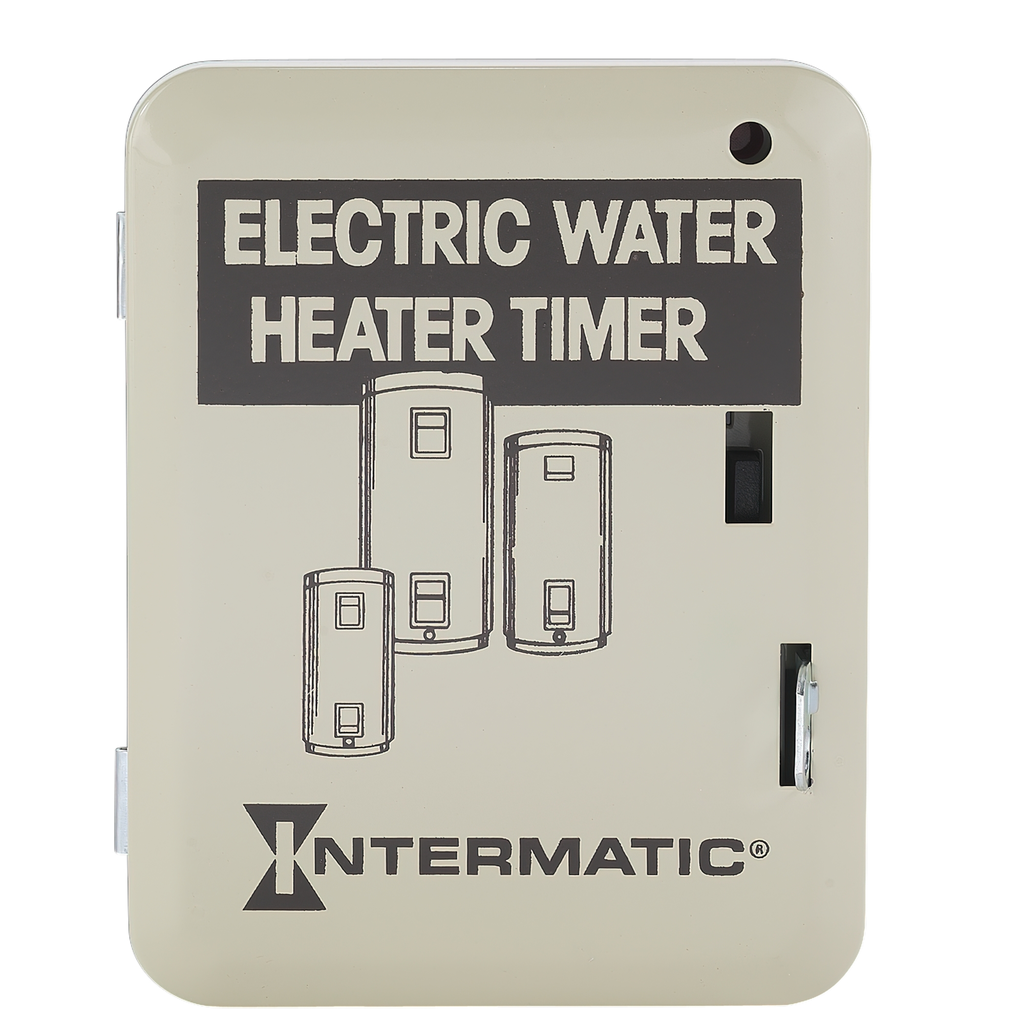

Product image for INT-MAT WH21 Electric Water Heater
Image thumbnail 0
Image thumbnail 1
Email

INT-MAT WH21 Electric Water Heater

Manufacturer: Intermatic, Inc | Catalog # WH21 | Cooper Electric Part # 476050
$171.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
With the easy-to-set push pin style levers, these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of 30 minutes, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.

Technical Information

Amperage
25 (Per Pole) AMP
Applications
Agriculture Feeders,Greenhouse Misting Control,Water Heater Control
Enclosure
NEMA Type 1 Indoor Steel
Max Operating Temperature
130 degrees F
Min Operating Temperature
-40 degrees C
Number of Poles
1 Pole
Operating Temperature
-40 to +130 DEG F, -40 to +54 DEG C
Standard
HVACR,CCSAus Certified,CULus
Switch Type
SPST
Type
Mechanical Water Heater Time Switch
Voltage
208-240 VAC
Wattage
6250 Watt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275007024
Color
Gray
GTiN
00078275007024
Product UPC
07827500702

Dimensions

Depth
3-1/4 Inch
Height
6-3/4 Inch
Warranty Length
1 yr
Width
5.25 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Two sets of ON/OFF trippers.
  • Enables shifting electricity use into off-peak hours to reduce energy costs.
  • Convenient external override switch.
  • Up to 12 ON/12 OFF events.
  • 30-minute switching time.
  • External override push button.
  • SPST (Single-Pole Single-Throw).
  • 25 A resistive load, 208-250 VAC, 60 HZ.
  • #14-10 gauge wire size.
  • NA
