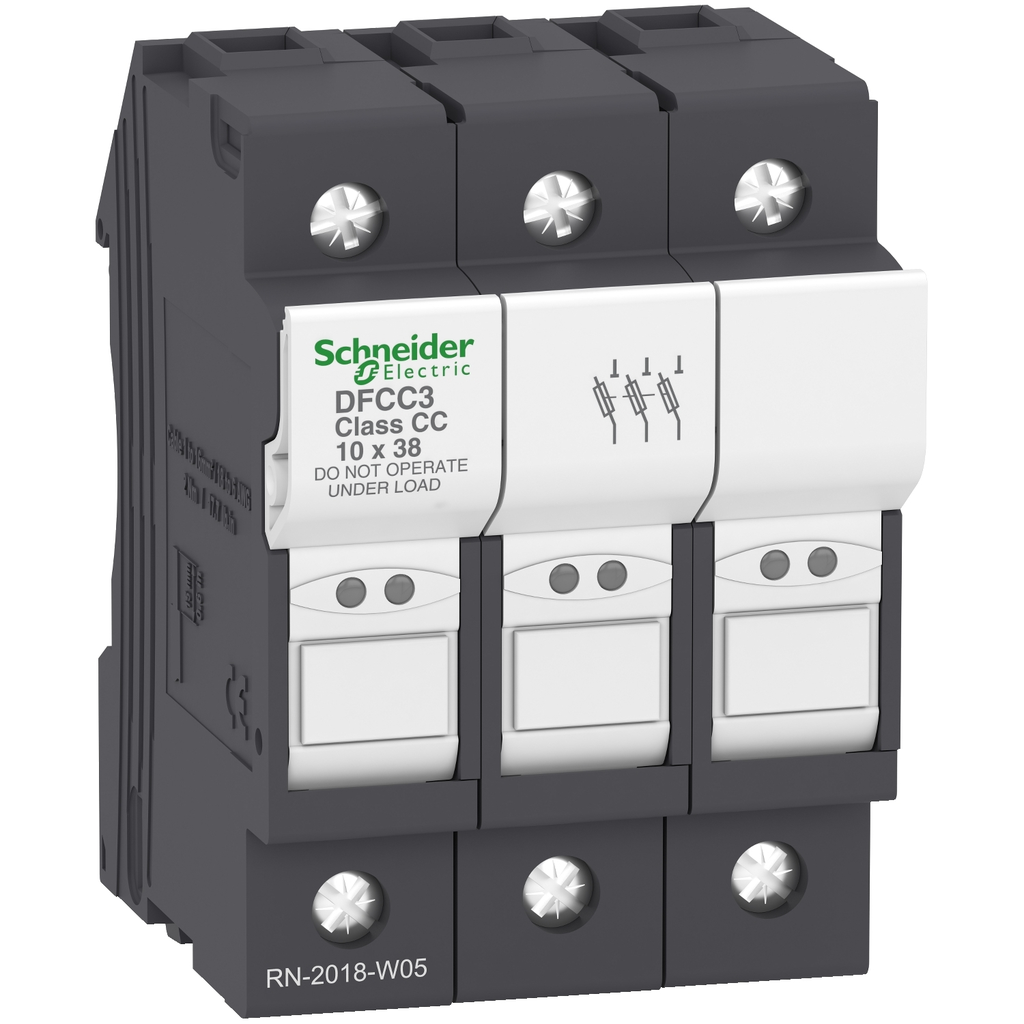

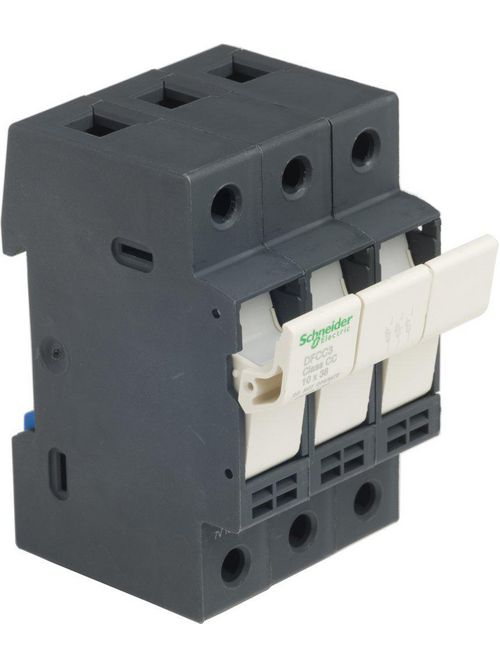

Product image for Square D DFCC3 52.5 x 88.5 mm 690 VAC 30 Amp 3-Pole Rail Mount Fuse Holder
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D DFCC3 52.5 x 88.5 mm 690 VAC 30 Amp 3-Pole Rail Mount Fuse Holder

Manufacturer: Square-D / Schneider | Catalog # DFCC3 | Cooper Electric Part # 475785
$86.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 30A/690V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA), Green Premium product (RoHS/REACh).

Technical Information

Amperage
30 Amp
Applications
CC,FUSE CARTRIDGE
Control Type
Toggle padlockable
Fuse Type
CC
Net Weight
0.126 kg
Operating Temperature
-40-70 Adegrees C WITH DERATING ABOVE 20Adegrees C
Size
2.40 in
Standard
CSA C22.2 No 4248-1,CSA C22.2 No 4248-4,UL 4248-1,UL 4248-4
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1-16 MMARIGID- SCREW CLAMP TERMINALS 2 1-6 MMARIGID- SCREW CLAMP TERMINALS 1 1-16 MMAFLEXIBLE WITH OR WITHOUT- SCREW CLAMP TERMINALS 2 1-6 MMAFLEXIBLE WITH OR WITHOUT
Type
Fuse carrier
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys DF

General Product Info

12-Digit UPC
389119407284
GTiN
03389119407281
Product UPC
78590168811
Weight
0.126 kg

Dimensions

Depth
61 mm
Height
79.5 mm
Warranty Length
18 mth
Width
52.5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer - www.P65Warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
France
Prop 65
  • WARNING: Cancer - www.P65Warnings.ca.gov
