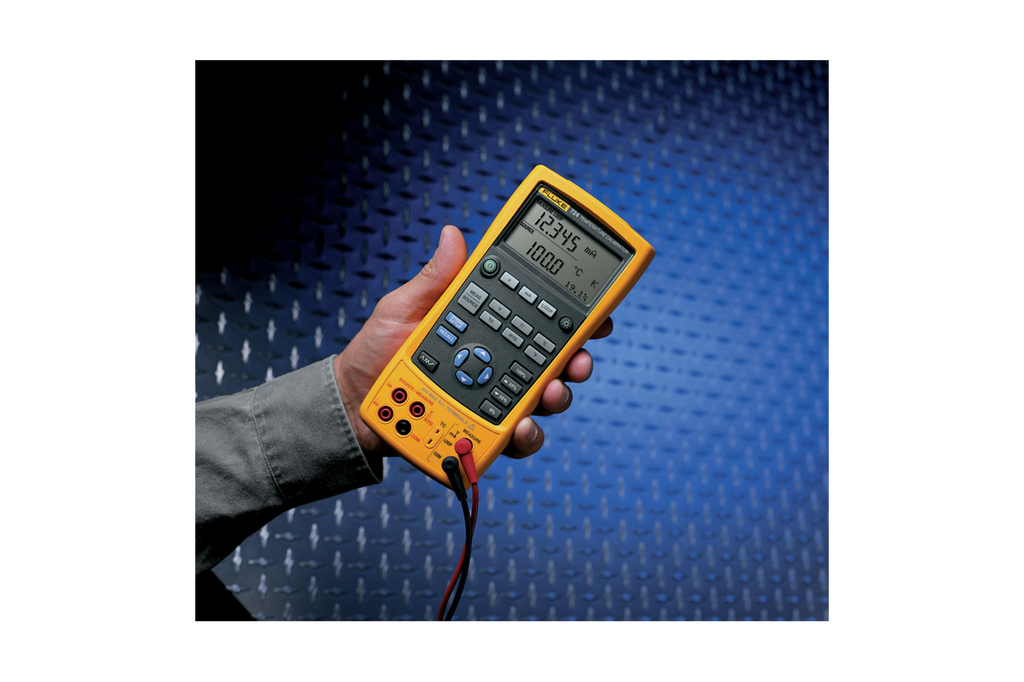

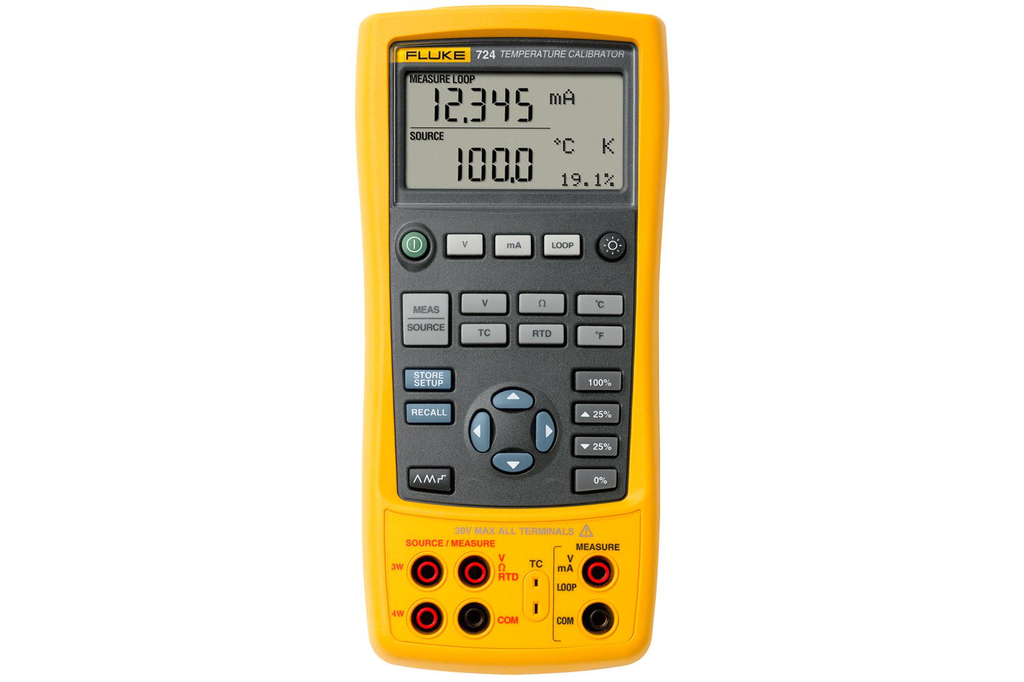

Fluke FLUKE-724 3200 Ohm Temperature Calibrator

Manufacturer: Fluke | Catalog # FLUKE-724 | Cooper Electric Part # 475655
$3,512.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Built for the masters of temperature. The Fluke 724: everything you need to troubleshoot and calibrate temperature. Now you can carry one tool to expertly test all the temperature sensors and transmitters in your plant. The Fluke 724 is the master.s answe

Technical Information

Applications
Fluke 724 Temperature Calibrator is a powerful and easy to use calibrator that can measure & source functions to test & calibrate most temperature instruments.
Operating Temperature
-10 To 55 degrees C
Rated Voltage DC
10 V
Safety Rated
1992,CSA C22.2 No. 1010.1
Storage Temperature
-20 To 71 degrees C
Type
Temperature Calibrator

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969083355
GTiN
00095969083355
Product UPC
09596908335
Weight
650 g

Dimensions

Warranty Length
3 yr
Other Useful Features
  • A bright backlight to enable you to work in poor light
  • Large battery capacity with four AA alkaline batteries
  • Easy to access battery door for quick changes
  • Performs fast linearity tests with 25% and 100% steps
  • Executes remote tests with auto step and auto ramp
  • Powers transmitters during test using loop power supply with simultaneous mA measurement
  • Features a compact, streamlined shape that makes it easy to carry
  • Offers a rugged, reliable design that stands up to field use
Key Features
  • A powerful, easy-to-use calibrator that measures and sources functions to test and calibrate most temperature instruments
  • Displays input and output simultaneously on the easy-to-read dual display
  • Measures RTDs, thermocouples, ohms, and volts to test sensors and transmitters
  • Source/simulates thermocouples, RTDs, volts, and ohms to calibrate transmitters
Product Overview
  • Fluke 724 Temperature Calibrator offers everything you need to troubleshoot and calibrate temperature
  • The Fluke 724 is powerful yet easy-to-use temperature calibrator that sources and measures 10 thermocouple types, and 7 RTD types, plus volts and ohms. It also measures mA while supplying loop power. You can use it to test and calibrate almost any temperature instrument so you only have to carry one tool to expertly test all the temperature sensors and transmitters in your plant.
  • The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power. The dual-line measure/source display lets you source temperature and view loop current at the same time. And with its simple, \"no menus controls, you'll be able to get all your testing done faster.
Includes
  • AC70A Test Clips
  • One pair of stackable test leads
  • TL75 Test Leads
  • CE and CSA Markings
  • Manuals in English, French, German, Spanish, Italian, Portugese, Korean, Chinese and Japanese
  • Users manuals on CD-ROM
  • NIST- traceable calibration report and data
