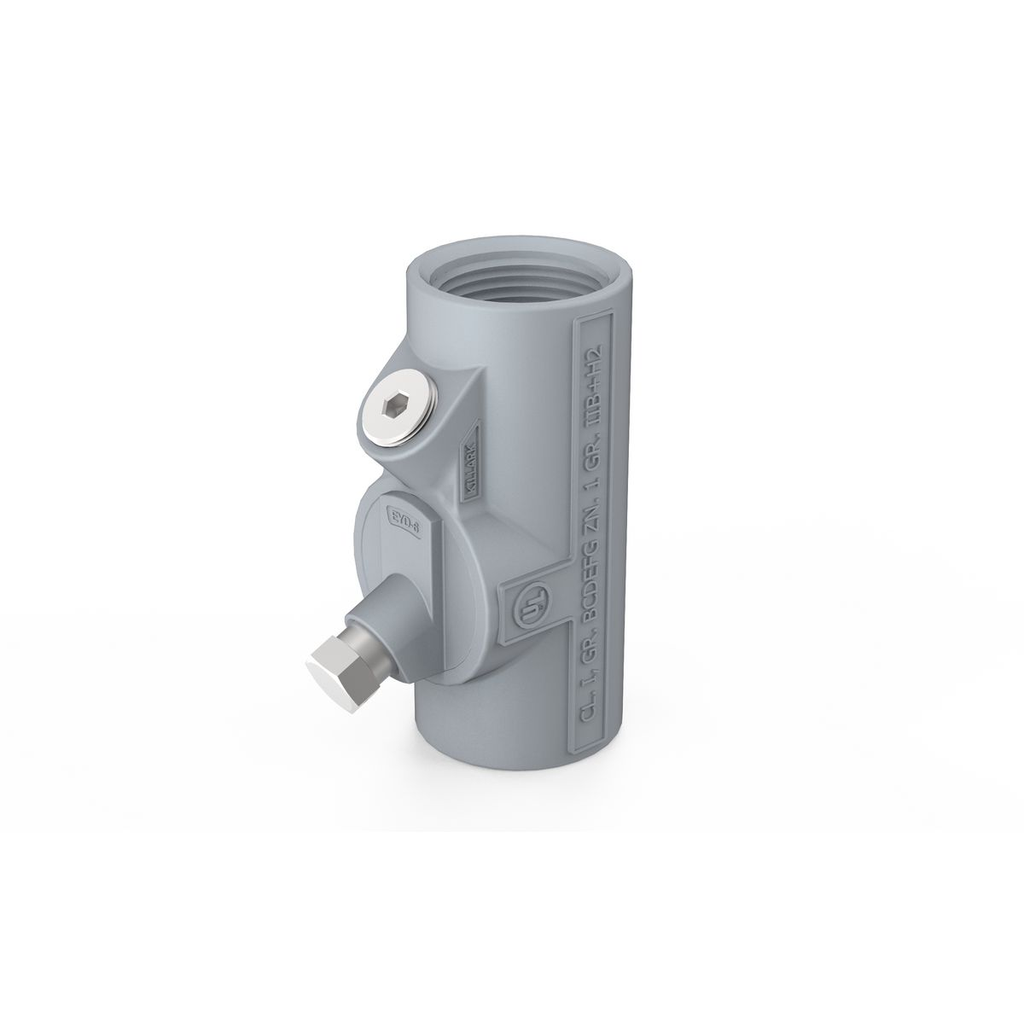

Product image for KLRK EYD-4 SEAL FTG AL 1-1/4" DRAIN
Email

KLRK EYD-4 SEAL FTG AL 1-1/4" DRAIN

Manufacturer: Killark | Catalog # EYD-4 | Cooper Electric Part # 473284
$192.48/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
Killark’s EYD drain sealing fittings offers options for installing in vertical positions for harsh hazardous locations where there is a probability that liquid or other condensed vapor may be trapped within enclosures or in the conduit raceway system. EYD series can make any sealing needs significant by offering a minimized turn radius for maximized installations. Options are available in copper-free aluminum and Duraloy iron with superior electro-statically applied powder coating for the best corrosive resistance.

Technical Information

Applications
Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
Hub Size
1 1/4 in
Material
Aluminum
Type
Aluminum sealing fitting

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936110745
Color
Gray
Finish
Powder Epoxy Paint,Powder Epoxy Paint
GTiN
00783936110745
Product UPC
78393611074

Dimensions

Height
5.4 Inch
Length
5 Inch
Width
10.000 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Threaded for Rigid Conduit or IMC
  • Tapered threads (NPT)
  • Simplified installation
  • Internal drainage path provides a visual means to ensure that the compound chamber is properly filled
  • Temporary plastic sleeve protects thread for drain/breather from contamination when pouring compound
  • Unique design enables installation of drain/breather right after compound is poured no waiting
  • Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC
  • Includes Drain Breather Fitting KDB-1
  • Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
