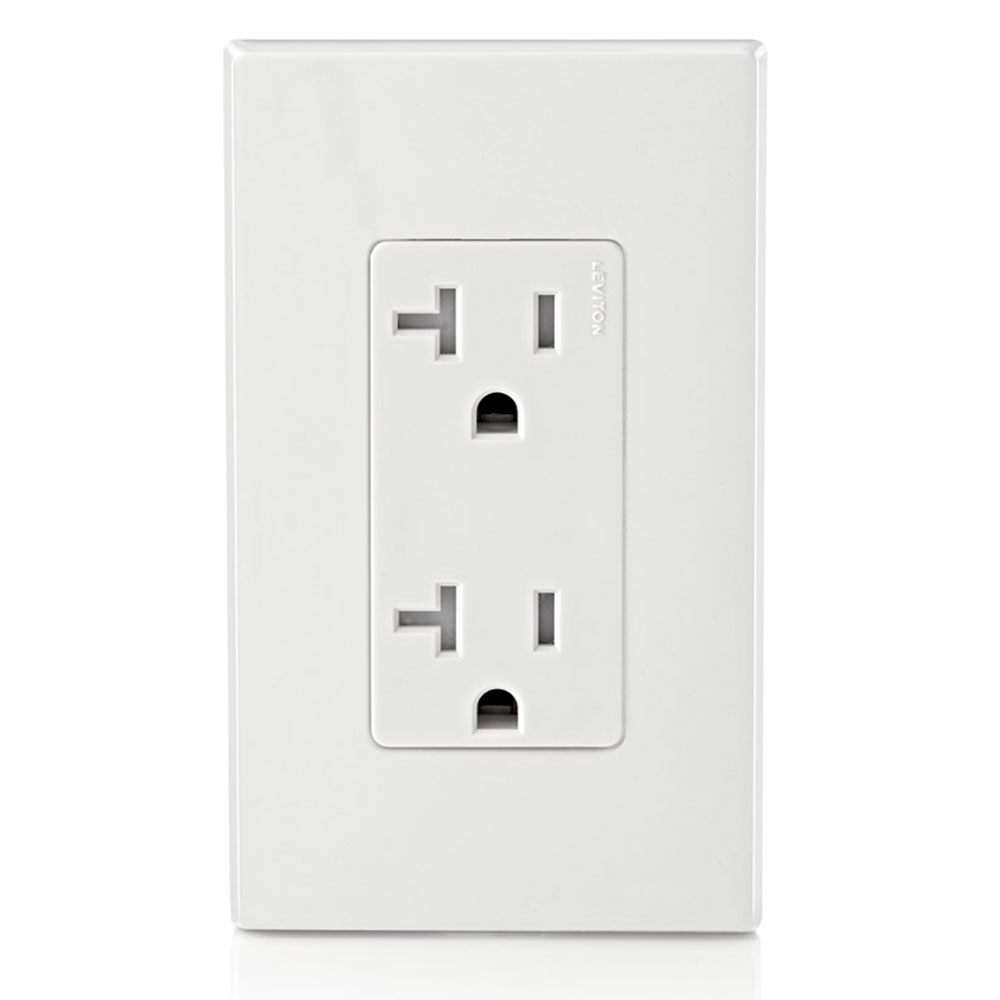

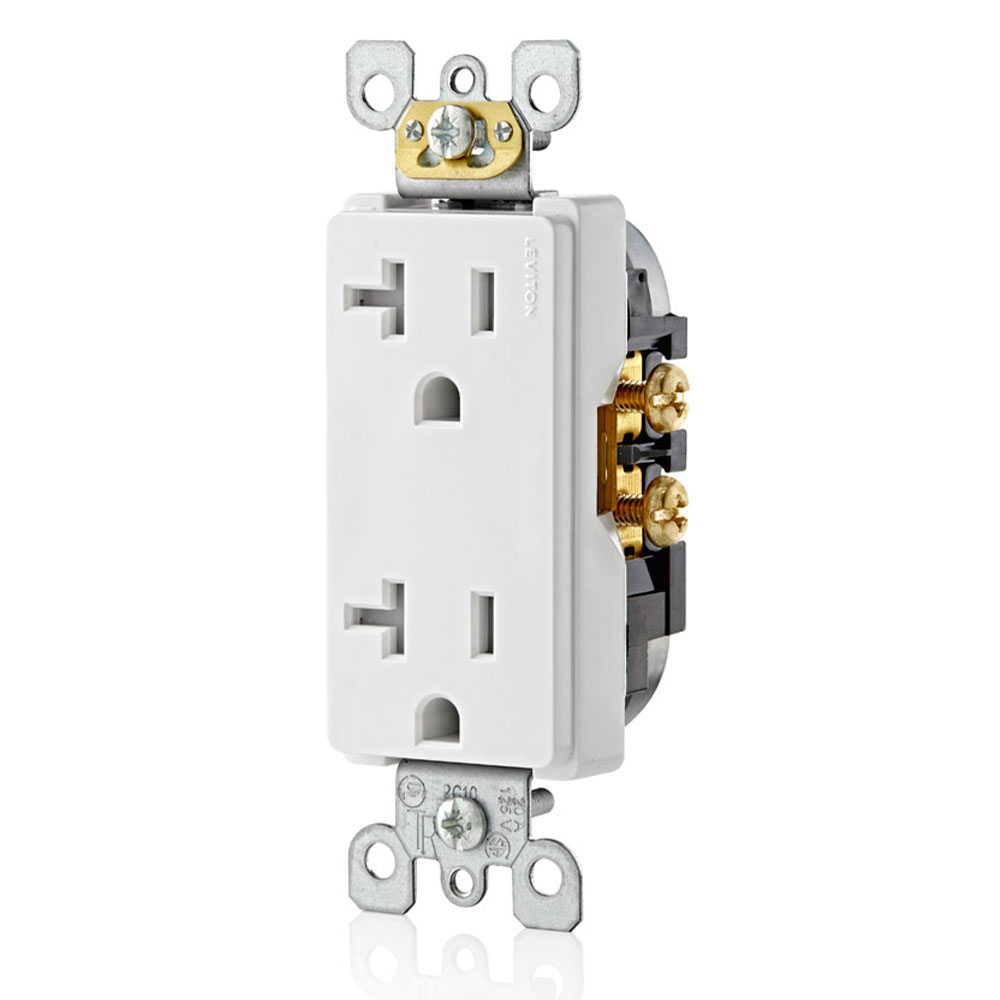

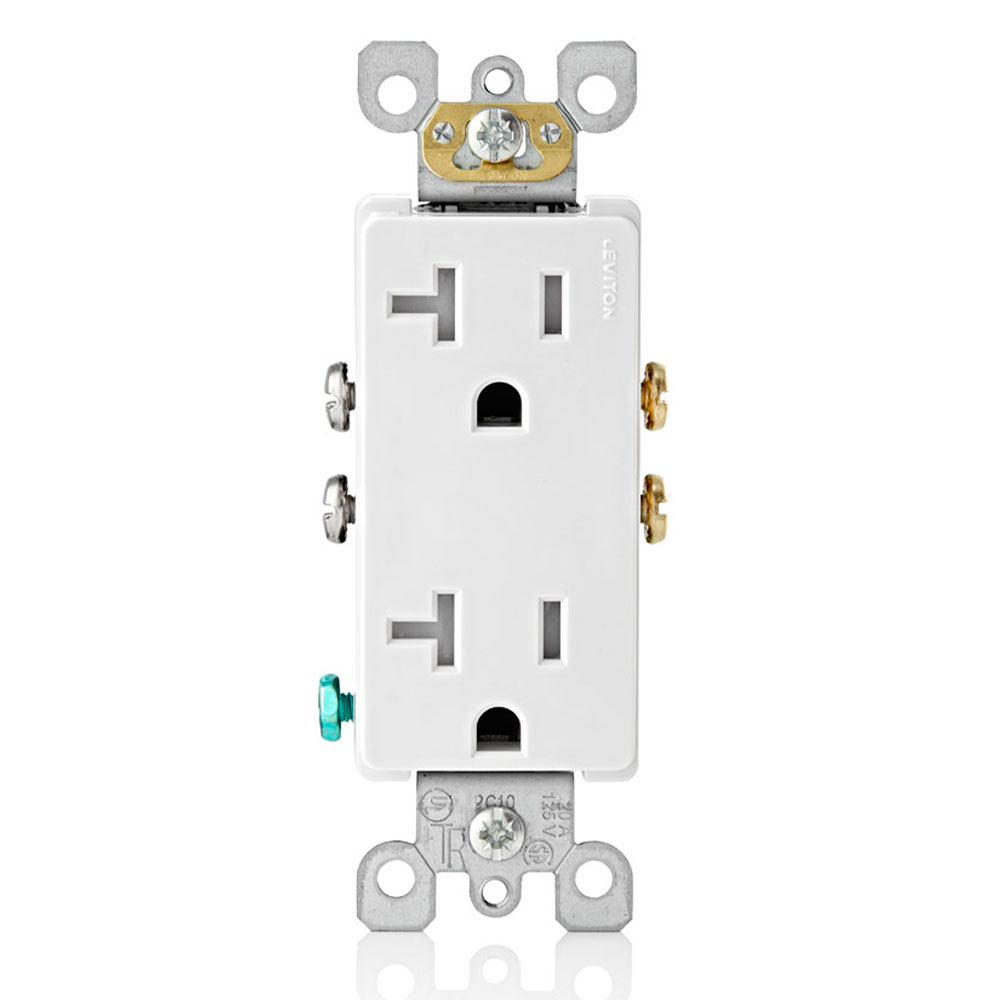

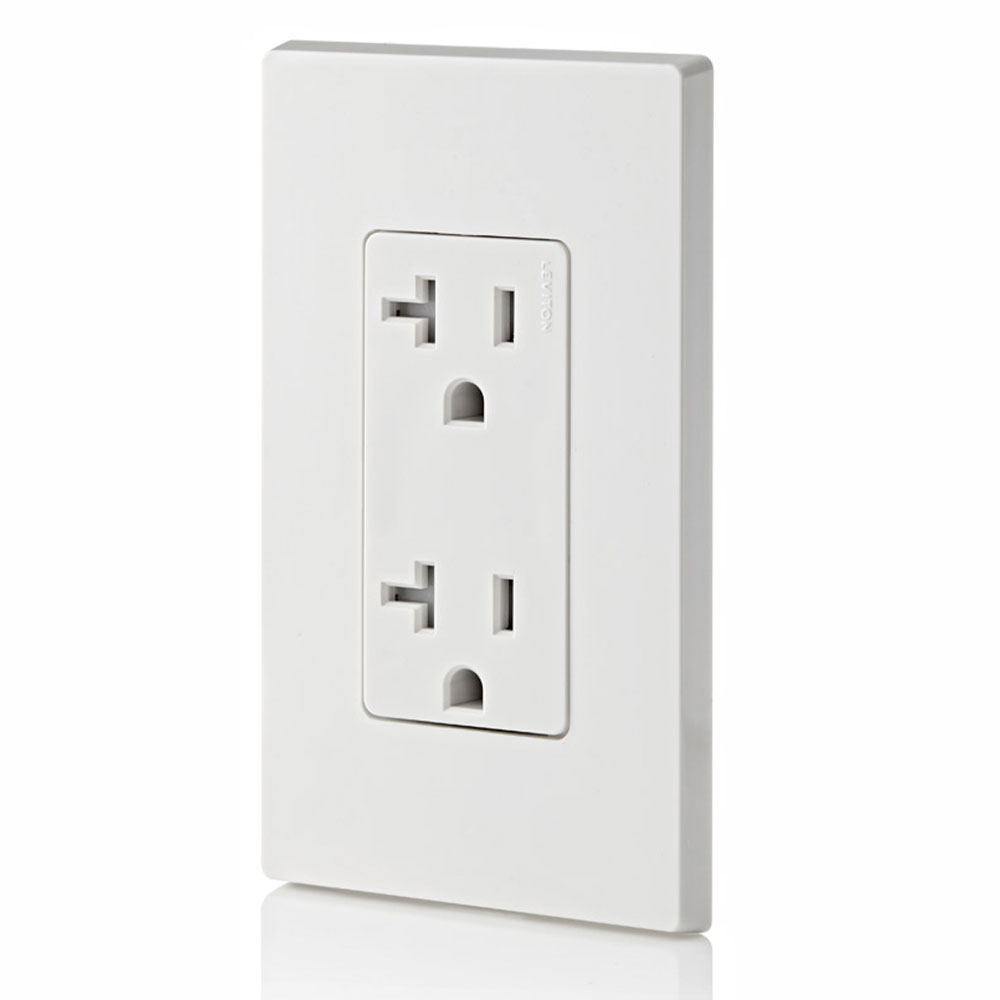

Leviton T5825-W 125 Volt 20 Amp 2-Pole 3-Wire NEMA 5-20R White Thermoplastic Straight Blade Duplex Receptacle

Manufacturer: Leviton Mfg Co | Catalog # T5825-W | Cooper Electric Part # 471495
$13.59/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
7 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant . White

Technical Information

Amperage
20 Amp
Applications
Commercial
Conductor Size
14 AWG
Connection Type
Quickwire Push-In and Side Wired
Grade
Commercial
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.2 H x 1.351 W x 1.184 D IN
Standard
CSA Certified (File 152105),NOM,UL (Listed)
TC Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Outlet, Tamper-Resistant
Voltage
125 Volt
Wire Size
14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477450352
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477450352
Product Type
Decora
Product UPC
07847745035

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
  • SAFE Tamper-Resistant offers protection from electrical shocks
  • DURABLE Impact-resistant thermoplastic nylon construction
  • EASY Side wiring for easy installation
  • CONVENIENT TR symbol on strap assures they meet the latest NEC requirements
Patents
  • US8242362
Related Products
  • T5825
  • T5825-E
  • T5825-GY
  • T5825-I
  • T5825-T
NEMA
  • 5-20R
Color Variations
  • Ivory
