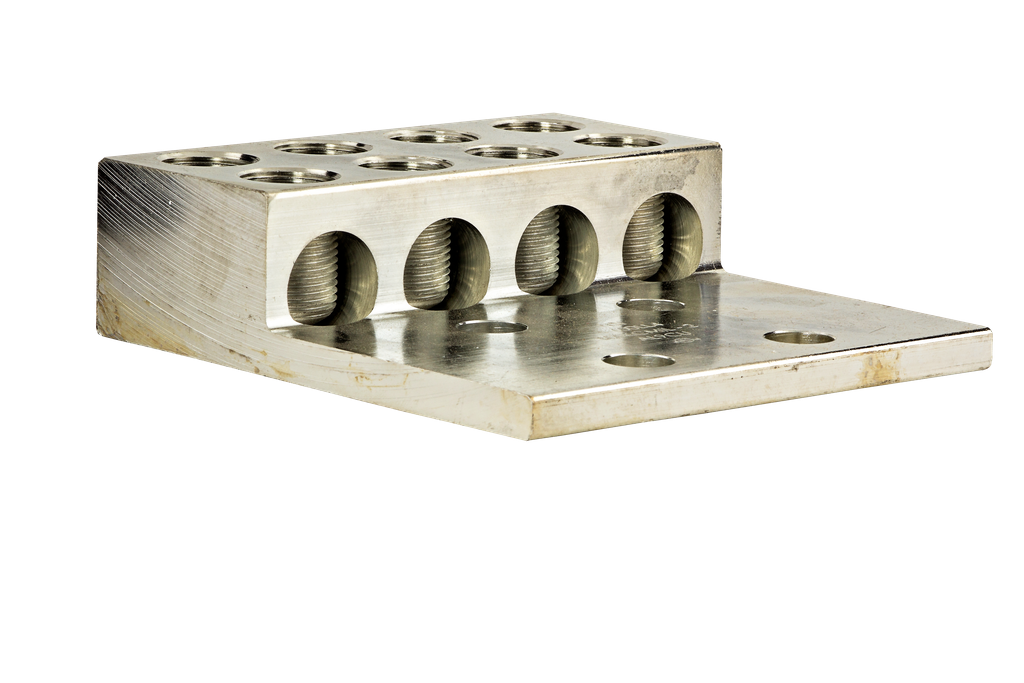

Product image for NSI 4-600LL4 Dble Screw Lug (4) 600
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

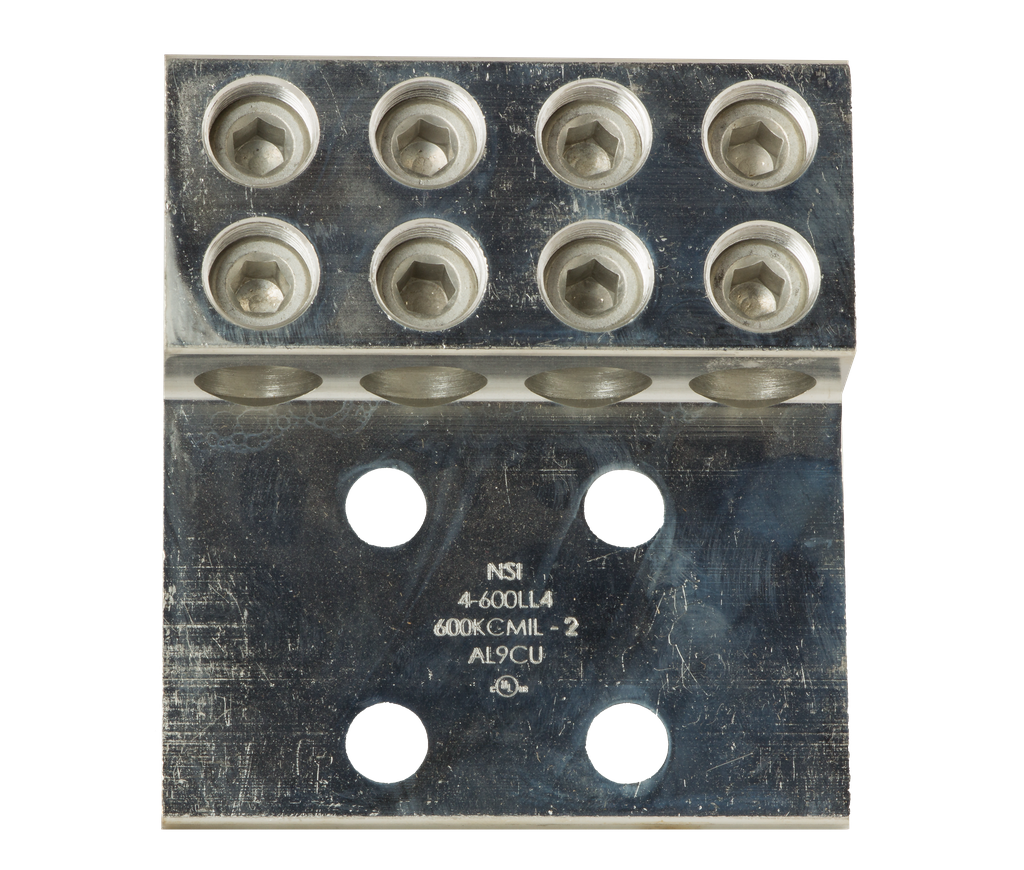

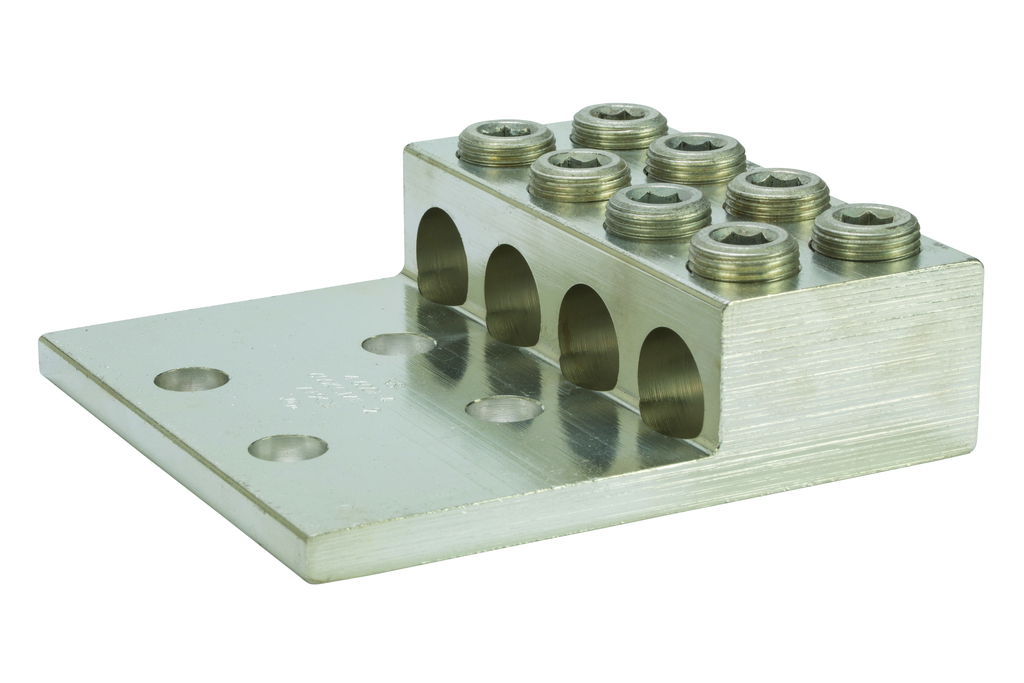

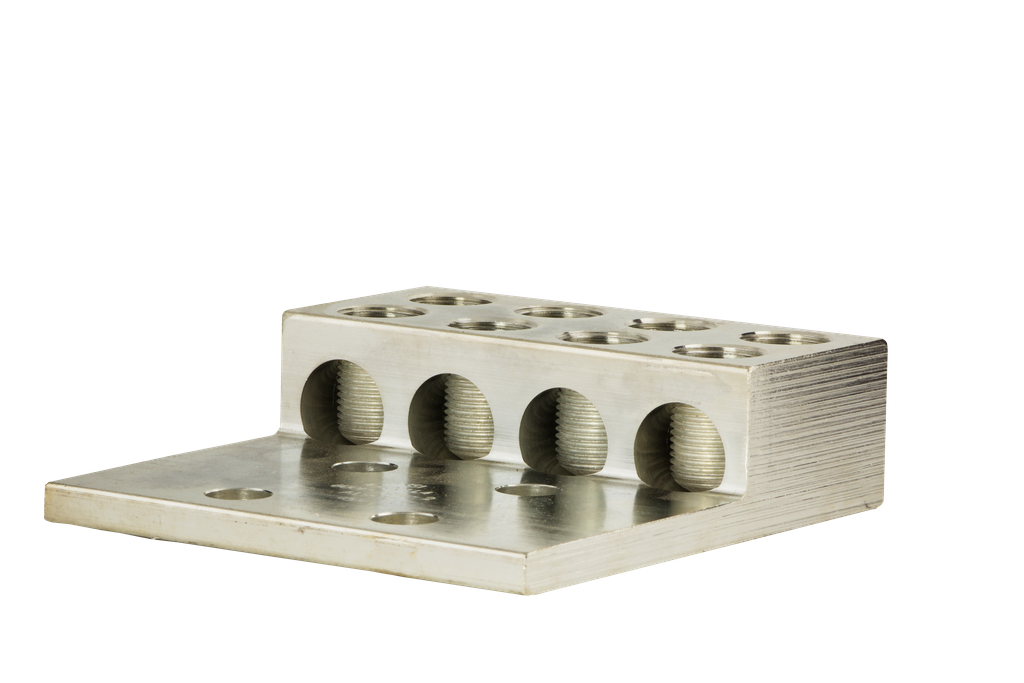

NSI 4-600LL4 Dble Screw Lug (4) 600

Manufacturer: NSi | Catalog # 4-600LL4 | Cooper Electric Part # 468969
$129.72 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
4 Port Double Set Screw Panelboard Lug 600 MCM - 2 AWG Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".

Technical Information

Applications
Wire Termination
Bolt Size
9/16 IN
Conductor Size
2 AWG
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
4
Number of Conductors
4
Number of Poles
1 Pole
Number of Ports
4
Standard
CULUS
Temperature Rating
90 degrees C
Type
Panelboard Lug
Voltage
600 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001764
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001764
Product UPC
66238100176

Dimensions

Height
1.51 Inch
Length
5-1/2 Inch
Warranty Length
1 yr
Width
5 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
Features
  • Large size set-screw connectors with multiple mounting, NEMA spaced holes for a secure, turn-prevent connection
  • Made of 6061T-6 aluminum alloy
  • Tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • All hole spacing is NEMA standard of 1.758 inch
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
