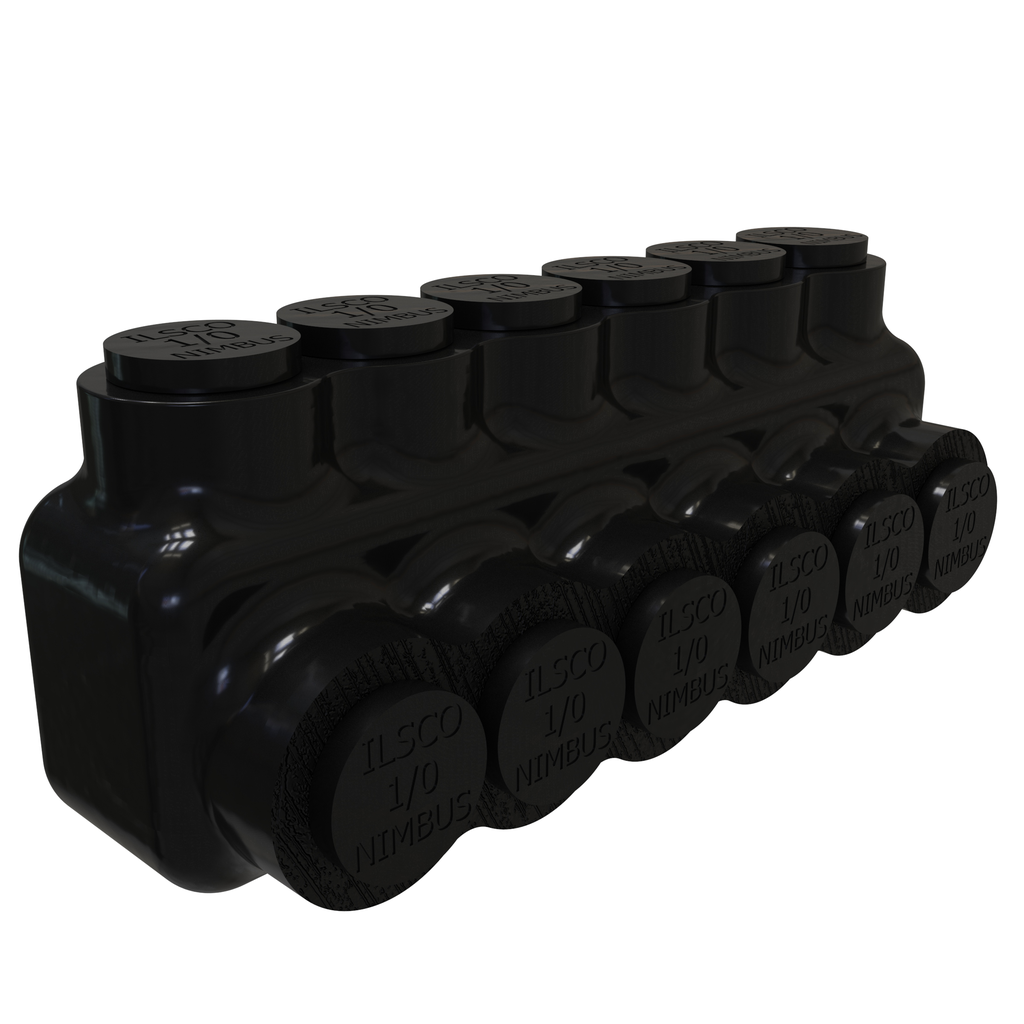

Ilsco PBTS-6-1/0 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 1/0-14, 6 Ports, Single Sided Entry, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PBTS-6-1/0 | Cooper Electric Part # 468669
$110.35/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Nimbus Insulated Multi-Tap Connector, Single Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 6 conductors, 6 ports/wireways, Plastisol insulation, Drive Type Main 3/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
170 Amp
Applications
Insulated Multi-Tap Connector, Single Sided Entry
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
6
Number of Ports
6
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
PBTS:INS BLK ONE SIDE TAP
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus

General Product Info

12-Digit UPC
783669079326
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
GTiN
00783669079326
Product UPC
78366907932
Weight
0.38 lb

Dimensions

Height
1.627 Inch
Length
4.123 Inch
Width
1.599 in
