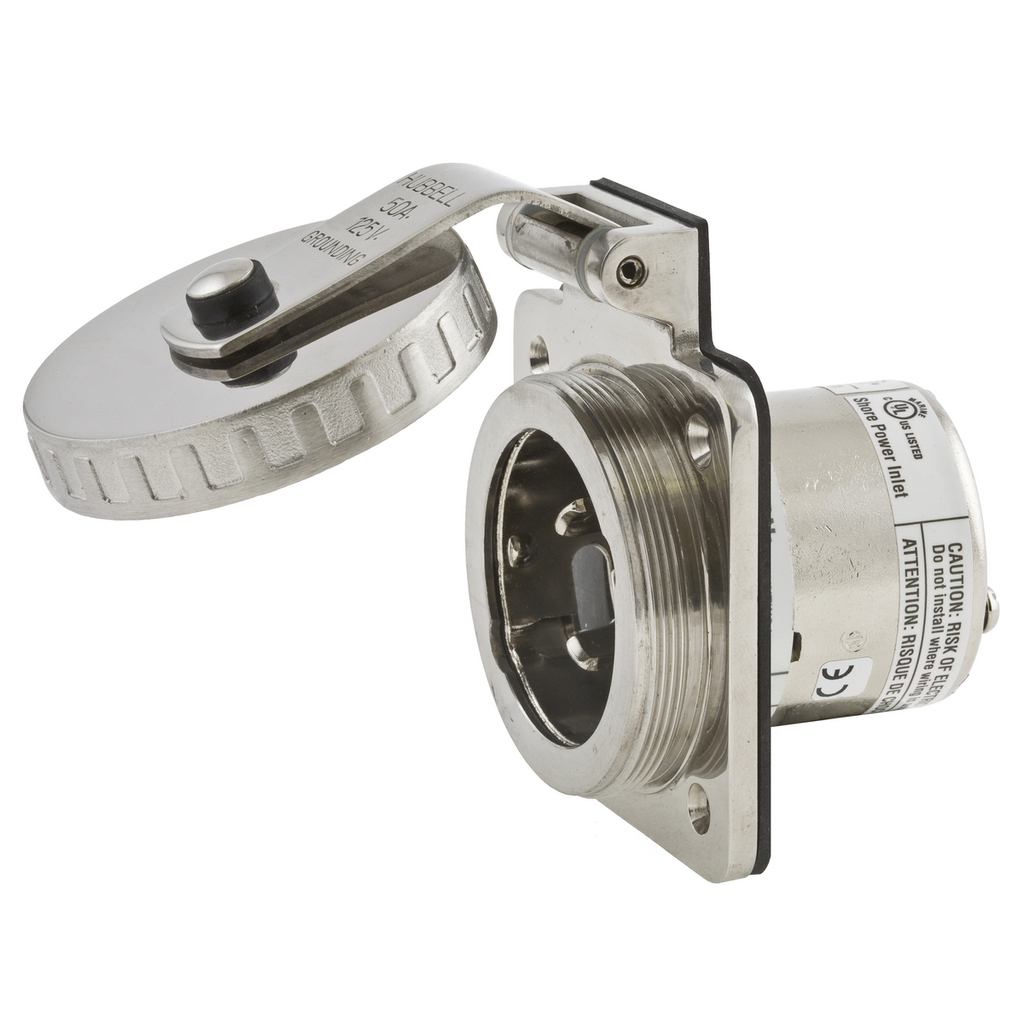

Product image for HCI HBL503SS SHORE POWER INLET, 50A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

HCI HBL503SS SHORE POWER INLET, 50A

Manufacturer: Hubbell Wiring Device | Catalog # HBL503SS | Cooper Electric Part # 463092
$473.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Locking Devices, Twist-Lock®, Marine Grade, Shore Power Inlet, 50A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Chrome Plated Brass

Technical Information

Amperage
50 Amp
Applications
Marine Wiring Devices
Conductor Size
6 AWG
Current
50 Amp
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Rating
125 V
Size
Standard Sized
Standard
UL
TC Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Hull Mount, Single, Locking, Marine Grade
Voltage
125 Volt
Wattage
6250 Watt
Wire Count
3
Wire Size
6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585040578
Color
Stainless
Environmental Conditions
Watertight
GTiN
00783585040578
Product UPC
78358504057
Weight
1.9 lb

Dimensions

Height
3.7 Inch
Length
9.1 Inch
Width
5.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • New quick connect with backwards compatibility
  • Self-closing Friction Tight Cover
  • Neoprene gasket on underside of cover for sealing
  • Rear enclosure is nickel plated for corrossion resistance
