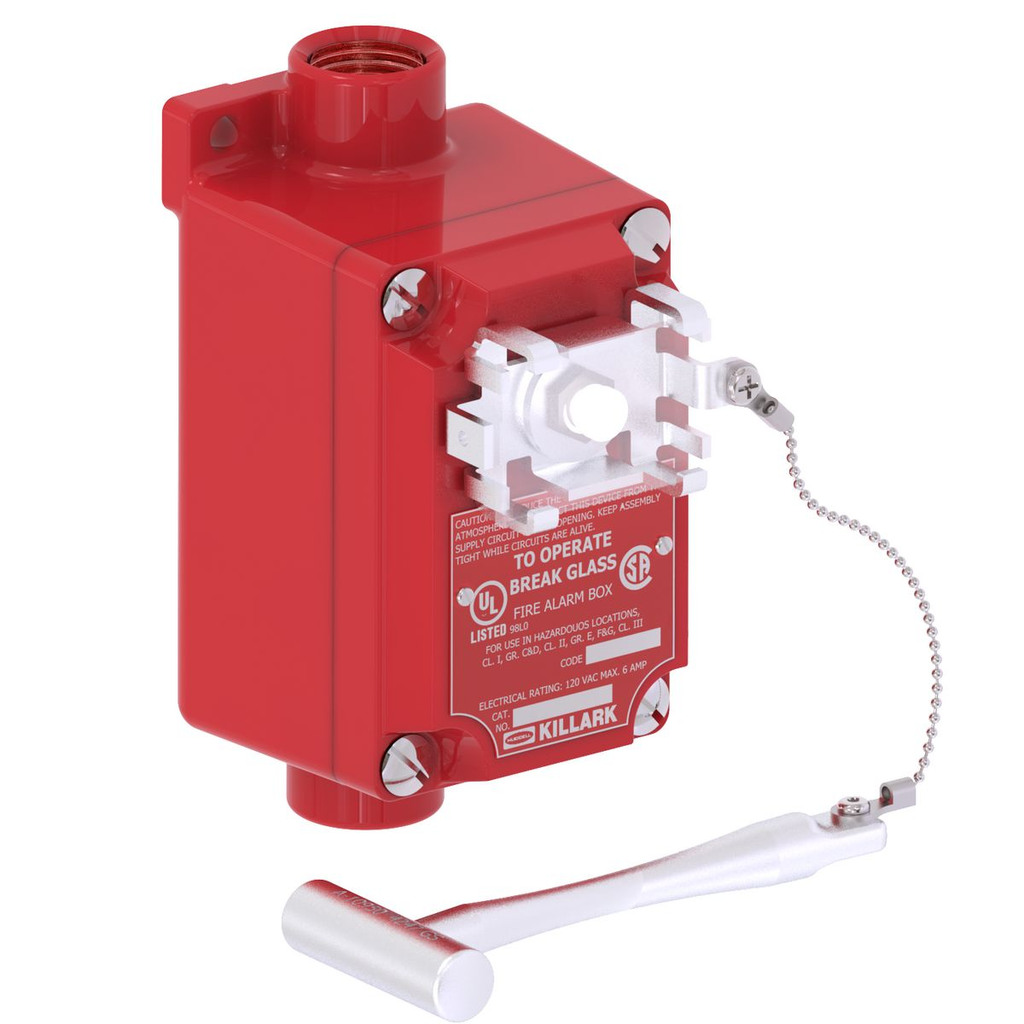

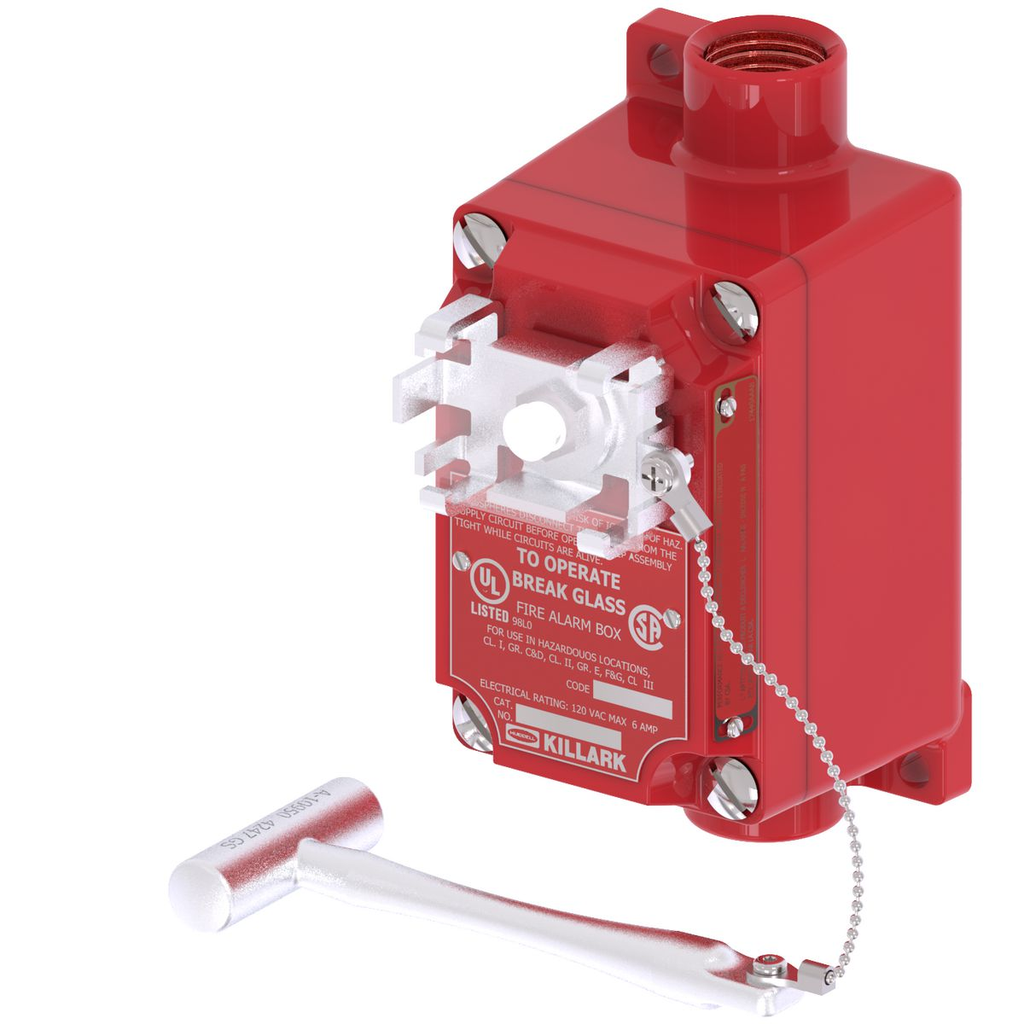

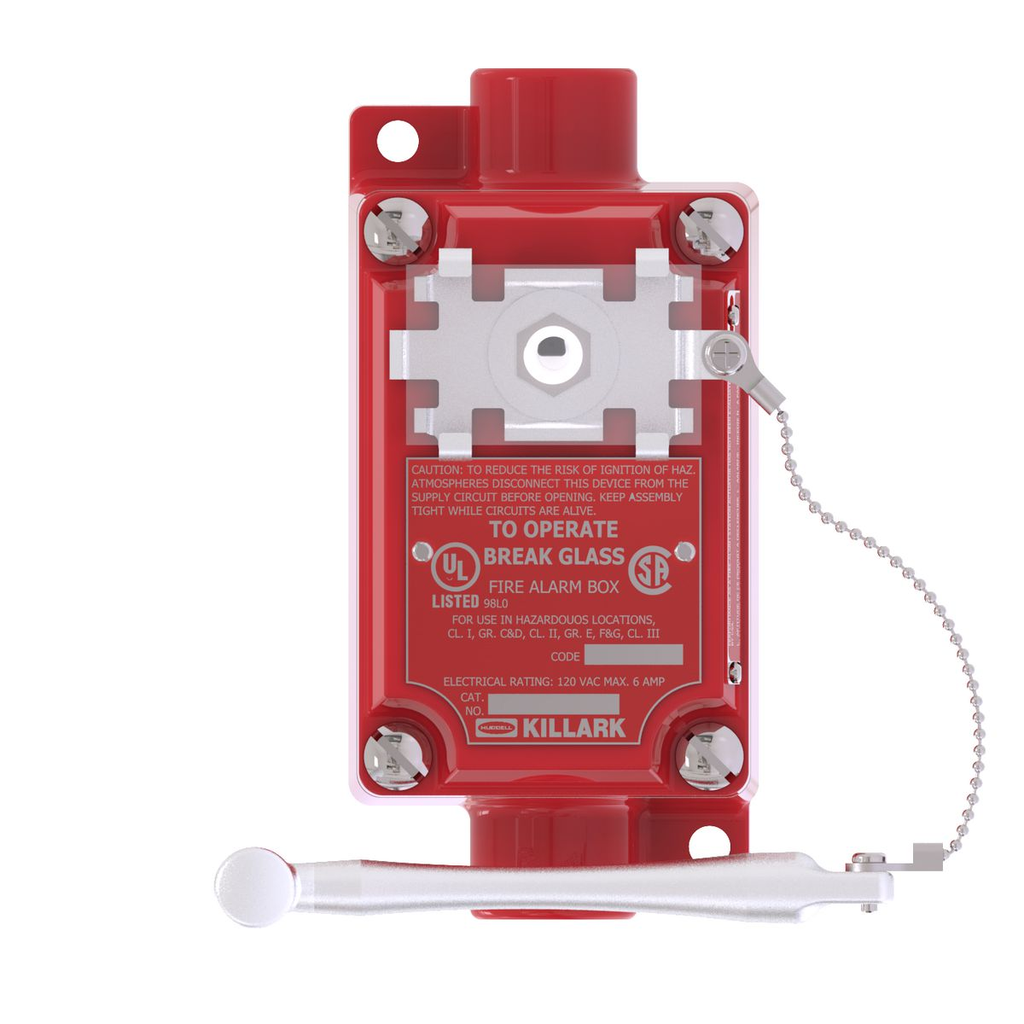

Killark XAS-53 XAS Series - Aluminum Feed-Thru Fire Alarm Station With Breaking-Glass Activation - Hub Size 3/4" Npt - 1NO/1NC Contact Rating

Manufacturer: Killark | Catalog # XAS-53 | Cooper Electric Part # 453741
$1,891.62/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
XAS Series - Aluminum Feed-Thru Fire Alarm Station With Breaking-Glass Activation - Hub Size 3/4 Inch Npt - 1NO/1NC Contact Rating

Technical Information

Action
SP
Actuator
Break glass
Amperage
10 Amp
Applications
For Hazardous Areas, Storage Areas and other Processing Facilities
Contact Configuration
1-NO/1-NC
Contact Rating
7200 VA (make), 720 VA (break), 10A cont. @ 600V AC; 2.5A cont. @ 600V DC.
Enclosure
Aluminum enclosure
Frequency
50/60 Hz
Material
Aluminum
Number of Poles
1-1 Pole
Size
6-27/64" H x 3-7/64" W x 4-1/16"
Type
Aluminum fire alarm station with breaking-glass activation
Voltage
600 VAC

Manufacturer Information

Brand
Killark Electric
Sub Brand
Killark

General Product Info

12-Digit UPC
783936880396
Color
Red
GTiN
00783936880396
Product Series
XAS
Product UPC
78393688039

Dimensions

Height
6-3/4 Inch
Length
8-1/4 Inch
Width
5.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Enclosure is made of copper free aluminum alloy
  • Conduit openings are 3/4 NPT feed through.
  • Red, textured powder epoxy paint finish is standard on box and cover to provide high visibility for alarm station.
  • Bilingual nameplates included per CSA requirement.
  • Internal ground screw is standard.
  • Breaking glass with provided hammer activates alarm.
  • Reset by replacing glass.
  • Killark XCS Series Fire Alarm Station for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.
