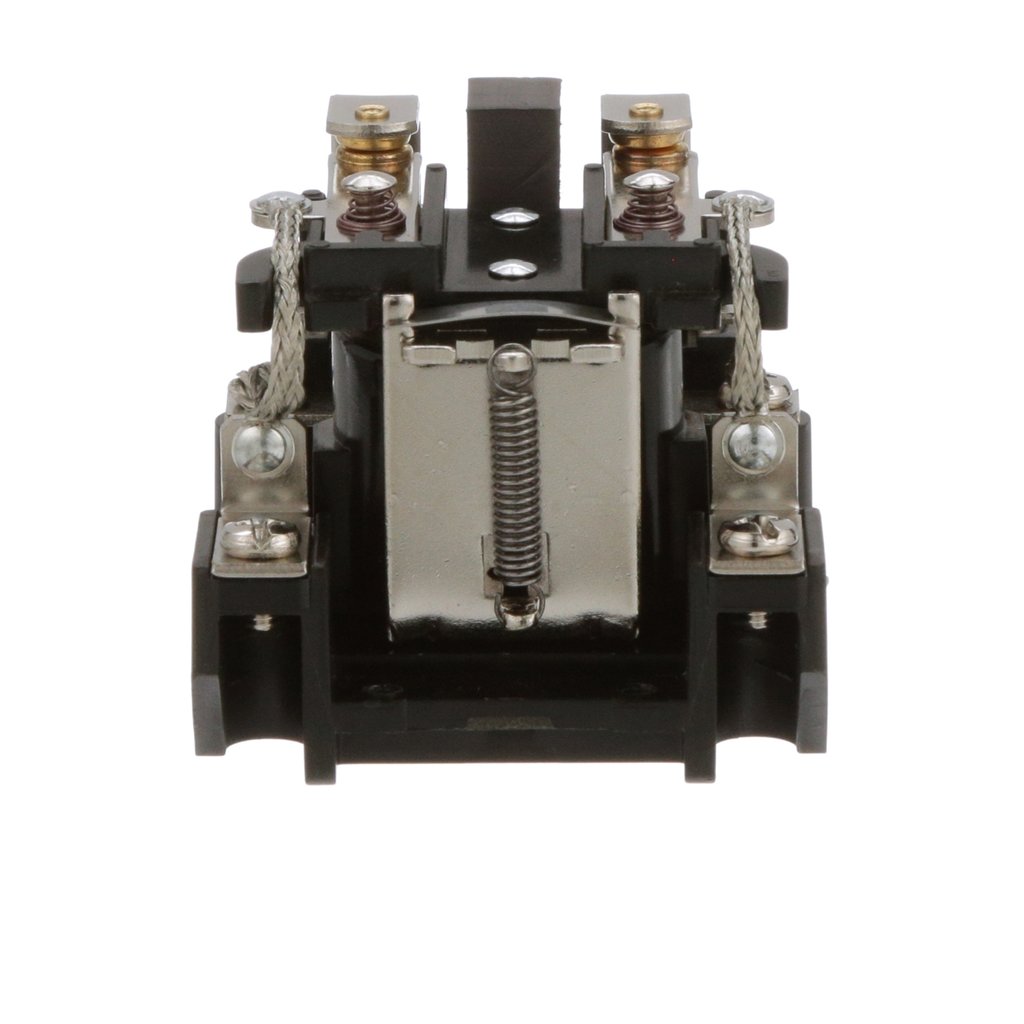

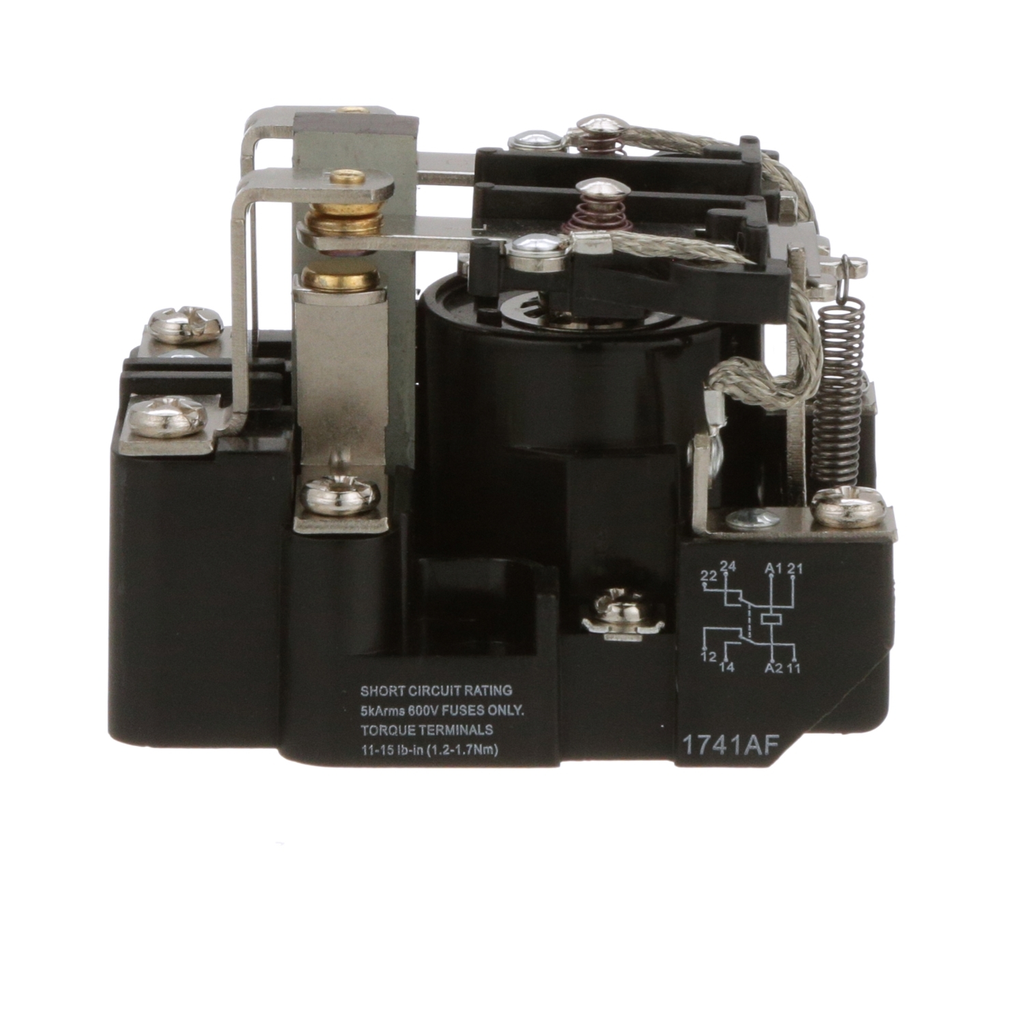

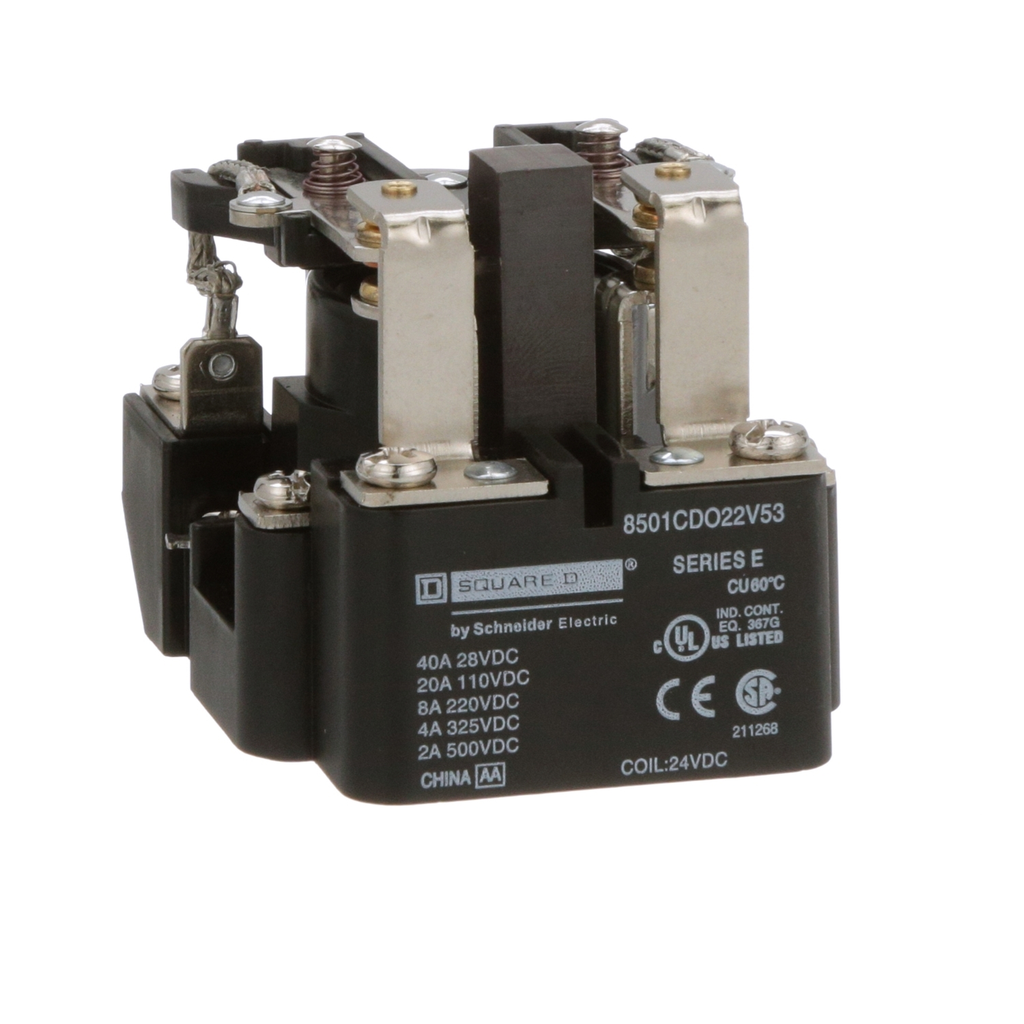

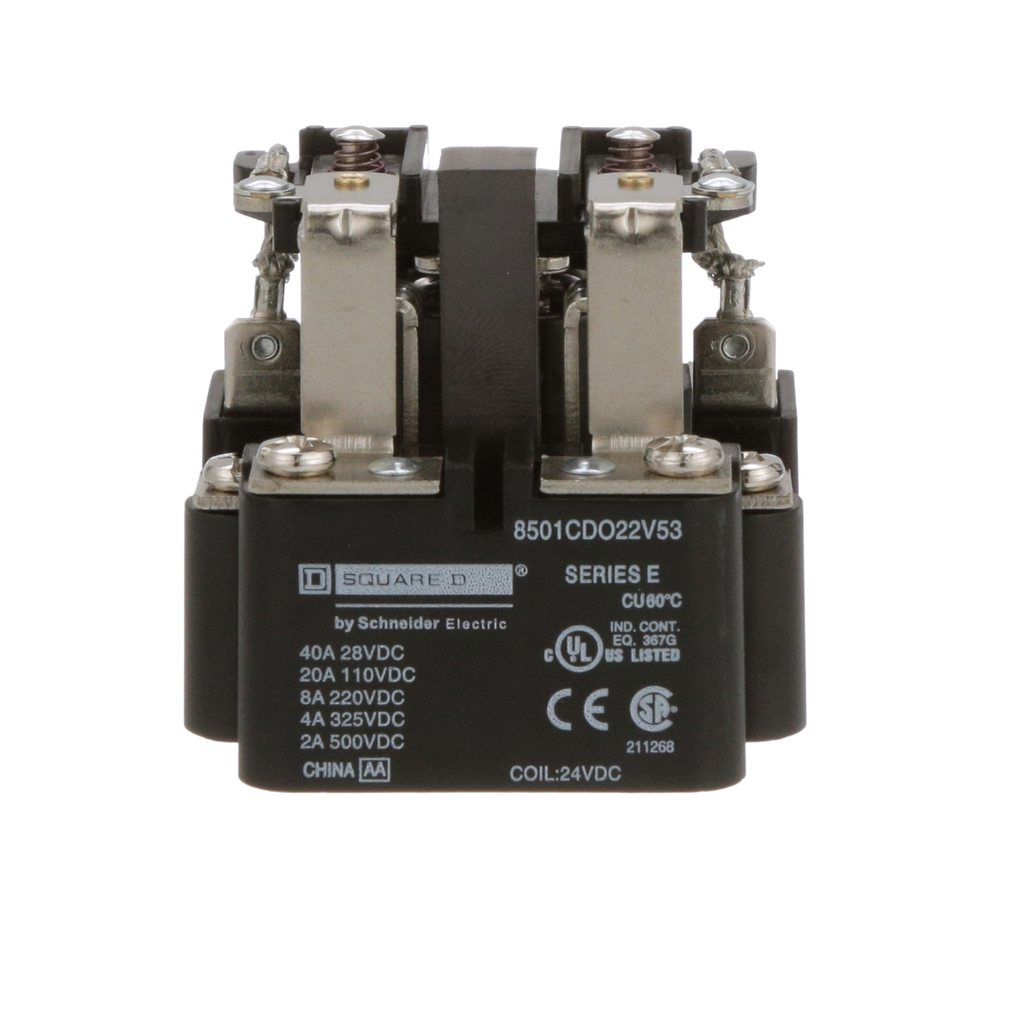

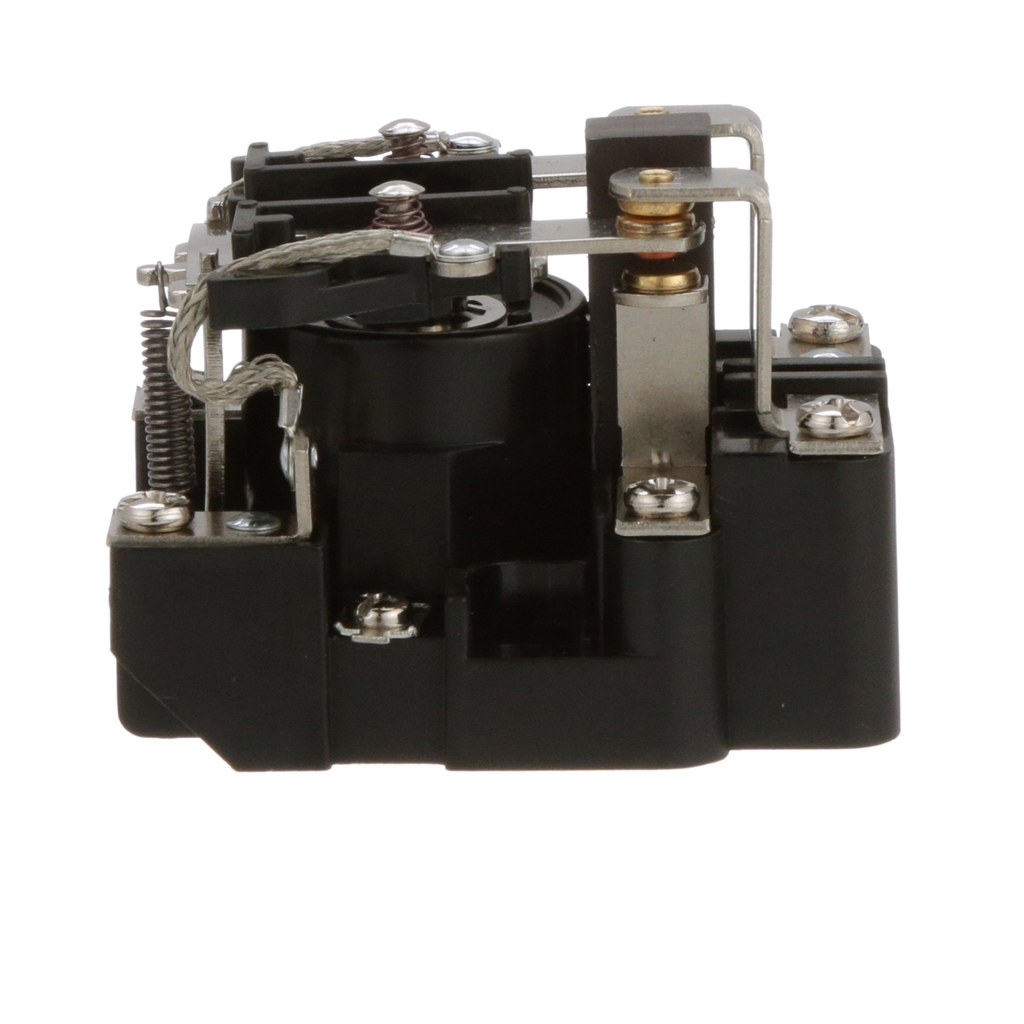

Square D 8501CDO22V53 24 VDC 30 Amp 2-Pole DPDT 2NO 2NC Panel Mount DC Operated Power Relay

Manufacturer: Square-D / Schneider | Catalog # 8501CDO22V53 | Cooper Electric Part # 448290
$121.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
8501C power relays are used to control VDC loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration for VDC loads with two normally open and two normally closed contacts. A variety of coil voltages are available. This relay has a 24 VDC nonreplaceable coil. Designed with heavy duty contacts that are rated for 20 A resistive rating at 110 VDC or 8 A resistive rating at 220 VDC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

Technical Information

Amperage
30 Amp
Applications
SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS.
Contact Configuration
2 NO/2 NC
Contact Rating
DC RATED
Line Rated Current
20 A
Number of Phases
1 Phase
Number of Poles
PANEL MOUNT
Operating Temperature
-22 TO 140 DEGREES F
Size
290
TC Connection
SCREW CLAMP
Type
Power relay

Manufacturer Information

Brand
Square D
Sub Brand
Type C

General Product Info

12-Digit UPC
785901059615
Environmental Conditions
-67 TO 131?F
GTiN
00785901059615
Product UPC
78590105961

Dimensions

Depth
2.53 Inch
Height
3.12 Inch
Warranty Length
18 mth
Width
2.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Listed File E78351 CCN NLDX
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
