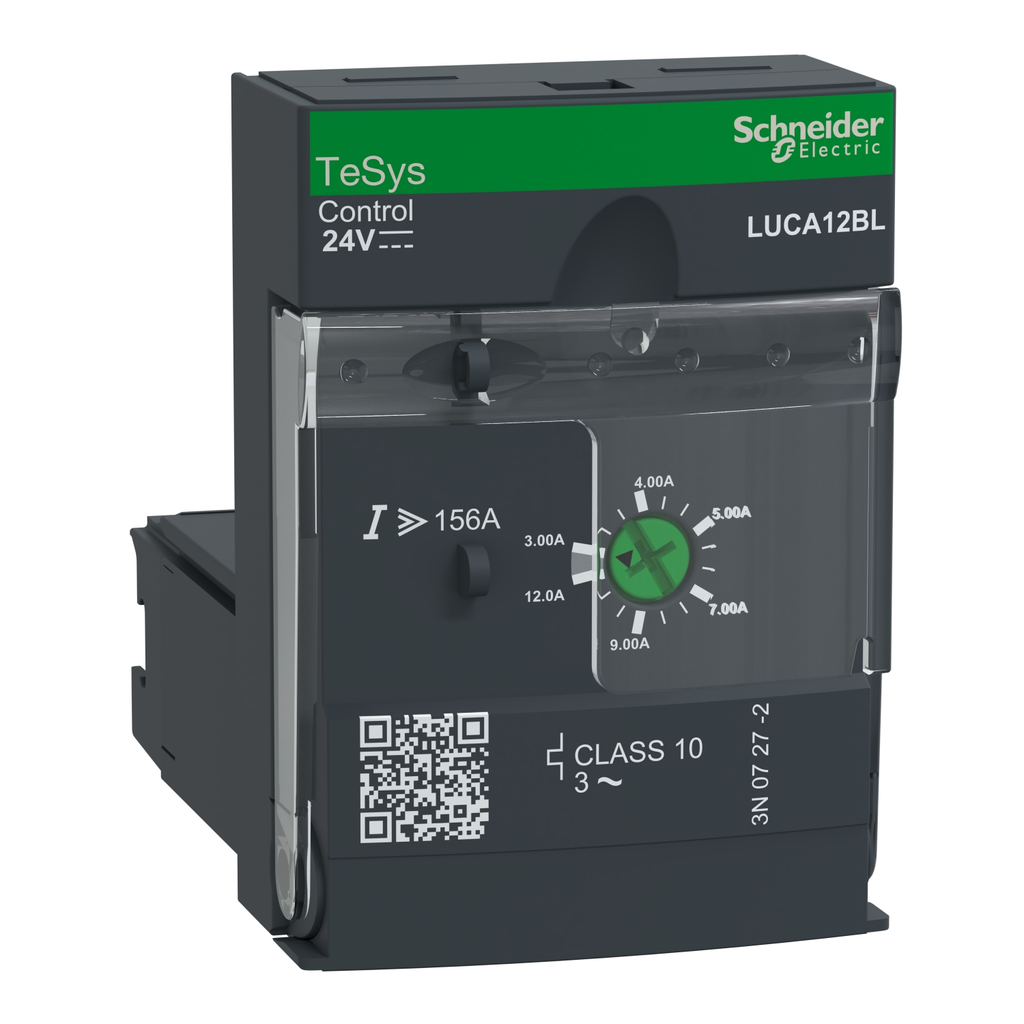

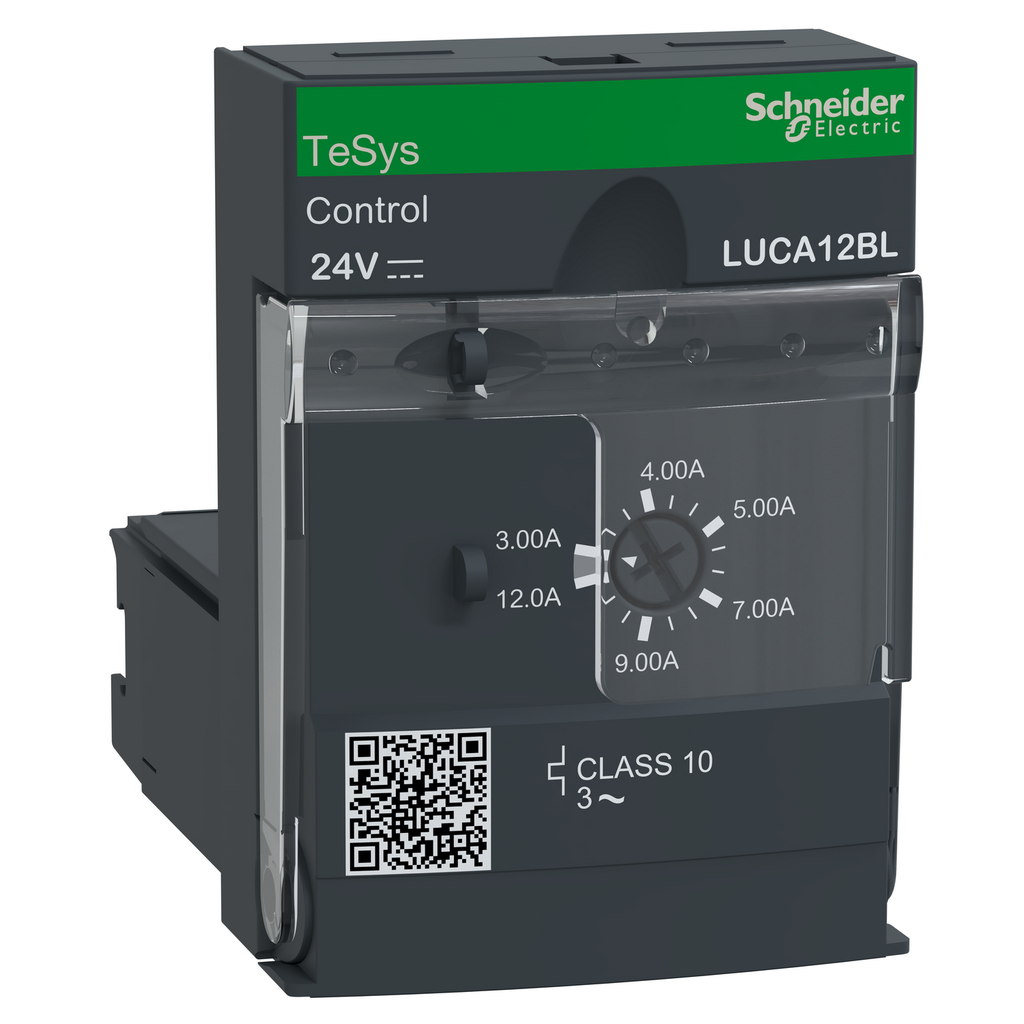

Square D LUCA12BL 24 VDC 3 to 12 Amp 3-Phase Class 10 Thermal Motor Starter Standard Control Unit

Manufacturer: Square-D / Schneider | Catalog # LUCA12BL | Cooper Electric Part # 446953
$142.56/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
ASILUFC5-LUFC00-ASILUFC51-LUFN..
Enclosure
IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1
Load Type
3-phase Motor Self-cooled
Net Weight
0.135 kg
Operating Temperature
-25...70 degrees C
Power Supply
24 VDC
Range
TeSys
Reset Type
SOLID STATE (CLASS 10)
Standard
CSA C22.2 No 60947-4-1, With Phase Barrier,EN 60947-6-2,IEC 60947-6-2,UL 60947-4-1, With Phase Barrier
Storage Temperature
-40-85 degrees C
Type
STANDARD CONTROL UNIT
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LUCA,TESYS,TESYS U

General Product Info

12-Digit UPC
389110363848
GTiN
03389110363845
Product UPC
78590122190
Weight
0.135 kg

Dimensions

Depth
2.36 in
Height
2.6 in
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

Certifications
ASEFA,ATEX,CCC,CE,CSA,EAC,Marine,UL
Country of Origin
France
Heat Dissipation
  • 2-2 W control circuit with LUB12
  • 3-3 W control circuit with LUB32
  • 3-3 W control circuit with LUB38
  • 3-3 W control circuit w
Load Type
  • 3-phase motor self-cooled
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=SB115121_3D-CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004721_3D-CAD&p_File_name=MCADPD0004721_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCA
Tripping Threshold
  • 14.2 x Ir +/- 20 %
IP Degree Of Protection
  • IP20 front panel and wired terminals IEC 60947-1
  • IP20 other faces IEC 60947-1
  • IP40 front panel out
Resistance To Radiated Fields
  • 10 V/m 3 IEC 61000-4-3
Typical Current Consumption
  • 130 mA 24 V DC I maximum while closing with LUB12
  • 220
Immunity To Voltage Dips
  • 70 % / 500 ms IEC 61000-4-11
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.009328981713992428
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.3007436369109041
  • 0.3 kg CO2 eq.
Standards
  • EN 60947-6-2
  • IEC 60947-6-2
  • UL 60947-4-1, with phase barrier
  • CSA C22.2 No 60947-4-1, with phase barrier
Operating Time
  • 35 ms opening with LUB12 control circuit
  • 35 ms opening with LUB32 control circuit
  • 35 ms op
UC Control Circuit Voltage
  • 24 V DC
Related Products
  • LUA1C20
  • LUA1C11
  • LUFN20
  • LUFN11
  • LUFN02
  • LUA8E20
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 1 kg CO2 eq.
  • 1.148045037650806
Protective Treatment
  • TH IEC 60068
UI Rated Insulation Voltage
  • 690 V IEC 60947-6-2
  • 600 V UL 60947-4-1
  • 600 V CSA C22.2 No 60947-4-1
Fixing Mode
  • plug-in (front face)
Vibration Resistance
  • 2 gn 5-300 Hz power poles open IEC 60068-2-6
  • 4 gn 5-300 Hz power poles closed IEC 60068-2-6
  • 4 gn 5-300 Hz power poles c
Immunity To Radioelectric Fields
  • 10 V IEC 61000-4-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
Thermal Overload Class
  • class 10 40-60 Hz -25-70 °C IEC 60947-6-2
  • class 10 40-60 Hz -25-70 °C UL 508
  • class 10 40-60 H
Fire Resistance
  • 960 °C parts supporting live components IEC 60695-2-12
  • 650 °C IEC 60695-2-12
Motor Power KW
  • 5.5 kW 400...440 V AC 50/60 Hz
  • 5.5 kW 500 V AC 50/60 Hz
  • 9 kW 690 V AC 50/60 Hz
  • 9 kW 69
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 10 kg CO2 eq.
  • 10.242554388924365
Resistance To Fast Transients
  • 2 kV 3 serial link IEC 61000-4-4
  • 4 kV 4 all circuits except for serial link IEC 61000-4-4
  • 4 kV 4 a
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
Auxiliaries
  • LUA1C20
  • LUA1C11
  • LUFN20
  • LUFN11
  • LUFN02
  • LUA8E20
Resistance To Electrostatic Discharge
  • 8 kV 3 in open air IEC 61000-4-2
  • 8 kV 4 on contact IEC 61000-4-2
  • 8 kV 4 on contact IEC 6100
Carbon Footprint Of The Distribution Phase A4
  • 0.06571233329736902
  • 0.1 kg CO2 eq.
Control Circuit Voltage Limits
  • 20...27 V DC 24 V in operation
  • 14.5 V DC 24 V drop-out
Safe Separation Of Circuit
  • 400 V SELV between the control and auxiliary circuits IEC 60947-1
  • 400 V SELV between the control or auxiliary circuit and
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Shock Resistance
  • 10 gn power poles open IEC 60068-2-27
  • 15 gn power poles closed IEC 60068-2-27
Product Compatibility
  • power base LUB12
  • power base LUB32
  • power base LUB38
  • power base LUB120
  • power base LUB320
  • power base LUB380
  • reversing contactor breaker LU2B12BL
  • reversi
UE Rated Operational Voltage
  • 690 V AC
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-6-2
