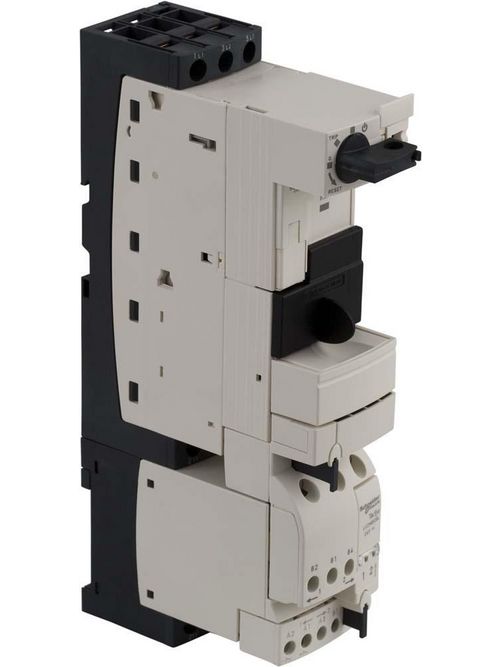

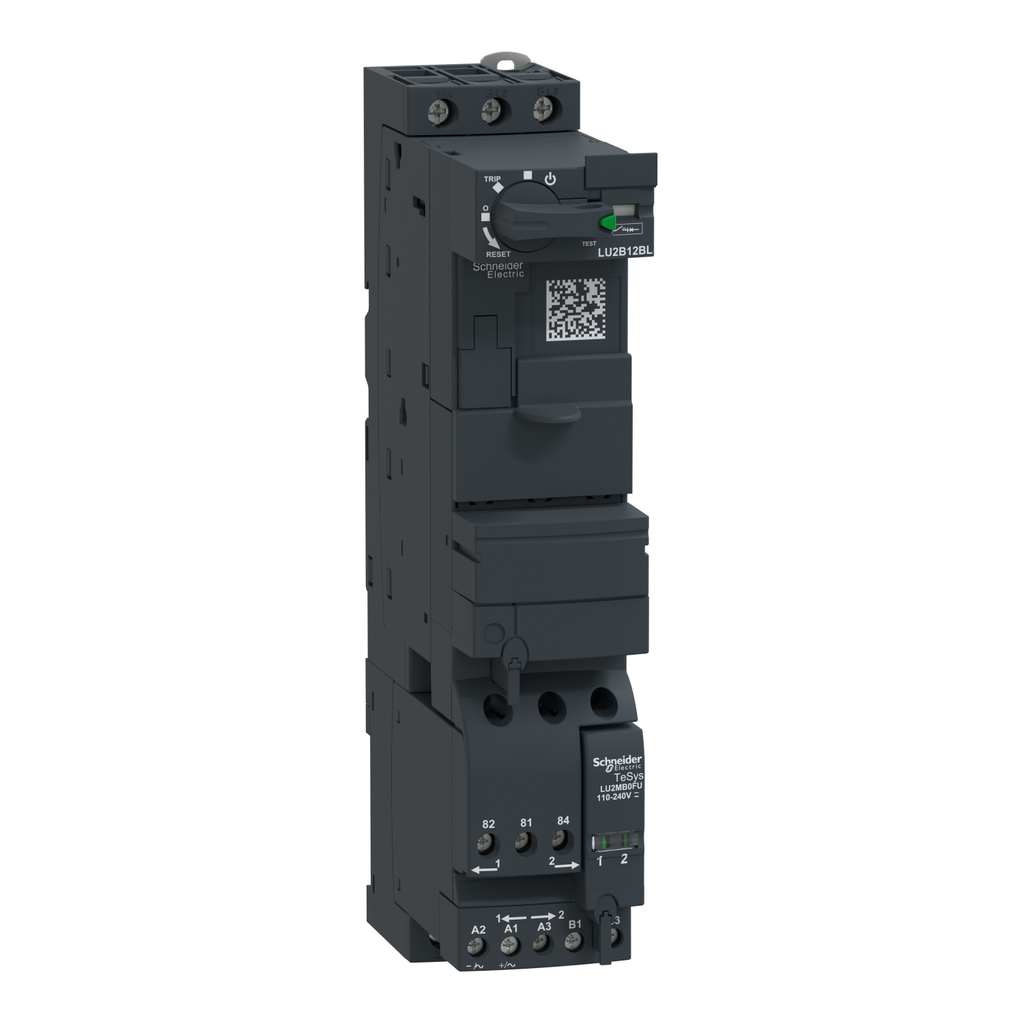

Square D LU2B12BL 200 to 600 VAC 12 Amp 3-Phase Screw Terminal Full Voltage Reversing Motor Starter Power Base

Manufacturer: Square-D / Schneider | Catalog # LU2B12BL | Cooper Electric Part # 446952
$683.54/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys U standard reversing power base, 3 poles (3NO), rated 12A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
12 Amp
Applications
MOTOR
Contact Configuration
1 NO + 1 NC
Enclosure
IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1
Net Weight
1.27 kg
Number of Poles
3 Pole
Operating Cycles
3600 cyc/h
Operating Temperature
-25...60 degrees C WITH LUCM--25...70 degrees C WITH LUCA, LUCB, LUCC, LUCD
Power Supply
24 VDC
Range
TeSys
Size
126 MM,224 MM,45 MM
Standard
CSA C22.2 No 60947-4-1, With Phase Barrier,EN 60947-6-2,IEC 60947-6-2,UL 60947-4-1, With Phase Barrier
Storage Temperature
-40-85 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.34-1.5 MMA FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.75-1.5 MMA FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.75-1.5 MMA RIGID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.34-1.5 MMA FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.75-1.5 MMA FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.75-1.5 MMA RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-10 MMA RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-6 MMA FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 2.5-10 MMA FLEXIBLE WITHOUT CABLE END
Type
REVERSING POWER BASE
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LU2B,TESYS,TESYS U

General Product Info

12-Digit UPC
389110362933
GTiN
03389110362930
Product UPC
78590151988
Weight
1.27 kg

Dimensions

Depth
126 mm
Height
224 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ASEFA,ATEX,CCC,CE,CSA,EAC,Marine,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LUA1C20
  • LUA1C11
  • LUFN20
  • LUFN11
  • LAD90
  • LUFN02
  • LUALB1
  • LUA8E20
  • GVAPA1
  • LU9APN22
  • GVAPR54
  • LU9APN21
  • GVAPB54
  • GVAPK12
  • GVAPL01
  • LU9APN24
  • GVAPR65
  • GVAPB65
Cross Sell Products
  • LUCA05BL
  • LUCA12BL
  • LUCA1XBL
  • LUCAX6BL
