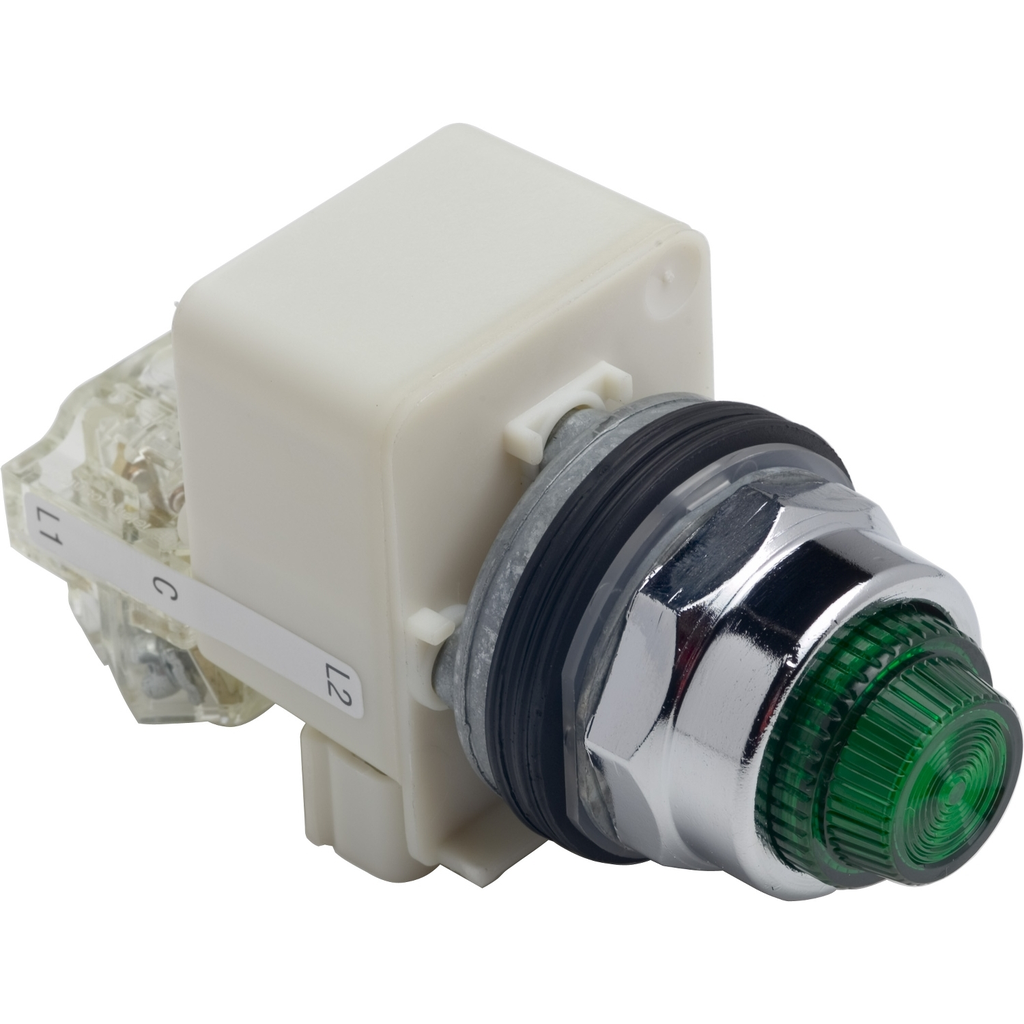

Square D 9001KT38LGG31 30.5 mm 120 VAC Green Lens Metal Bezel LED Push to Test Pilot Light

Manufacturer: Square-D / Schneider | Catalog # 9001KT38LGG31 | Cooper Electric Part # 443662
$217.19 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony 9001K, push-to-test illuminated green pilot light with integral LED and plastic fresnel is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This illuminated push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Technical Information

Amperage
0.55 Amp 125 V, DC-13, A600-Q600 NEMA
Applications
SIGNALLING
Base
BA 9s
Bezel Material
Metal
Contact Configuration
1 NO
Contact Material
Silver Alloy
Contact Rating
Standard
Lens Material
Polycarbonate
Lens Type
Fresnel
Light Source
LED
Net Weight
0.235 kg
Operating Temperature
-25-70 Adegrees C
Size
30 mm
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C 852,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Style
PUSH-TO-TEST
Type
Illuminated push to test push-button
Voltage
120 Volt AC/DC,120 Volt AC/DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001K

General Product Info

12-Digit UPC
785901036173
Color
Green
Environmental Conditions
NEMA 1/2/3/3R/4/6/12/13
Finish
Chromium
Fixture Type
LED (GREEN) 120V
GTiN
03389118039131
Product UPC
78590103617
Shape
Octagon
Weight
0.235 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
Features
  • Improved security thanks to finger-safe contact blocks and light modules
  • Robustness to withstand the harshest environments
  • Easy, secure mounting system
  • Automatic self-grounding operators without additional wiring
  • A large metal set of accessories to customize your product
  • Single screw Contact Block Fastening
  • Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product
  • High brightness for easy identification of function and operation mode, even in brightly lit environments
  • LED lighting: no more need for \"test lights\" control circuits in your cabinet
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • 9001KA1
  • 9001KA6
  • 9001KA2
  • 9001KA3
  • 9001KA4
  • 9001KA41
  • 9001KA5
  • 9001KA51
  • 9001KA52
  • 9001KA53
