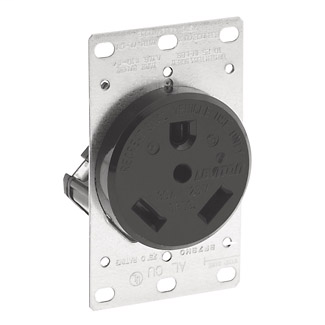

Product image for Leviton 7313 125 Volt 30 Amp 2-Pole 3-Wire NEMA TT-30R 2 Hp Black Nylon Grounding Flush Mount Straight Blade Receptacle
Email

Leviton 7313 125 Volt 30 Amp 2-Pole 3-Wire NEMA TT-30R 2 Hp Black Nylon Grounding Flush Mount Straight Blade Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 7313 | Cooper Electric Part # 4431
$2,130.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Built of durable thermoplastic, Leviton Power Receptacles . come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton's wide range of 2.15"-diameter wallplates and mounting hardware is included.

Technical Information

Amperage
30 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
14-6 AWG
Connection Type
Side Wire
Contact Material
Brass
Contact Type
Double-Wipe
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Flush
NEMA
TT-30R,WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Size
3.70 H x 2.25 W x 1.75 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Terminal Size
4 AWG
Type
Flush Mount,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477259658
Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477259658
Product UPC
07847725965

Dimensions

Warranty Length
10 yr
