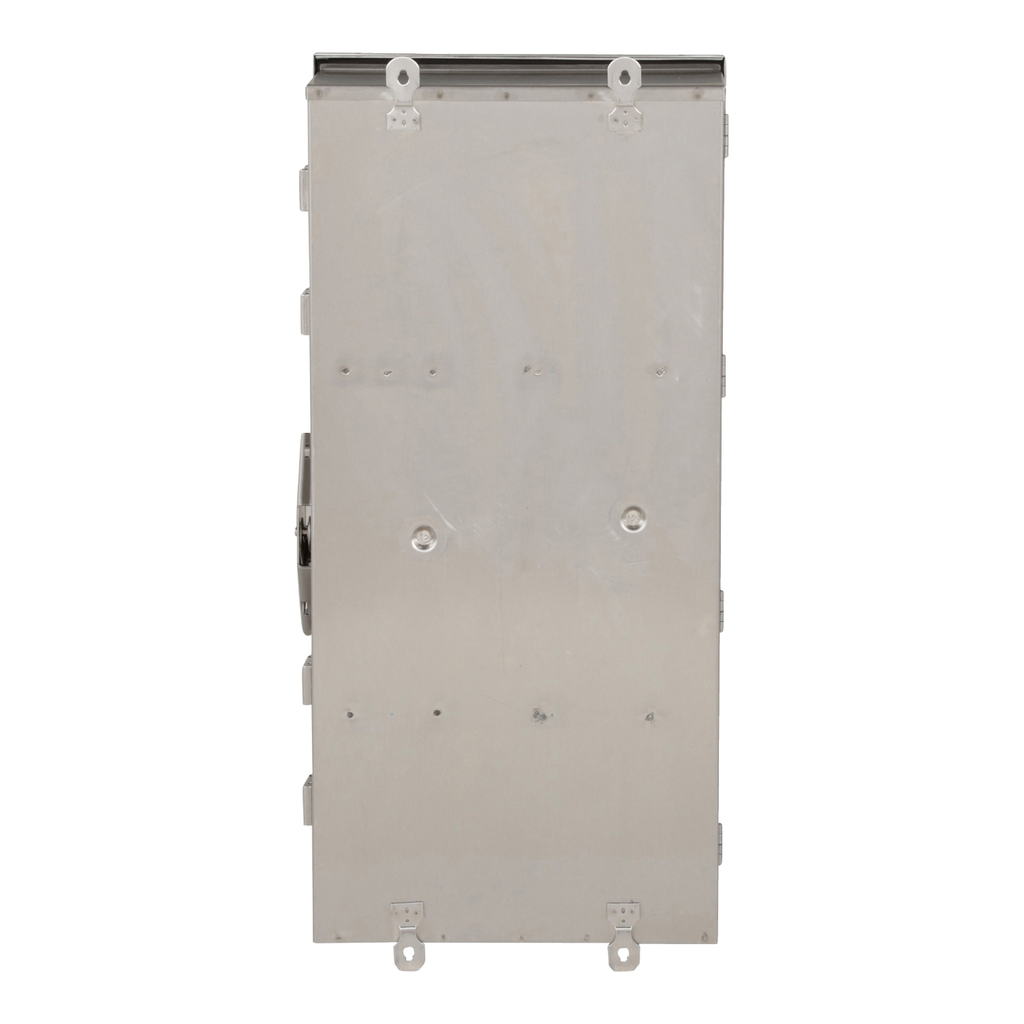

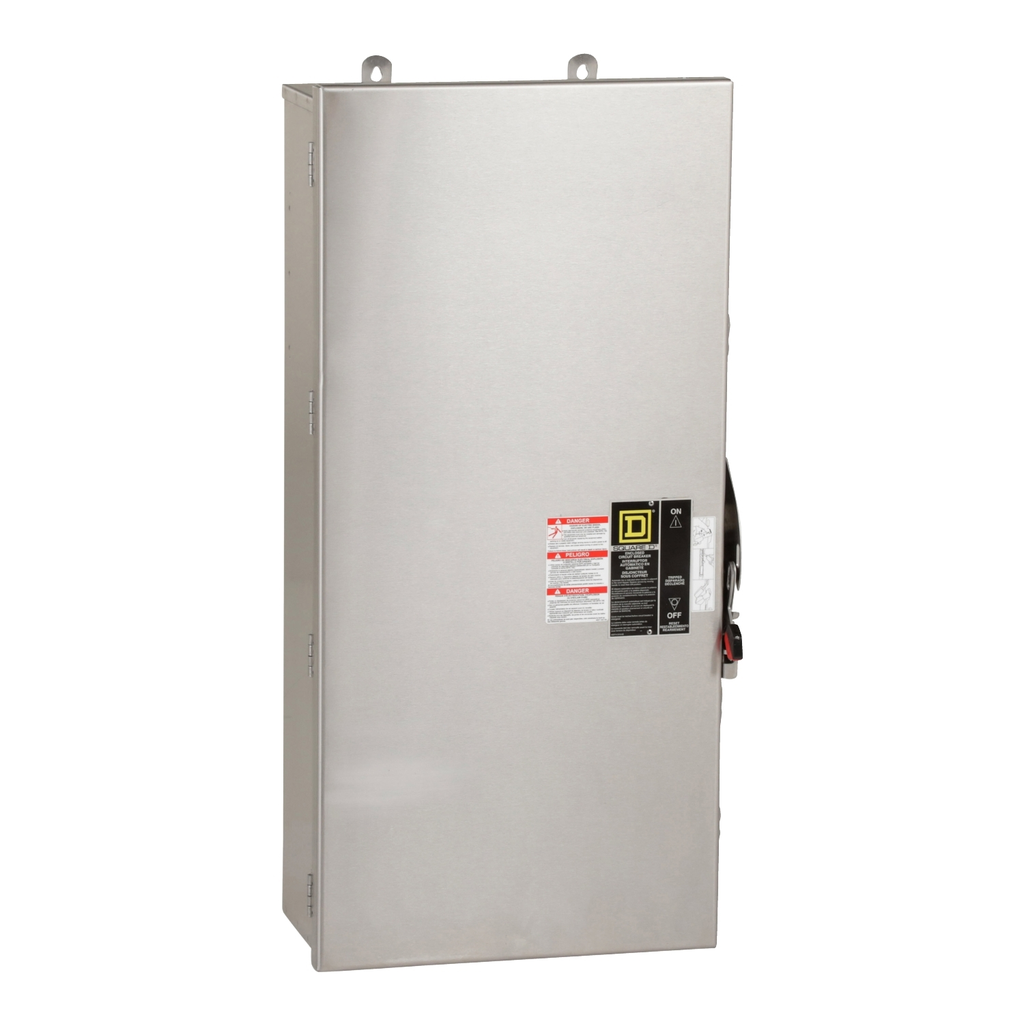

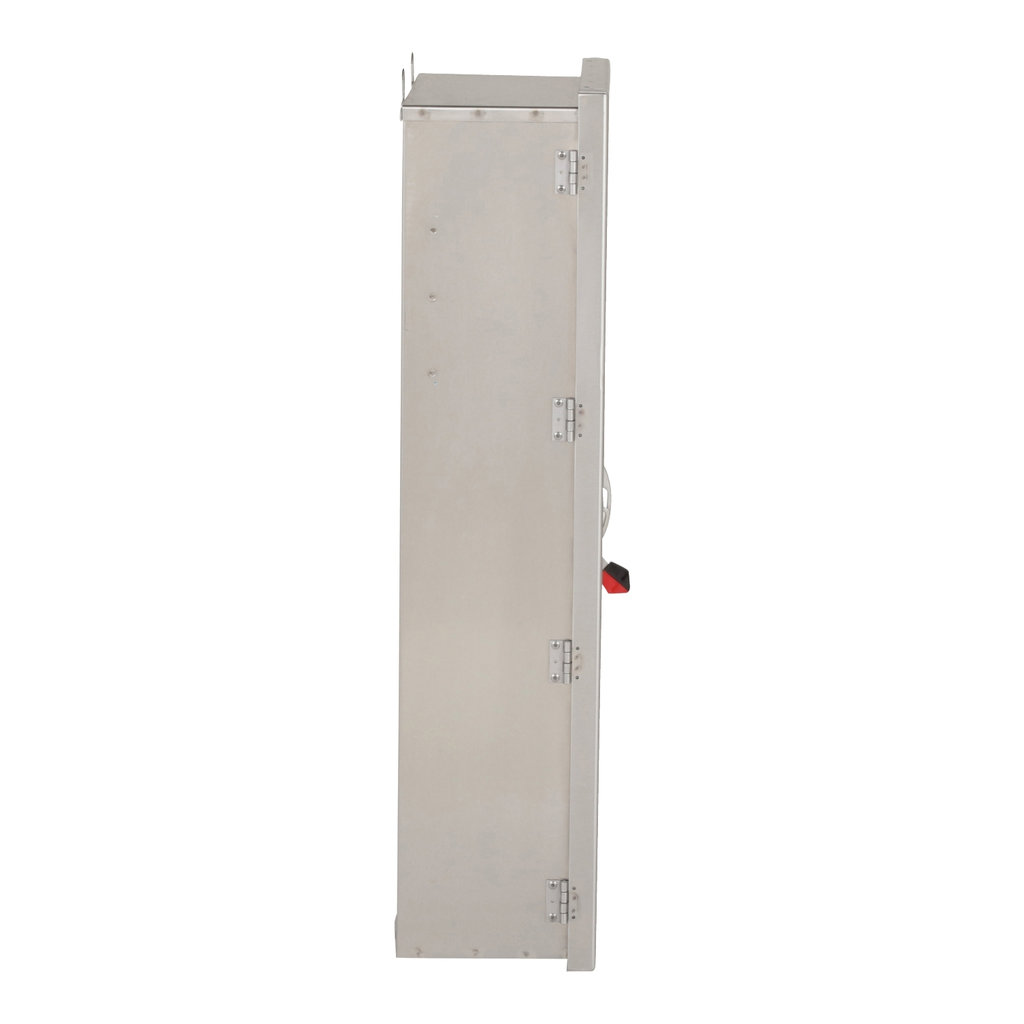

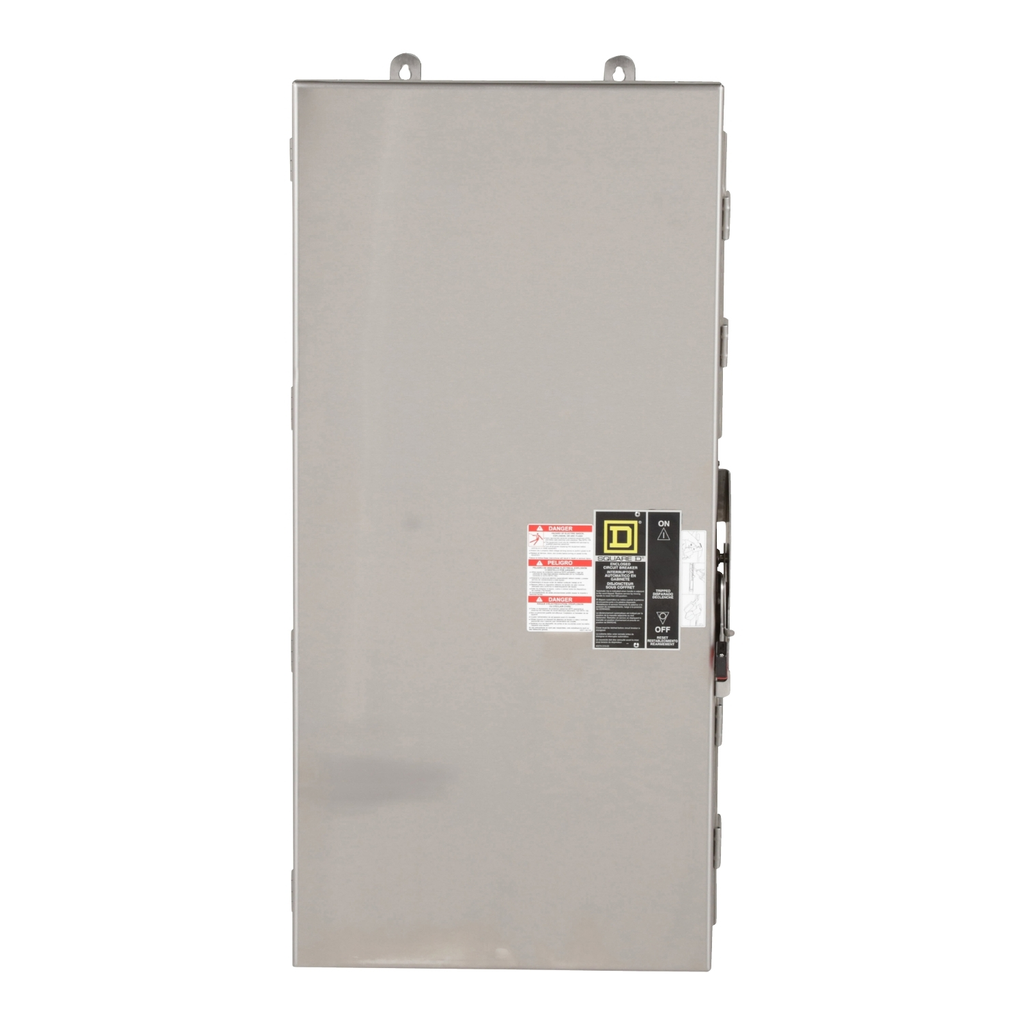

Square D M800DS 20-3/4 x 9-1/2 x 40-7/8 Inch NEMA 4/4X/5 Flush Mount Circuit Breaker Enclosure

Manufacturer: Square-D / Schneider | Catalog # M800DS | Cooper Electric Part # 442294
$10,125.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2
Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. The enclosure is suitable for service entrance equipment with neutral assembly AL800SN installed. Provides a dead front housing for PowerPact M and Power Pact P circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Encloser acceptes 80 % rated 2 or 3 poles 300A to 800A circuit breakers. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. This flush NEMA 3, 3R, 4, 4X, 5, and 12 enclosure has dimensions as Height of 40-7/8 inch, Width of 20-3/4 inch and Depth of 9-1/2 inch. Provides NEC 100 compliant sealable equipment. Meet the lock out/tag out requirements of OSHA 29 CFR 1910.147 subpart S. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Complies with NEC 240.30. cULus listed. Protect breaker from physical damage. Allow breaker operation without removing cover

Technical Information

Amperage
800 Amp
Circuit Breaker Type
MGL,MJL,PGL,PJL,PKL,PLL
Current
800 Amp
Enclosure
STAINLESS STEEL
Enclosure Material
Stainless Steel
Line Rated Current
300-800 A
Net Weight
40.37 kg
Number of Poles
2P,3 Pole
Size
NEMA 4
Trip Range
300...800 A
Type
MGL-MJL-PGL-PJL-PKL-PLL

Manufacturer Information

Brand
Square D
Sub Brand
SQUARE D

General Product Info

12-Digit UPC
785901669890
GTiN
00785901669890
Product UPC
78590166989
Weight
40.37 kg

Dimensions

Depth
241.3 mm
Height
40.83 in
Length
241.3 mm
Warranty Length
18 mth
Width
20.75 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Features
  • PowerPacT M circuit breaker enclosure 300 to 800A rated
  • NEMA 4, 4X, and 5 (NEMA Type 304 stainless steel) indoor/outdoor, watertight, dust-tight, corrosionresistant enclosure
  • Enclosure assepts MGL, MJL. PGL, PJL, PKL, PLL 2 and 3 poles circuit breakers
  • The short circuit current rating of the enclosed circuit breaker is equal to the rating of the circuit breaker installed
  • Circuit breakers are ordered and shipped separately for field installation
  • The enclosures are not compatible with earth-leakage or ground-fault modules.
  • M-frame circuit breakers with MicroLogic trip units can be used with these enclosures with some limitations.
  • PowerPacT H Type 1, 3, 4X and 12 enclosures are UL Listed to UL489 and CSA C22.2 No.5
Accessory Products
  • AL800SN
