Thomas & Betts RC10-14FL 12-10 AWG Wire Range 1/4 Bolt Hole Yellow Insulated Nylon Locking Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # RC10-14FL | Cooper Electric Part # 440297
$273.08/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

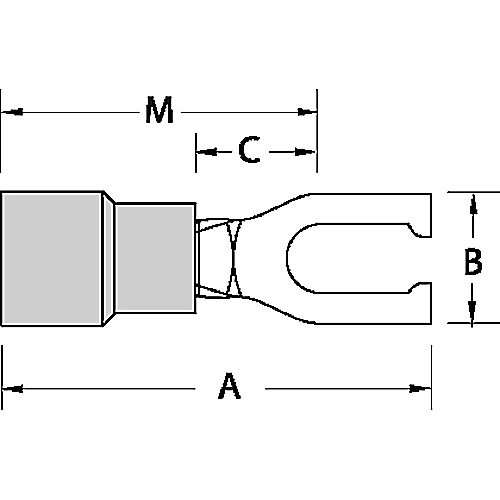

Nylon Insulated Locking Fork Terminal, Length 1.12 Inches, Width 0.50 Inch, Max Insulation 0.21, Bolt Hole 1/4 Inch, Wire Range #12-10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Locking
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210887548
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363933595
Product UPC
78621088754

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.3 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Certifications
  • CSA
  • UL
