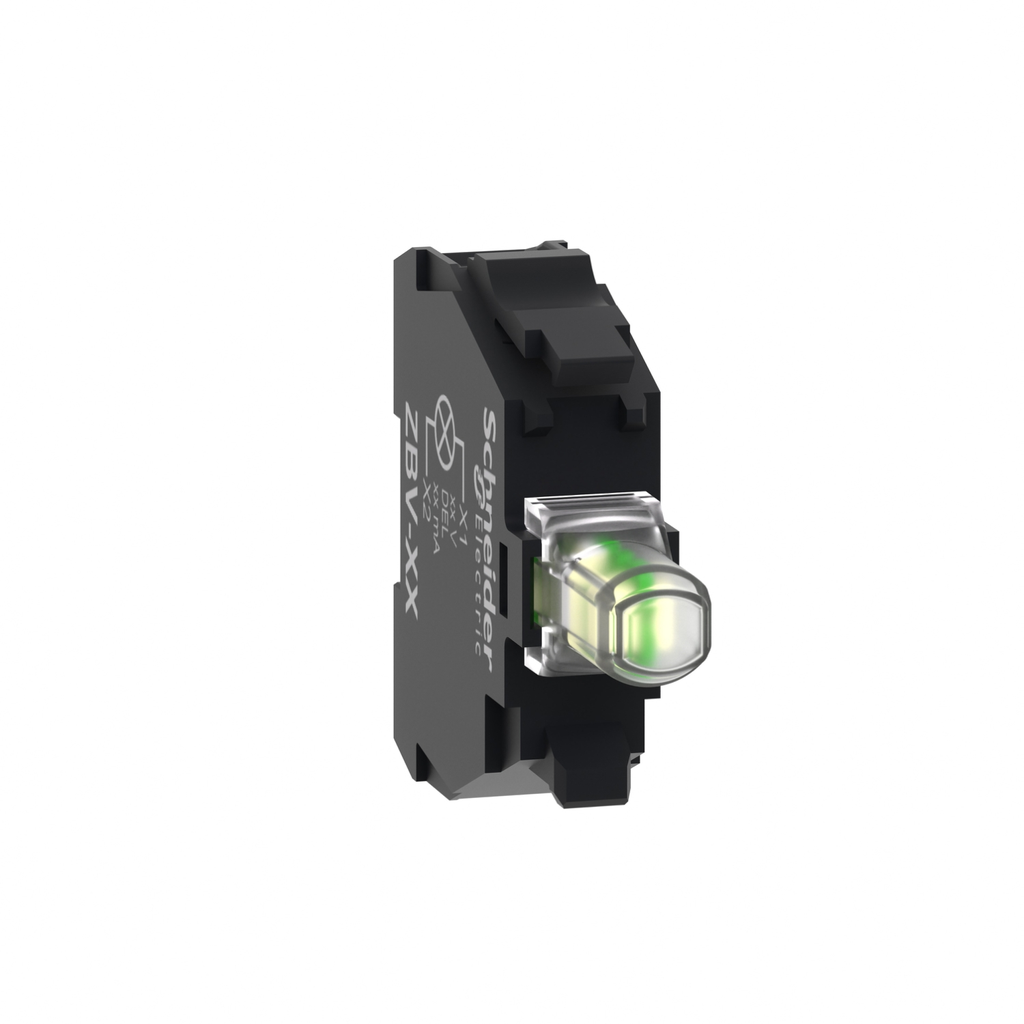

Square D ZBVB1 22 mm 24 Volt White Push Button Light Module

Manufacturer: Square-D / Schneider | Catalog # ZBVB1 | Cooper Electric Part # 440108
$38.22/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
9 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Harmony ZB, XB5 white Light block operates with a universal LED. It is supplied with 24V AC/DC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Technical Information

Applications
FOR INTEGRAL LED
Current
15 mA
Enclosure
IP20
Indicator
INTEGRAL LED,PROTECTED LED,WHITE
Light Source
Universal LED
Net Weight
0.017 kg
Operating Temperature
-25 TO +70 DEGREES C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
ELECTRICAL COMPONENT LIGHT MODULE
Voltage
24 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY

General Product Info

12-Digit UPC
389110089618
GTiN
03389110089615
Product UPC
78590135538
Weight
0.017 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB5AZ905
  • ZBY2101
  • ZBYLEG304001
  • ZBYP2101
Cross Sell Products
  • ZBVGM1T
  • ZB5AZ009
  • XB5AVB1
