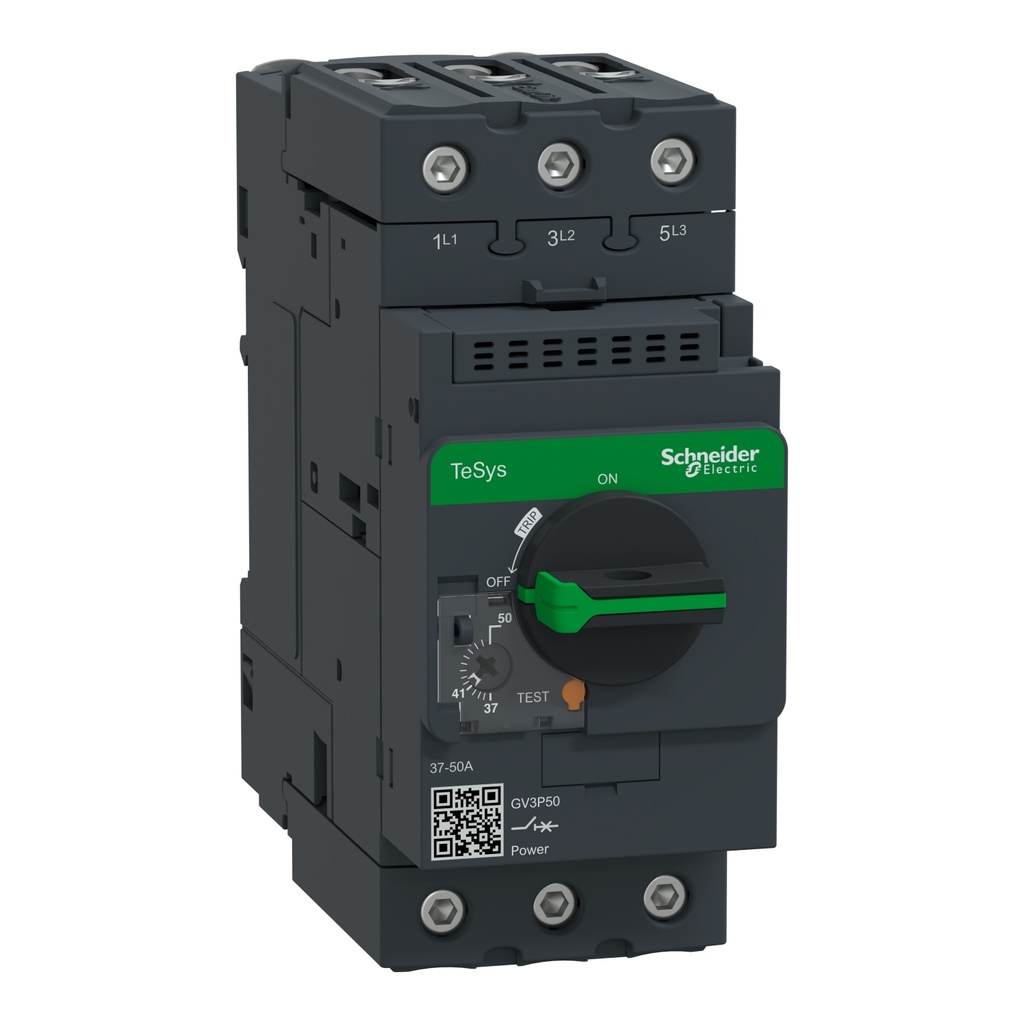

Square D GV3P50 600 VAC 50 Amp 3-Pole Manual Motor Starter

Manufacturer: Square-D / Schneider | Catalog # GV3P50 | Cooper Electric Part # 439915
$496.51 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens monday 7:00am et
5 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Spec Sheet
The GV3 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV3PE controls motors with full load currents up to 65 amperes. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 37 ampere to 50 ampere. This device has EVERLINK terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
50 Amp
Applications
MOTOR
Control Type
Rotary knob
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
50 A
Net Weight
0.96 kg
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Range
TeSys
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 37A TO 50A
Size
132 MM,136 MM,55 MM
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-2,EN/IEC 60947-4-1,UL 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA SOLID- EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA FLEXIBLE WITHOUT CABLE END- EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA FLEXIBLE WITH CABLE END
Trip Point
700-700 A
Type
CIRCUIT BREAKER
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GV3P,TESYS,TESYS GV3

General Product Info

12-Digit UPC
338911940543
Color
Gray
GTiN
03389119405409
Product UPC
78590159069
Weight
0.96 kg

Dimensions

Depth
136 mm
Height
5.2 in
Warranty Length
18 mth
Width
2.17 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,ATEX,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),UKCA,UL
Country of Origin
France
Features
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Sturdy and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
