Square D XB6CW3B5B 16 mm 240 VAC 1.5 Amp 1NO 1NC Green Square Flush Return Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # GS1DU3 | Cooper Electric Part # 439911
$283.14/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

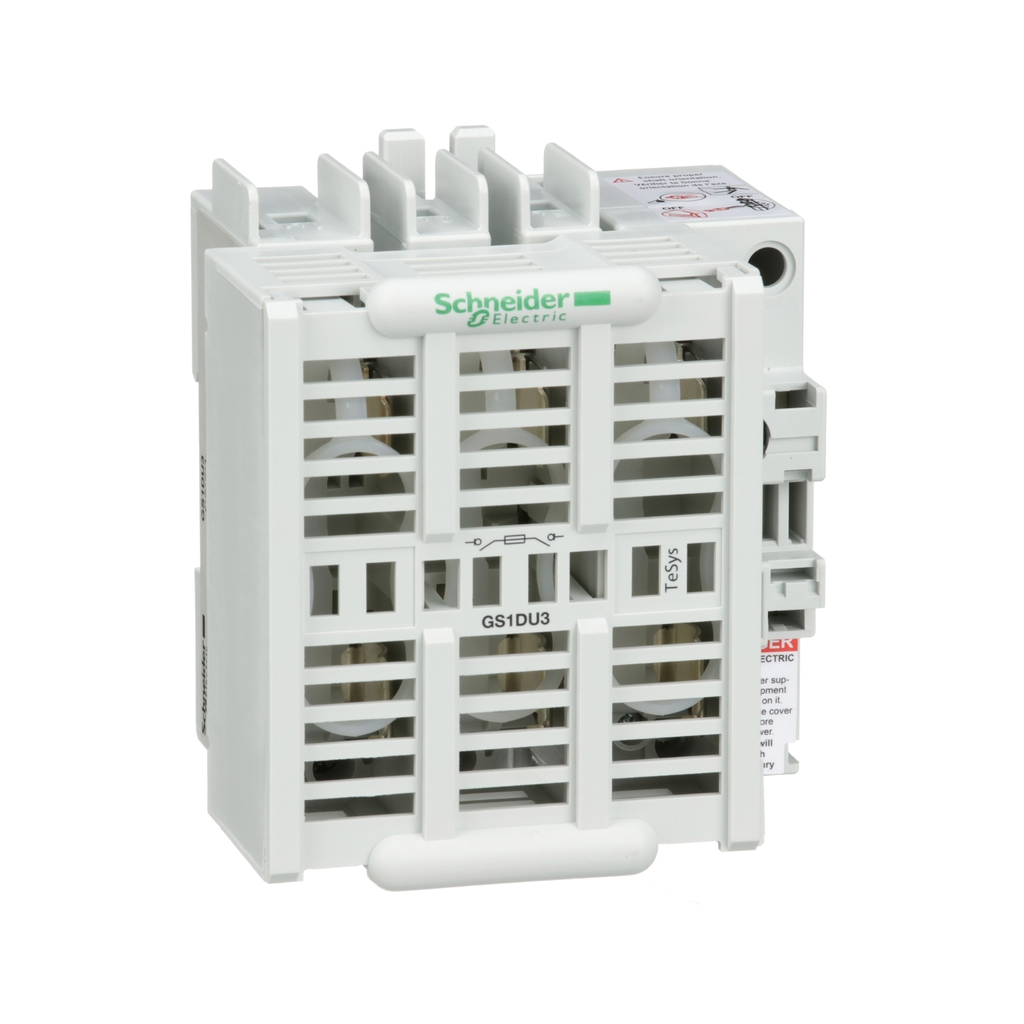

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class J fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Technical Information

Actuator
GS HANDLE OPERATOR (SOLD SEPARATELY)
Amperage
30 Amp
Applications
Protection
Contact Configuration
3 NO
Enclosure
IP20 WITH TERMINAL COVER CONFORMING TO IEC 60529
Fuse Type
UL
Indicator
VISIBLE ON/OFF
Net Weight
0.7 kg
Number of Poles
3 Pole
Operating Cycles
6k
Operating Temperature
-20-70 Adegrees C
Size
COMPACT
Standard
CSA C22.2 No 5,UL 489
Storage Temperature
-40-80 degrees C
TC Connection
LUGS (BUILT IN)
Trip Type
CLASS J FUSE
Type
Switch-disconnector-fuse
Voltage
600 VAC
Wattage
15 kW 400 Volt-18.5 kW 500 Volt-25 kW 690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GS1D;TeSys GS

General Product Info

12-Digit UPC
389110179548
GTiN
03389110179545
Product UPC
78590136752
Weight
0.7 kg

Dimensions

Depth
99 mm
Height
116 mm
Warranty Length
18 mth
Width
105 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ASEFA,LOVAG,LROS (Lloyds Register Of Shipping)
Country of Origin
France
