Square D BMXDRA1605 2 Amp 24 to 240 VAC 24 VDC Output AC/DC PLC Discrete Output Module

Manufacturer: Square-D / Schneider | Catalog # BMXDRA1605 | Cooper Electric Part # 439871
$468.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

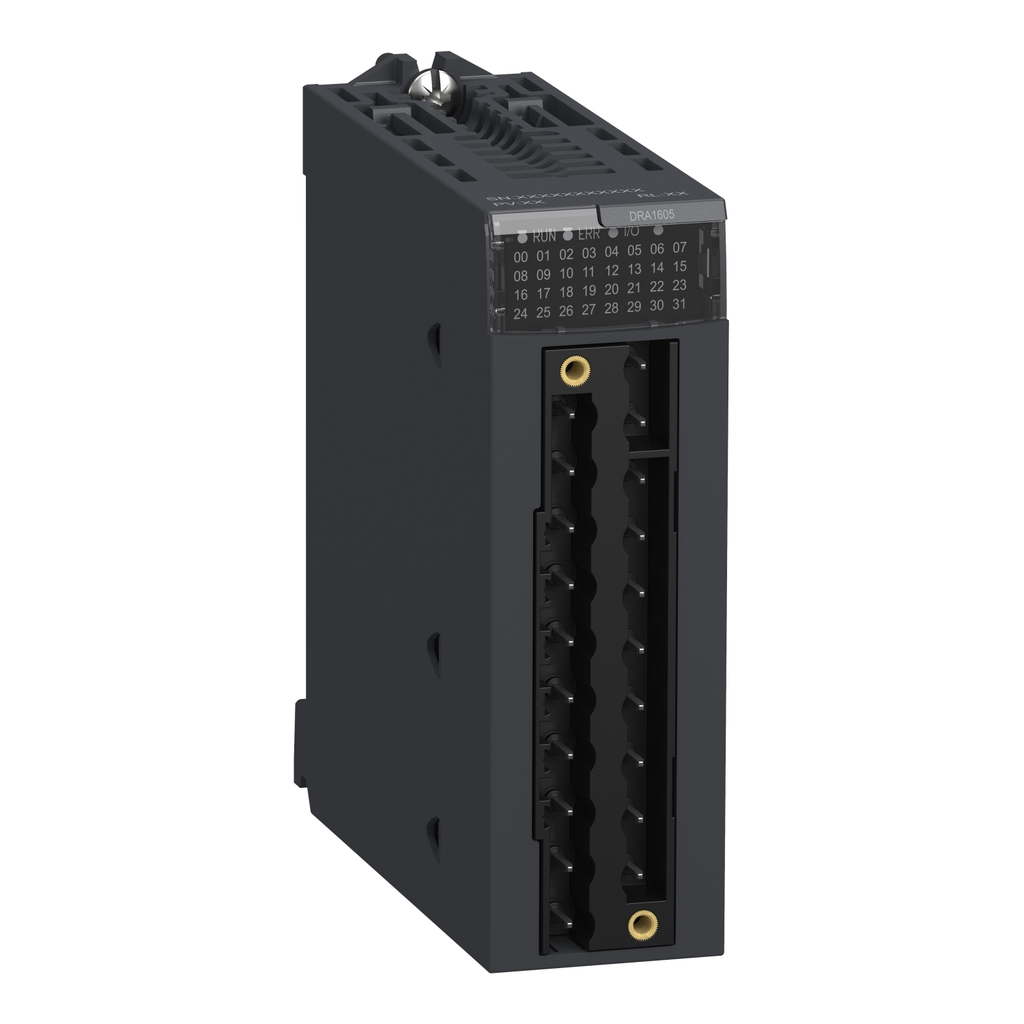

This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Technical Information

Applications
MODICON X80
Dielectric Strength
2000 V
Enclosure
IP20
Net Weight
0.15 kg
Operating Temperature
0-60 Adegrees C
Output Voltage
24/240VAC - 24VDC
Standard
UL 61010-2-201,EN/IEC 61131-2,CSA C22.2 No 61010-2-201,EN/IEC 61010-2-201
Storage Temperature
-40-85 degrees C
Type
Discrete output module
Wattage
3 Watt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
MODICON M340

General Product Info

12-Digit UPC
595863909237
GTiN
03595863909234
Product UPC
78590150169
Weight
0.15 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
EAC,RCM,UL,CSA,CE,Merchant Navy
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
